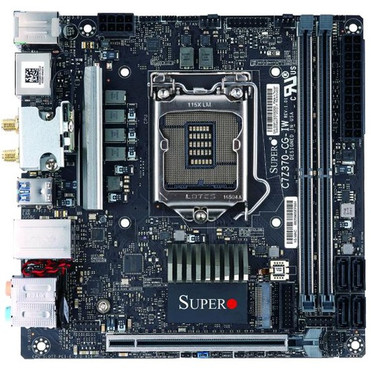

Supermicro C7Z370-CG-IW Desktop Motherboard - Intel Z370 Chipset - Socket H4 LGA-1151 - Mini ITX - Core i7 Processor Supported - 32 GB (MBD-C7Z370-CG-IW-O)
Write a Review
Supermicro
Supermicro C7Z370-CG-IW Desktop Motherboard - Intel Z370 Chipset - Socket H4 LGA-1151 - Mini ITX - Core i7 Processor Supported - 32 GB (MBD-C7Z370-CG-IW-O)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Delivery
UPS, FedEx, Purolator
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- C7Z370-CG-IW Desktop Motherboard
- 1 x IO Shield
- 1 x Quick Reference Guide
- 4 x SATA Cable
- 1 x Driver CD
- 1 x Metal Badge
- 1 x Cable Sticker
- 2 x WiFi+BT Antenna
Marketing Information:
8th Generation Core™ Processor Based Motherboards
Z370 chipset / Socket H4 Boards
Supermicro's single processor Socket H4 designs feature the Intel® Z370 chipset which support the Intel® 8th Generation Core™ i7/i5/i3 processor family. With outstanding features that include up to 64GB non-ECC fast DDR4 DRAM in 4 DIMMS, USB 3.0/USB 3.1, PCI-E 3.0 M.2, and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and multiple displays. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of multi-tasking, heavy loading applications.
Chipset Manufacturer: Intel
Chipset Model: Z370
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i7,Core i3,Core i5,Pentium,Celeron
Number of Memory Slots: 2
Memory Form Factor: UDIMM,DIMM
Maximum Memory Supported: 32 GB
Memory Speed Supported: 1866 MHz,2666 MHz,2400 MHz,2133 MHz,1600 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10,5,1,0
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes
Total Number of Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 4
Number of USB 3.1 Ports: 2
HDMI: Yes
DisplayPort: Yes
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 4
Number of Onboard USB 3.0 Ports: 2
Form Factor: Mini ITX
Width: 6.75" (171.45 mm)
Depth: 6.75" (171.45 mm)
Package Contents:
Limited Warranty: 1 Year
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-C7Z370-CG-IW-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | C7Z370-CG-IW |
| Product Name | C7Z370-CG-IW Desktop Motherboard |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z370 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i7,Core i3,Core i5,Pentium,Celeron |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | UDIMM,DIMM |
| Maximum Memory Supported | 32 GB |
| Memory Speed Supported | 1866 MHz,2666 MHz,2400 MHz,2133 MHz,1600 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10,5,1,0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 4 |
| Number of USB 3.1 Ports | 2 |
| HDMI | Yes |
| DisplayPort | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.75" (171.45 mm) |
| Depth | 6.75" (171.45 mm) |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
| Product | Supermicro SATA Cable - 2 ft SATA Data Transfer Cable - First End: 1 x Serial ATA - Second End: 1 x SATA - Red |
| SKU | CBL-0044L |
| Sale Price | $8.46 |
[/custom-options]
Warranty Information
1 Year
