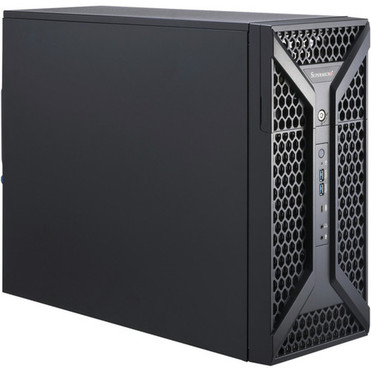

Supermicro SuperChassis 735D4-668B - Mid-tower - Black - 1 x 668 W - Power Supply Installed - ATX, Micro ATX, Enhanced Extended ATX - (CSE-735D4-668B)
Write a Review
Supermicro
Supermicro SuperChassis 735D4-668B - Mid-tower - Black - 1 x 668 W - Power Supply Installed - ATX, Micro ATX, Enhanced Extended ATX - (CSE-735D4-668B)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- SuperChassis 735D4-668B
- 1 x SC732 PS2 Power Supply Bracket
- 1 x Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF
- 1 x NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
- 1 x USB 3.0,INT,20 PIN/F TO 20PIN/F,60CM,30/26AWG
- 1 x USB3.2 Gen2X2 TypeC INT 20M to USB3.2 TypeC 24F,45CM,30AWG,R
- 1 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
- 1 x 12 CM x12 CM fan
- 2 x Front Bezel
- 1 x Front control board for CSE735,RoHS
- 1 x PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi
Motherboard Supported: ATX,Micro ATX,Enhanced Extended ATX
Number of Fans Supported: 2
Number of Fans Installed: 1
Installed Fan Size: 4.72" (120 mm)
Number of External 5.25" Bays: 2
Number of External 3.5" Bays: 1
Number of Internal 3.5" Bays: 4
Total Number of Expansion Slots: 7
Total Number of USB Ports: 3
Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Power Supply Installed: Yes
Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Power Supply Wattage: 668 W
Color Family: Black
Product Color: Black
Form Factor: Mid-tower
Height: 16.70" (424.18 mm)
Width: 7.60" (193.04 mm)
Depth: 21.10" (535.94 mm)
Weight (Approximate): 28 lb (12700.59 g)
Package Contents:
Limited Warranty: 1 Year
- Supports ATX motherboards to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- Mid-tower structure grants ample space for more hardware components
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | CSE-735D4-668B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperChassis |
| Product Model | 735D4-668B |
| Product Name | SuperChassis 735D4-668B |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | ATX,Micro ATX,Enhanced Extended ATX |
| Number of Fans Supported | 2 |
| Number of Fans Installed | 1 |
| Installed Fan Size | 4.72" (120 mm) |
| Bays | |
| Number of External 5.25" Bays | 2 |
| Number of External 3.5" Bays | 1 |
| Number of Internal 3.5" Bays | 4 |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Power Description | |
| Power Supply Installed | Yes |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Power Supply Wattage | 668 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mid-tower |
| Height | 16.70" (424.18 mm) |
| Width | 7.60" (193.04 mm) |
| Depth | 21.10" (535.94 mm) |
| Weight (Approximate) | 28 lb (12700.59 g) |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
| Product | Supermicro Power Supply - 668 W |
| SKU | PWS-668-PQ |
| Sale Price | $312.49 |
| Product | Supermicro Standard Power Cord - For Server Chassis - 120 V AC - 6 ft (1.83 m) Cord Length - NEMA 5-15P / IEC 60320 C13 - United States - 1 |
| SKU | CBL-PWCD-0160-IS |
| Sale Price | $16.82 |
| Product | Supermicro Cooling Fan - 4.72" (120 mm) Maximum Fan Diameter - 1 x Fan(s) - 1850 rpm |
| SKU | FAN-0124L4 |
| Sale Price | $32.34 |
| Product | Supermicro Drive Bay Adapter Internal - 4 x Total Bay - 4 x 2.5" Bay |
| SKU | MCP-220-73201-0N |
| Sale Price | $87.64 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
Warranty Information
1 Year
