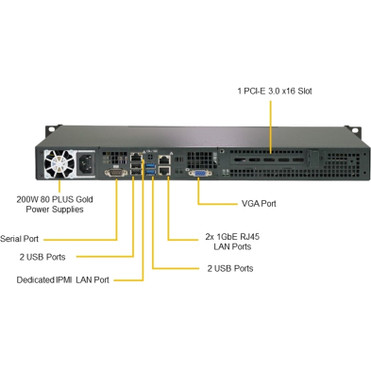

Supermicro SuperServer 5019C-L Server Barebone System - 1U Rack-mountable - Socket H4 LGA-1151 - 1 x Processor Support - Intel C242 - (SYS-5019C-L)
Write a Review
Supermicro
Supermicro SuperServer 5019C-L Server Barebone System - 1U Rack-mountable - Socket H4 LGA-1151 - 1 x Processor Support - Intel C242 - (SYS-5019C-L)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- SuperServer 5019C-L (Black)
- 1 x Super X11SCL-iF Motherboard
- 1 x 1U Chassis
- 1 x SATA,INT,ROUND,ST-ST,55CM,30AWG
- 2 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
- 1 x Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
- 1 x 5019C-L/FL Quick Reference Guide
- 1 x RSC-RR1U-E16 with PIC-E x16 output
- 1 x 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
Number of Processors Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Xeon,Core i3,Celeron,Pentium
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C242
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Total Number of Memory Slots: 2
Controller Type: Serial ATA/600
RAID Supported: Yes
Graphics Controller Model: AST2500
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 2
Number of 3.5" Bays: 2
Total Number of Expansion Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of SATA Interfaces: 4
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 200 W
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 17.20" (436.88 mm)
Depth: 9.80" (248.92 mm)
Weight (Approximate): 8 lb (3628.74 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- DDR4 SDRAM slot synchronizes signals for efficient data throughput, ensuring fast and reliable system performance
- Rack-mountable server barebone system maximizes space utilization while providing easy access to essential components
- Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Gigabit Ethernet port supports ultra-fast network speeds for smooth data transfer and improved system performance
- Connect USB-enabled devices via 4 USB ports for seamless data sharing and reliable performance
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5019C-L |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 5019C-L |
| Product Name | SuperServer 5019C-L (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Xeon,Core i3,Celeron,Pentium |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C242 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of 3.5" Bays | 2 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of SATA Interfaces | 4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 200 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 9.80" (248.92 mm) |
| Weight (Approximate) | 8 lb (3628.74 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Supermicro Retention Bracket |
| SKU | MCP-220-00044-0N |
| Sale Price | $9.17 |
| Product | Supermicro SATA Y-Splitter Power Adapter Cable - 15.24cm |
| SKU | CBL-0082L |
| Sale Price | $9.13 |
| Product | Supermicro AOC-STGN-I2S 10Gigabit Ethernet Card - PCI Express x8 - Low-profile - 10GBase-X - SFP+ - Plug-in Card |
| SKU | AOC-STGN-I2S |
| Sale Price | $418.46 |
| Product | Supermicro CPU Fan Adapter - 1 |
| SKU | MCP-320-81302-0B |
| Sale Price | $11.89 |
| Product | Supermicro SuperChassis 504-203B (Black) - Rack-mountable - Black - 1U - 1 x Bay - 1 x 200 W - Mini ITX Motherboard Supported - 1 x Internal 3.5" Bay - 1x Slot(s) |
| SKU | CSE-504-203B |
| Sale Price | $260.03 |
[/custom-options]
