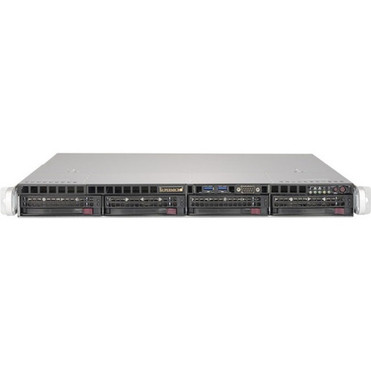

Supermicro SuperServer 5019S-MN4 Server Barebone System - 1U Rack-mountable - Socket H4 LGA-1151 - 1 x Processor Support - Intel C236 (SYS-5019S-MN4)
Write a Review
Supermicro
Supermicro SuperServer 5019S-MN4 Server Barebone System - 1U Rack-mountable - Socket H4 LGA-1151 - 1 x Processor Support - Intel C236 (SYS-5019S-MN4)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- SuperServer 5019S-MN4 (Black)
- 1 x Super X11SSH-LN4F Motherboard
- 1 x 1U Chassis
- 1 x SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
- 1 x 1U 4-Port 12Gbps Backplane Support 4x3.5 SAS/SAS HDD/SSD
- 1 x SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWG
- 1 x 8 pin to 8 pin round SGPIO cable, 40cm, 28AWG, pinout 1-1,RoHS/REACH
- 1 x Riser card bracket for SC812,813,813M,815,111,113,113M
- 1 x Black 2x USB3.0/COM port tray in slim FDD bay
- 1 x 5019S-MN4, QRG,HF,RoHS/REACH
- 1 x RSC-RR1U-E16 with PCI-E x16 output
- 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156
- 1 x 1U Single AC-DC 350W Platinum Level, multiple output power supply
Number of Processors Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Xeon,Core i3
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C236
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2133/PC4-17000
Total Number of Memory Slots: 4
Controller Type: Serial ATA/600
RAID Supported: Yes
Graphics Controller Model: AST2400
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 4
Number of 3.5" Bays: 4
Total Number of Expansion Slots: 2
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
Number of SATA Interfaces: 4
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 350 W
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 17.20" (436.88 mm)
Depth: 19.80" (502.92 mm)
Weight (Approximate): 17.60 lb (7983.23 g)
Package Contents:
Environmentally Friendly: Yes
Limited Warranty: 3 Year
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- DDR4 SDRAM slot supports high-speed operation with low power use, delivering optimal performance and thermal efficiency
- Rack-mountable server barebone system ensures clutter-free, organized setups with improved accessibility and efficiency
- Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Gigabit Ethernet port supports ultra-fast network speeds for smooth data transfer and improved system performance
- Featuring 4 USB ports to connect USB-compatible devices for enhanced flexibility and convenience
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5019S-MN4 |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 5019S-MN4 |
| Product Name | SuperServer 5019S-MN4 (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Xeon,Core i3 |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C236 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Total Number of Memory Slots | 4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2400 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x8 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Number of SATA Interfaces | 4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 350 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 19.80" (502.92 mm) |
| Weight (Approximate) | 17.60 lb (7983.23 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Supermicro Serial Data Transfer Cable - 1.3 ft (0.40 m) Serial Data Transfer Cable for Server - First End: 1 x 8-pin Serial - Second End: 1 x 8-pin Serial - 28 AWG - 1 |
| SKU | CBL-CDAT-0661 |
| Sale Price | $8.62 |
| Product | Supermicro Air Shroud - Mylar - Server, Chassis |
| SKU | MCP-310-19007-0N |
| Sale Price | $14.01 |
| Product | Supermicro 1U 4-Port 12Gbps Backplane Support 4x3.5 |
| SKU | BPN-SAS3-815TQ |
| Sale Price | $117.33 |
| Product | Supermicro Drive Bay Adapter - Black - 1 x Total Bay |
| SKU | MCP-220-00129-0B |
| Sale Price | $34.91 |
| Product | Supermicro RSC-RR1U-E16 PCI Express x16 Riser Card - 1 x PCI Express x16 - PCI Express x16 - 1U Chasis |
| SKU | RSC-RR1U-E16 |
| Sale Price | $26.95 |
[/custom-options]
