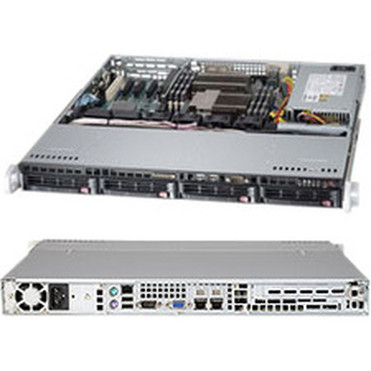

Supermicro SuperServer 6017B-MTLF Server Barebone System - 1U Rack-mountable - Socket B2 LGA-1356 - 2 x Processor Support - Intel C602 (SYS-6017B-MTLF)
Write a Review
Supermicro
Supermicro SuperServer 6017B-MTLF Server Barebone System - 1U Rack-mountable - Socket B2 LGA-1356 - 2 x Processor Support - Intel C602 (SYS-6017B-MTLF)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- SuperServer 6017B-MTLF (Black)
- 1 x Super X9DBL-iF Motherboard
- 1 x 1U Chassis
- 1 x BPN-SAS-815TQ-O-P
- 1 x 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
- 1 x SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWG
- 1 x RSC-RR1U-E16 with PCI-E x16 output
- 1 x 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP)
- 1 x 1U PASSIVE CPU HS FOR X8DTL MB (must be placed on FRONT CPU)
- 1 x 1U 350W MULTI OUTPUT 80PLUS GOLD PWS
- 1 x SC811, SC111, SC813M, SC113M, SC512F-280/350/410/520/600, SC513L-410/420, DP X9DBL ,X9 Mylar Air Shroud, 12"x 10" MB
Number of Processors Supported: 2
Processor Socket: Socket B2 LGA-1356
Processor Supported: Xeon
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C602
Maximum Memory Supported: 192 GB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1600/PC3-12800
Total Number of Memory Slots: 6
Controller Type: Serial ATA/600,Serial ATA/300
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Graphics Controller Model: G200eW
Ethernet Technology: Gigabit Ethernet,Fast Ethernet
Number of Total Expansion Bays: 4
Number of 3.5" Bays: 4
Total Number of Expansion Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 7
Network (RJ-45): Yes
Input Voltage: 110 V AC,220 V AC
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 350 W
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 17.20" (436.88 mm)
Depth: 19.80" (502.92 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- DDR3 SDRAM slot synchronizes signals for efficient data throughput, ensuring smooth and responsive performance
- Rack-mountable server barebone system maximizes space utilization while providing easy access to essential components
- Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Gigabit Ethernet increases data transfer capacity, delivering better overall performance for demanding network tasks
- Connect USB-enabled devices via 7 USB ports for seamless data sharing and reliable performance
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-6017B-MTLF |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 6017B-MTLF |
| Product Name | SuperServer 6017B-MTLF (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket B2 LGA-1356 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C602 |
| Memory | |
| Maximum Memory Supported | 192 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 6 |
| Controllers | |
| Controller Type | Serial ATA/600,Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Model | G200eW |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,Fast Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 350 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 19.80" (502.92 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Supermicro RSC-RR1U-E16 PCI Express x16 Riser Card - 1 x PCI Express x16 - PCI Express x16 - 1U Chasis |
| SKU | RSC-RR1U-E16 |
| Sale Price | $26.95 |
| Product | Supermicro PWS-351-1H ATX Power Supply - Rack-mountable - 110 V AC, 220 V AC Input - 3.3 V, 5 V, 12 V Output - 350 W - Active PFC - 1 +12V Rails - 90.4% Efficiency |
| SKU | PWS-351-1H |
| Sale Price | $181.23 |
[/custom-options]
