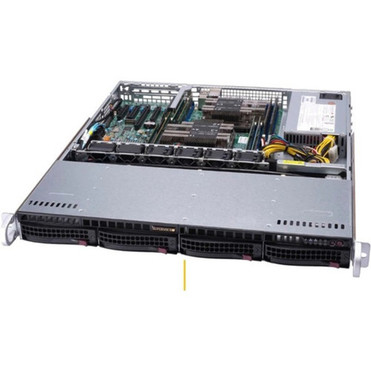

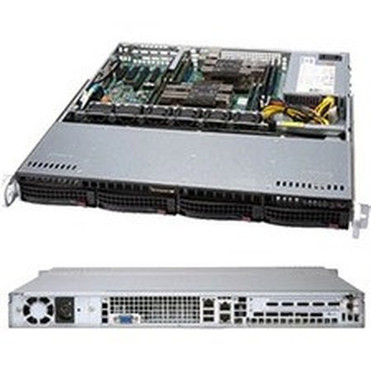

Supermicro SuperServer 6019P-MT Server Barebone System - 1U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support - Intel C621 - (SYS-6019P-MT)

Number of Processors Supported: 2

Processor Socket: Socket P LGA-3647

Processor Supported: Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze

64-bit Processing: Yes

Chipset Manufacturer: Intel

Chipset Model: C621

Maximum Memory Supported: 2 TB

Memory Technology: DDR4 SDRAM

Memory Standard: DDR4-2933/PC4-23466

Total Number of Memory Slots: 8

Controller Type: Serial ATA/600

RAID Supported: Yes

Graphics Controller Model: AST2500

Ethernet Technology: Gigabit Ethernet

Number of Total Expansion Bays: 4

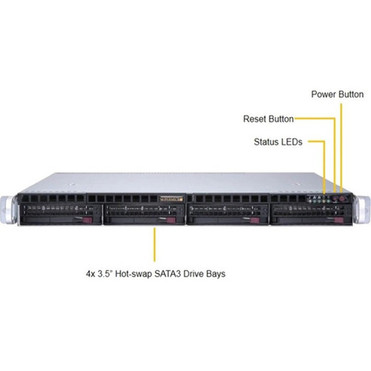

Number of 3.5" Bays: 4

Total Number of Expansion Slots: 1

Number of PCI Express x8 Slots: 1

Total Number of USB Ports: 2

Number of SATA Interfaces: 4

Input Voltage: 120 V AC,230 V AC

Number of Power Supplies Installed: 1

Maximum Power Supply Wattage: 500 W

Color Family: Black

Product Color: Black

Form Factor: Rack-mountable

Rack Height: 1U

Height: 1.70" (43.18 mm)

Width: 17.20" (436.88 mm)

Depth: 19.98" (507.49 mm)

Package Contents:

• SuperServer 6019P-MT (Black)
• 1 x Super X11DPL-i Motherboard
• 1 x 1U Chassis
• 1 x 1U 4-Port 12Gbps Backplane Support 4x3.5
• 1 x SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
• 1 x CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
• 1 x 1U I/O Shield for X11DPL-i with EMI Gasket
• 1 x SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12
• 1 x 6019P-MT/MTR Quick Reference Guide
• 1 x RSC-RR1U-E8
• 2 x 1U Passive Proprietary CPU Heat Sink for X11DPL Motherboard Equipped with a Square Retention Mechanism
• 1 x 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH
• 1 x CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
• 1 x Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
• 4 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
• 1 x Front control board dual color for SC815,SC813M (C)
• 4 x Black gen 5.5 hot-swap 3.5"; HDD tray
• 1 x 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
• 1 x 1U I/O Shield for X11DPL-i with EMI Gasket
• 1 x Set Outer rail, quick-release type, 25.6 to 33.05
• 1 x Set Inner rail, front, short, quick-release type
• 1 x Set Inner rail, extension (quick) for 1U 17.2
• 1 x Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12x10.15)
• 2 x Dummy fan 40x28mm

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 1 Year
