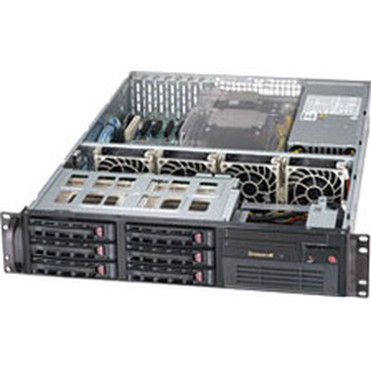

Supermicro SuperServer 6027B-TLF Server Barebone System - 2U Rack-mountable - Socket B2 LGA-1356 - 2 x Processor Support - Intel C602 (SYS-6027B-TLF)

Number of Processors Supported: 2

Processor Socket: Socket B2 LGA-1356

Processor Supported: Xeon

64-bit Processing: Yes

Chipset Manufacturer: Intel

Chipset Model: C602

Maximum Memory Supported: 192 GB

Memory Technology: DDR3 SDRAM

Memory Standard: DDR3-1600/PC3-12800

Total Number of Memory Slots: 6

Controller Type: Serial ATA/600,Serial ATA/300

RAID Supported: Yes

RAID Levels: 0, 1, 5, 10

Graphics Controller Model: G200eW

Ethernet Technology: Gigabit Ethernet,Fast Ethernet

Number of Total Expansion Bays: 7

Number of External 5.25" Bays: 1

Number of 3.5" Bays: 6

Total Number of Expansion Slots: 5

Number of PCI Express x8 Slots: 4

Number of PCI Express x16 Slots: 1

Total Number of USB Ports: 7

Network (RJ-45): Yes

Input Voltage: 110 V AC,220 V AC

Number of Power Supplies Installed: 1

Maximum Power Supply Wattage: 650 W

Color Family: Black

Product Color: Black

Form Factor: Rack-mountable

Rack Height: 2U

Height: 3.50" (88.90 mm)

Width: 16.80" (426.72 mm)

Depth: 25.50" (647.70 mm)

Package Contents:

• SuperServer 6027B-TLF (Black)
• 1 x Super X9DBL-iF Motherboard
• 1 x 2U Chassis
• 1 x 823 SAS TQ BACKPLANE W/O AMI 9072
• 6 x 48CM SATA ROUND S-S PBF. 26AWG
• 1 x 2U+ PASSIVE CPU HS FOR INTEL LGA1366 X8 MB
• 1 x 2U Active CPU HS for Socket R, B2, and Socket C32 Servers
• 1 x 2U 650W Multi Output Power Supply High Efficiency
• 1 x SC823/822 Intel DP X9, X8,H8 PC universal air shroud,12x13MB
• 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30
• 1 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
• 1 x mini-IDE to IDE adapter for slim DVD in SC811,812,822,823
• 4 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
• 1 x BLACK 5.25 DUMMY TRAY W/ RAIL IN SC822
• 6 x Black Hot-swap 3.5inch HDD Tray (w/o logo)
• 1 x 2U Chassis Rails. Outer slides extendable length: 28.25" to 33"
• 6 x 48CM SATA ROUND S-S PBF
• 1 x 823 SAS TQ BACKPLANE W/O AMI 9072
• 1 x 2U Active CPU HS for Socket R, B2, and Socket C32 Servers
• 1 x 2U+ PASSIVE CPU HS FOR INTEL LGA1366 X8 MB
• 1 x Socket B2 Mounting Bracket for SNK-P0048AP4 (Not Included in SNK-P0048AP4 by Default)
• 1 x Driver CD for X9 series
• 1 x Std I/O shield (3rd LAN + 4xLAN)
• BLACK PANASONIC SLIM DVD ROM SATA DRIVE
• 1CH internal 10P to 4P USB 2.0 cable for LCD,DVD, 70cm
• mini-SATA to USB adapter for slim DVD
• BLACK TEAC SLIM DVD ROM SATA DRIVE ROHS

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
