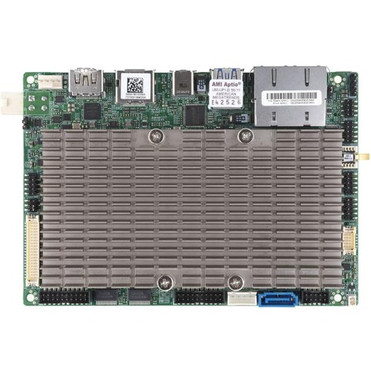

Supermicro X11SSN-L Single Board Computer Motherboard - Intel Chipset - Socket BGA-1356 - 3.5" SBC - Core i3 i3-7100U - 32 GB DDR4 RAM (MBD-X11SSN-L-B)
Write a Review
Supermicro
Supermicro X11SSN-L Single Board Computer Motherboard - Intel Chipset - Socket BGA-1356 - 3.5" SBC - Core i3 i3-7100U - 32 GB DDR4 RAM (MBD-X11SSN-L-B)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- X11SSN-L Single Board Computer Motherboard
- 1 x SATA Power Cable
- 1 x SATA Cable
- 1 x Passive Heatsink
Marketing Information:
7th Generation Intel® Core™ U-Series multi-chip package (MCP) of FCBGA1356 Boards
Supermicro's single processor Socket FCBGA1356 MCP feature the Intel® 7th Generation Core™ i7/i5/i3 processor ultra-low-power U-series. Outstanding features include up to 32GB of fast DDR4 DRAM in 2 DIMMS, USB 3.0/USB 3.1, M.2, Mini-PCIe, and SATA 3.0 (6Gbps) HDD. Support for next generation graphics controller, 4K HD graphics resolution and 3 displays with LVDS, HDMI and DP ports. Ideal for small, energy-efficient, reliability, manageability and long life applications.
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket BGA-1356
Integrated Processor Type: Core i3
Integrated Processor Model: i3-7100U
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 32 GB
Memory Speed Supported: 2133 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Model: HD Graphics
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 1
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 2
Number of USB 3.1 Ports: 1
HDMI: Yes
DisplayPort: Yes
Number of SATA Interfaces: 1
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.0 Ports: 2
Form Factor: 3.5" SBC
Width: 5.70" (144.78 mm)
Depth: 4" (101.60 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- 3.5" SBC style to support numerous features for constructing a reliable computing system
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X11SSN-L-B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X11SSN-L |
| Product Name | X11SSN-L Single Board Computer Motherboard |
| Packaged Quantity | 1 |
| Package Type | Bulk |
| Product Type | Single Board Computer Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket BGA-1356 |
| Integrated Processor | |
| Integrated Processor Type | Core i3 |
| Integrated Processor Model | i3-7100U |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| Maximum Memory Supported | 32 GB |
| Memory Speed Supported | 2133 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | HD Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.0 Ports | 2 |
| Number of USB 3.1 Ports | 1 |
| HDMI | Yes |
| DisplayPort | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 1 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | 3.5" SBC |
| Width | 5.70" (144.78 mm) |
| Depth | 4" (101.60 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
| Product | Supermicro DC Adapter - 60 W |
| SKU | MCP-250-10117-0N |
| Sale Price | $53.08 |
[/custom-options]
Warranty Information
1 Year
