Overview

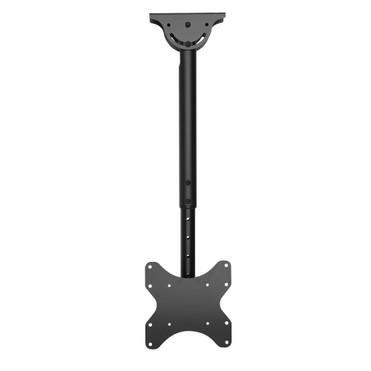

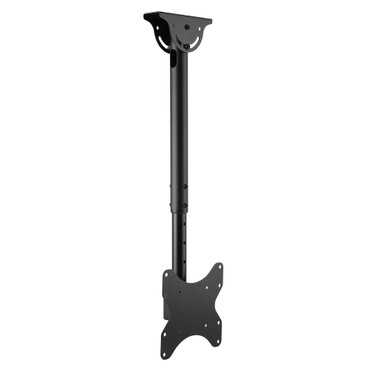

This ceiling mount bracket is designed to hold a 23 inch to 42 inch flat screen displays with a maximum VESA hole pattern of 200x200. It can be mounted on a flat or beveled ceiling. It offers a 25° downward tilt and a 180° swivel in either direction. It also has built in cable management. It is typically used in retail and commercial settings.
 |
Full Motion Makes any Seat, the Best Seat
The tilt and swivel motion of the mount allows you to position your TV to the best viewing angle, and provide the maximum viewing experience. This mount can be swivel to the left or right direction at 180° - and has a downward tilt of 25°.
Level Adjustment is Easy on the Eyes
The built-in level adjustment ensures perfect positioning for a pleasurable viewing experience. It offers 3° clockwise and counter-clockwise turning to ensure a perfect level.

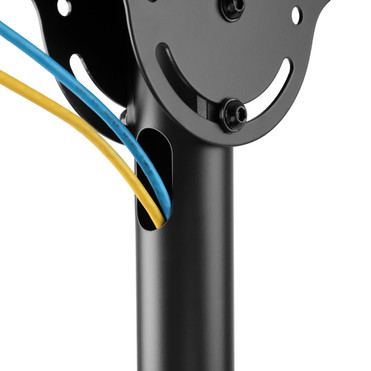

Built-in Cable Management
This bracket comes with integrated cable management. This allows easy maintenance of cables and accessories.

|
Specifications
|
Physical Characteristics
|
| Mounting Style |
Ceiling Mount |
| Color |
Powder Coated Black |
| Material |
Steel |
| Mounting Pattern |
VESA 100x100, 200x100, 200x200 |
| Dimensions |
226 x 226 x 1023mm [8.9 x 8.9 x 40.3 inches] |
| Pole Size |
22 - 36 inches [55.8cm - 91.4cm] |
| Screen Size |
23 - 42 inches [58.4cm - 106.7cm] |
| Weight Capacity |
110lbs [50kg] |
| Tilt |
-25° ~ +0° |
| Swivel |
-180° ~ +180°
|
| Level Adjustment |
-3° ~ +3°
|
| Profile |
560 - 910mm [22 ~ 35.8 inches] |
| Panel Type |
Detachable Panel |
| Wall Plate Type |
Fixed Wall Plate |
| Screen Freely Tilting |
Yes |
| Cable Management |
Yes |
|
Compatibility
|
| Extension Bars |
MT-213-BK - TV Ceiling Mount Extension Pole - 23 inch Length - Black
MT-214-BK - TV Ceiling Mount Extension Pole - 46 inch Length - Black
|
|
Approvals
|
| RoHS |
Yes |
| Reach |
Yes |
|
Packaging Information
|
| Package Quantity |
1 |
| Mounting Hardware |
4 - M4x14 Screws
4 - M5x14 Screws
4 - M6x14 Screws
4 - M8x20 Screws
4 - D5 Washers
4 - D8 Washers
8 - Small Spacers
4 - ST6.3x55 Screws
4 - Concrete Anchors
4 - D6 Washers |
| Product Weight |
10.2lbs [4.6kg] |
|
Warranty Information
|
Warranty
|
Limited Lifetime |
Spec Sheets
Download spec sheet
