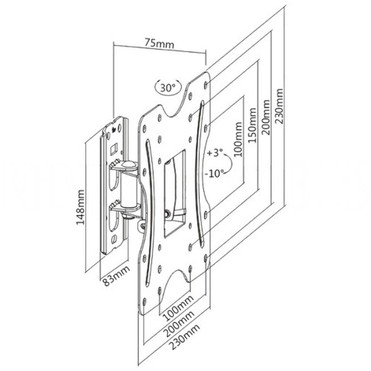

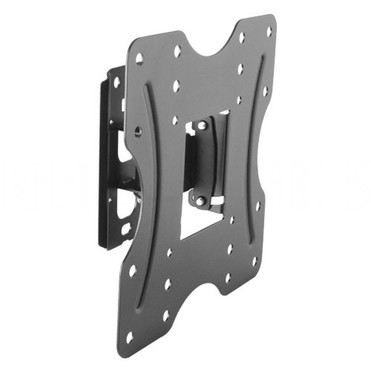

Swivel & Tilt Wall Mount LCD Bracket with Arm - Fits TV Sizes 23-42 inches - Maximum VESA 200x200
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator
This swivel and tilting wall mount bracket is designed to hold most 23 inch to 42 inch flat screen displays with a maximum VESA hole pattern of 200x200. It offers a up to a +10° to -3° tilt and a +15° to -15° swivel. It can be used in both residential and commercial environments.
Full Motion Makes any Seat, the Best SeatThe tilt and swivel motion of the mount allows you to position your TV to the best viewing angle, and provide the maximum viewing experience. Level Adjustment is Easy on the EyesThe built-in level adjustment ensures perfect positioning for a pleasurable viewing experience. |
Physical Characteristics | |
---|---|
Mounting Style | Tilting & Swivel Wall Mount |
Color | Black |
Material | Steel, Plastic |
Mounting Pattern | VESA 100x100, 200x100, 200x200 |
Screen Size | 23 - 42 inches [58 - 107cm] |
Weight Capacity | 66lbs [30kg] |
Tilt | +3° ~ -10° |
Swivel | +15° ~ -15° |
Profile | 75mm |
Level Adjustment | -3° ~ +3° |
Installation | Single Stud |
Approvals | |
RoHS | Yes |
Reach | Yes |
Packaging Information | |
Package Quantity | 1 |
Mounting Hardware | 4 - M4x14 Screws 4 - M5x14 Screws 4 - M6x14 Screws 4 - M8x20 Screws 4 - D5 Washers 4 - D8 Washers 8 - Small Spacers 3 - ST6.3x55 Screws 3 - Concrete Anchors 3 - D6 Washers |
Product Weight | 3.3lbs [1.5kg] |
Warranty Information | |
Warranty |
Limited Lifetime |
