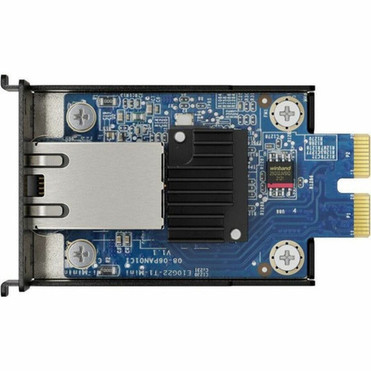

Synology E10G22-T1-Mini 10Gigabit Ethernet Card - PCI Express 3.0 x2 - 1.25 GB/s Data Transfer Rate - 1 Port(s) - 1 - 10GBase-T - Card (E10G22-T1-MINI)

Marketing Information:

Maximize bandwidth to tackle heavy-duty applications

The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity.¹Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.

Throughput

Expand system capabilities with 10GbE connectivity

Flexibility

Integrate easily with support for 10/5/2.5/1 Gbps networks

Compatibility

Designed for maximum performance and reliability in Synology systems

Simple installation

Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly add bandwidth availability in Synology servers featuring compact-size enclosures.

Multi-gig support

Integrate into any RJ-45 network environment with autonegotiation between 10, 5, 2.5, 1 Gbps, and 100 Mbps data rates based on actual network conditions.

Host Interface: PCI Express 3.0 x2

Total Number of Ports: 1

Number of Network (RJ-45) Ports: 1

Data Transfer Rate: 1.25 GB/s

Network Technology: 10GBase-T

Form Factor: Plug-in Card

Height: 1.04" (26.37 mm)

Width: 45.38" (1152.65 mm)

Depth: 2.98" (75.70 mm)

Device Supported: NAS Storage Device/Server
