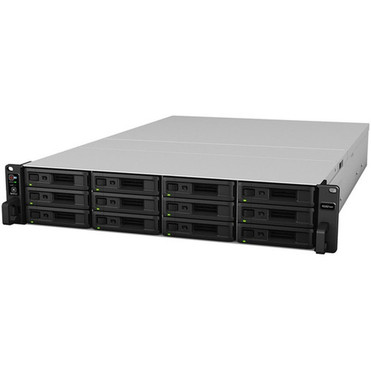

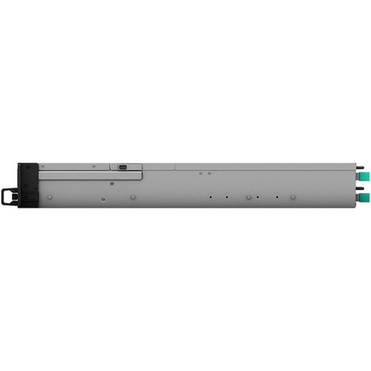

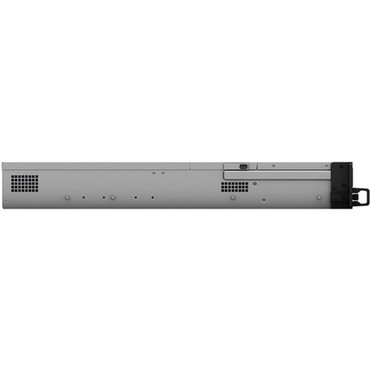

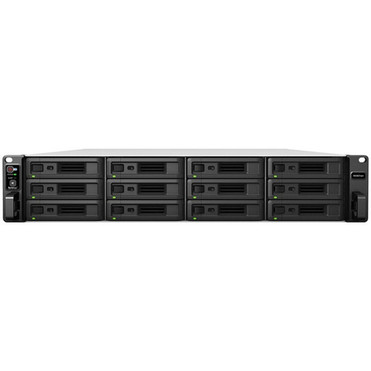

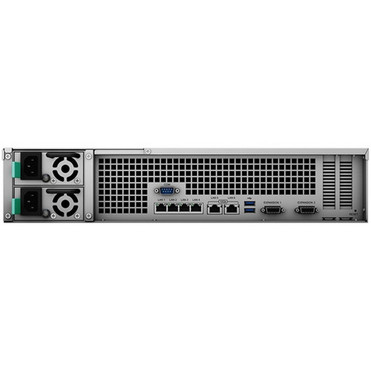

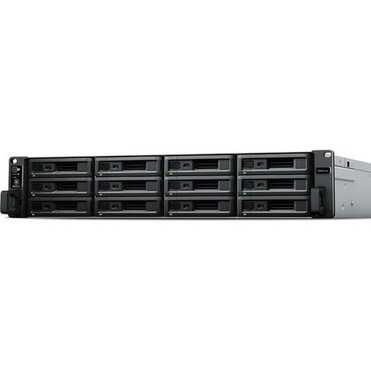

Synology RackStation RS3621XS+ SAN/NAS Storage System - Intel Xeon D-1541 Octa-core (8 Core) 2.10 GHz - 12 x HDD Supported - 0 x HDD - (RS3621XS+)

Marketing Information:

Accelerate your business operations

The 12-bay RS3621xs+ is capable of delivering over 238K 4K random read IOPS and 5,819 MB/s sequential read throughput- a true enterprise powerhouse. With full power supply redundancy, an 8-core processor, ECC memory, advanced snapshot technology, and file self-healing, the RS3621xs+ provides a reliable foundation to any data-driven business.

Compute

Intel^® Xeon^® D-1541 8-core 2.1 GHz

Networking

Built-in dual-port 10GbE

Memory

8 GB ECC DDR4 Up to 64 GB

Scalability

Up to 36 drive bays with RX1217(RP)

Storage you can trust

The RS3621xs+ keeps your data protected while you concentrate on delivering the best results to your customers - even when disaster strikes.

Redundant power

Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans allow them to be replaced without powering down the system.

Maximize service availability

Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.

Next-generation file system

Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.

Tailored to your business

The RS3621xs+ includes two PCIe slots for performance, networking, and storage upgrades enabling it to adapt to any business environment.

• Double bandwidth

  Upgrade network bandwidth in minutes by 2x or more with Synology's range of 10GbE NICs.

• SSD cache

  Boost read/write IOPS by up to 16 times by enabling SSD cache with our Synology M.2 NVMe adapter cards and SNV3500 SSDs or by installing one or more 2.5" SAT5200 SSDs.

• Storage expansion

  Quickly and easily scale up to 36 drives with two RX1217(RP) expansion units.

License-free data protection

Keep disaster at bay

Hyper Backup

A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage used.

Snapshot Replication

Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.

Active Backup Suite

Enables administrators to easily backup the entire IT infrastructure to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication, multiversioning, and optimizations to reduce bandwidth and storage used.

Number of Hard Drives Supported: 12

Number of Hard Drives Installed: 0

Number of Solid State Drive Supported: 12

Number of Solid State Drive Installed: 0

Processor Manufacturer: Intel

Processor Type: Xeon

Processor Model: D-1541

Processor Core: Octa-core (8 Core)

Processor Speed: 2.10 GHz

Standard Memory: 8 GB

Memory Technology: DDR4 SDRAM

Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet

Number of Total Expansion Bays: 12

Number of 2.5"/3.5" Bays: 12

Total Number of Expansion Slots: 2.0

Expansion Slot Type: PCI Express 3.0 x8

Controller Type: Serial ATA

RAID Supported: Yes

RAID Levels: 0, 1, 5, 6, 10, Basic, JBOD, RAID F1

Total Number of USB Ports: 2

Number of USB 3.2 Gen 1 Ports: 2

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 6

Operating System: DiskStation Manager

Protocols: CIFS,AFP,NFS,FTP,WEBDAV,SMB 1.0,SMB 2.0,SMB 3.0,NFSv3,NFSv4,NFSv4.1,iSCSI,HTTP,HTTPS,SNMP,LDAP,CalDAV,DLNA

Number of Power Supplies Installed: 2

Maximum Power Supply Wattage: 500 W

Redundant Power Supply: Yes

Height: 3.46" (88 mm)

Width: 18.98" (482 mm)

Depth: 28.50" (724 mm)

Form Factor: Rack-mountable

Rack Height: 2U

Weight (Approximate): 14.50 kg

Country of Origin: Taiwan
