Taoglas Pantheon MA750 5in1 Permanent Mount GNSS, 4G/3G/2G 2xMIMO, Wi-Fi 2xMIMO - 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2300 MHz - (MA750.B.ABICG.003)
Write a Review
Taoglas
Taoglas Pantheon MA750 5in1 Permanent Mount GNSS, 4G/3G/2G 2xMIMO, Wi-Fi 2xMIMO - 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2300 MHz - (MA750.B.ABICG.003)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance

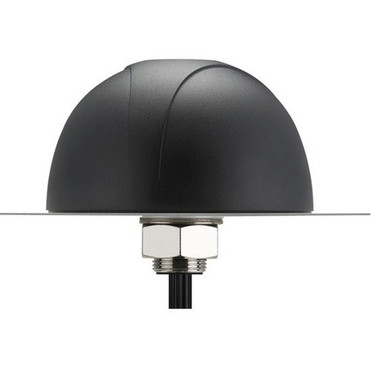

Marketing Information: The MA.750 Pantheon antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
This unique antenna delivers powerful MIMO antenna technology for cellular/LTE and Wi-Fi 802.11n and emerging 802.11ac, plus GPS/GLONASS/GALILEO for next generation multiple wireless technology systems, such as telematics. The GPS/GLONASS/GALILEO antenna has a Front End SAW Filter.
Examples are new fleet management and real time video applications that demand high speed video uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.

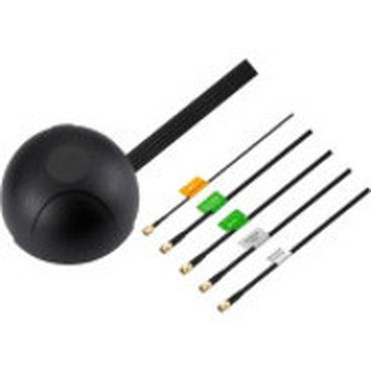

Five (5) high performance antennas are integrated into an extremely robust IP67 direct/permanent mount antenna package with excellent isolation (20dB+).
he antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 10 meters (32' and 9.70"), critical for buses, trains and other commercial transport applications.
Customized cables and connector version available.
Directivity: Omni-directional
Operating Frequency Range: 698 MHz to 960 MHz,1710 MHz to 2170 MHz,2300 MHz to 2700 MHz,2900 MHz to 3500 MHz,2.4 GHz to 2.5 GHz,4.5 GHz to 5.85 GHz,1575.42 MHz,1602 MHz
Antenna Gain (Isotropic): 32 dBi
Connector Type: SMA,RP-SMA
Product Color: Black
Height: 3.37" (85.70 mm)
Diameter: 5.73" (145.60 mm)
Form Factor: Screw Mount
Weight (Approximate): 1.29 kg
Application/Usage: GPS,GLONASS,Wireless Data Network,Cellular Network,Outdoor
Environmentally Friendly: Yes
Country of Origin: Taiwan
- Designed for GPS applications that require greater accuracy
- Provides ease of management and installation thanks to its omni-direction feature
- Antenna can be mounted as screw mount
[custom-specifications]
| Specifications | |
| Manufacturer | Taoglas |
| Manufacturer Part Number | MA750.B.ABICG.003 |
| Manufacturer Website Address | http://www.taoglas.com |
| Brand Name | Taoglas |
| Product Line | Pantheon |
| Product Model | MA750 |
| Product Name | Pantheon MA750 5in1 Permanent Mount GNSS, 4G/3G/2G 2xMIMO, Wi-Fi 2xMIMO |
| Product Type | Antenna |
| Package Type | Bulk |
| Technical Information | |
| Directivity | Omni-directional |
| Operating Frequency Range | 698 MHz to 960 MHz,1710 MHz to 2170 MHz,2300 MHz to 2700 MHz,2900 MHz to 3500 MHz,2.4 GHz to 2.5 GHz,4.5 GHz to 5.85 GHz,1575.42 MHz,1602 MHz |
| Antenna Gain (Isotropic) | 32 dBi |
| Interfaces/Ports | |
| Connector Type | SMA,RP-SMA |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.37" (85.70 mm) |
| Diameter | 5.73" (145.60 mm) |
| Form Factor | Screw Mount |
| Weight (Approximate) | 1.29 kg |
| Miscellaneous | |
| Application/Usage | GPS,GLONASS,Wireless Data Network,Cellular Network,Outdoor |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
[/custom-specifications]
