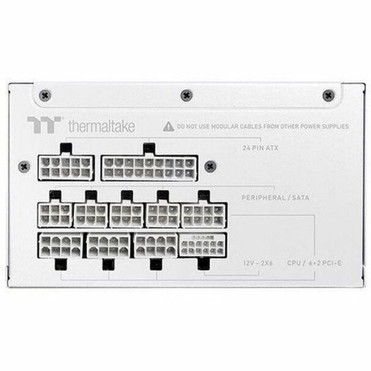

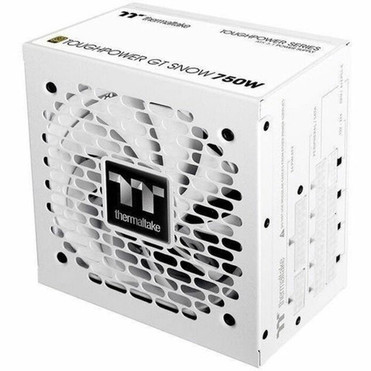

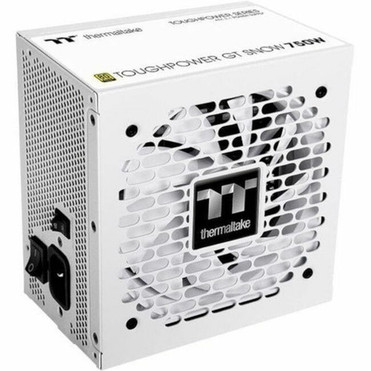

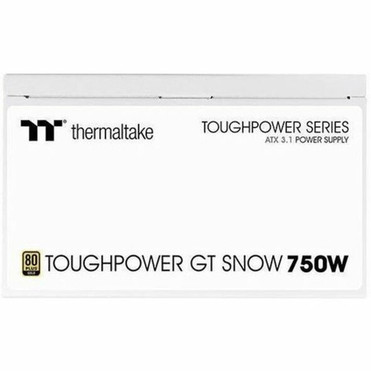

Thermaltake Toughpower GT Snow 750W - Snow - Internal - 120 V AC, 230 V AC Input - 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB Output (PS-TPT-0750FNFAGU-W)
Write a Review
Thermaltake
Thermaltake Toughpower GT Snow 750W - Snow - Internal - 120 V AC, 230 V AC Input - 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB Output (PS-TPT-0750FNFAGU-W)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Specification Compliance: ATX 3.1
Efficiency: 90%
Power Factor Correction (PFC): Active
Number of Fans: 1
Fan Bearing Type: Hydraulic Bearing
Fan Diameter: 120 mm (4.72")
Protection Type: Over Current,Over Voltage,Under Voltage,Over Power,Short Circuit,Over Temperature
Modular: Yes
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB
Output Voltage Detail: 3.3 V DC @ 20 A,5 V DC @ 20 A,12 V DC @ 62.5 A,-12 V DC @ 0.3 A,5 V SB @ 3 A
Output Power: 750 W
Number of SATA Power Connectors: 6
PCI Express Connector: Yes
Number of (6+2 pin) PCI Express Power Connectors: 4
Number of (4+4 pin) CPU Power Connectors: 2
Color Family: White
Product Color: Snow
Form Factor: Internal
Height: 3.39" (86 mm)
Width: 5.91" (150 mm)
Depth: 5.51" (140 mm)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Energy Efficiency Certification: 80 Plus Gold
Limited Warranty: 5 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Manufacturer Part Number | PS-TPT-0750FNFAGU-W |
| Manufacturer Website Address | http://www.thermaltake.com |
| Brand Name | Thermaltake |
| Product Line | Toughpower |
| Product Series | GT |
| Product Model | TPD-750AH2FXG-3 |
| Product Name | Toughpower GT Snow 750W |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX 3.1 |
| Efficiency | 90% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Bearing Type | Hydraulic Bearing |
| Fan Diameter | 120 mm (4.72") |
| Protection Type | Over Current,Over Voltage,Under Voltage,Over Power,Short Circuit,Over Temperature |
| Modular | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB |
| Output Voltage Detail | 3.3 V DC @ 20 A,5 V DC @ 20 A,12 V DC @ 62.5 A,-12 V DC @ 0.3 A,5 V SB @ 3 A |
| Output Power | 750 W |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 6 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Snow |
| Form Factor | Internal |
| Height | 3.39" (86 mm) |
| Width | 5.91" (150 mm) |
| Depth | 5.51" (140 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Energy Efficiency Certification | 80 Plus Gold |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Information
5 Year
