- Built in 9dBi 2x2 dual polarized directional MIMO antenna.
- Adjustable transmission Power from 0 to 27dBm/500mW. Power Consumption: 10.5 Watts Max, Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
- System level optimizations for more than 5km long-range wireless transmission (only for paired Point-to-Point or Point-to-MultiPoint transmission).
- TP Link Pharos tdma (Time Division Multiple Access) technology improves product Performance in throughput, Capacity and latency Performance.
- Centralized management system Pharos Control.
- AP/ client/ AP router/ AP client router (WISP) operation modes.
- Passive PoE adapter Supports up to 60 meter (200 Feet) Power over Ethernet deployment and allows the device to be reset remotely.
- Connectivity technology: Wi-Fi Built In.
[custom-specifications]
SpecificationsManufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: CPE210
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: CPE210

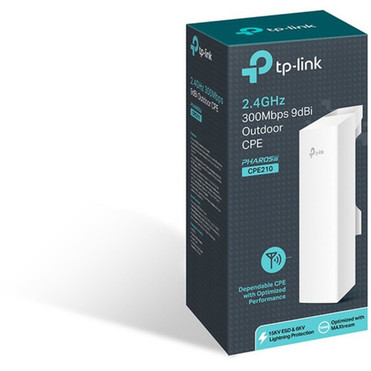

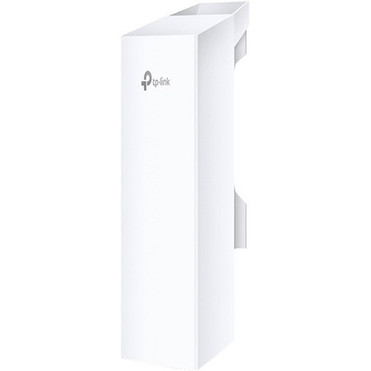

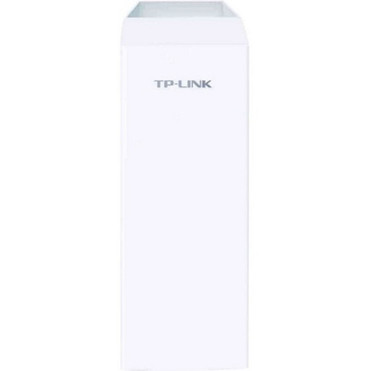

Product Name: 2.4GHz 300Mbps 9dBi Outdoor CPE
Product Type: Wireless Bridge
Technical InformationWireless LAN Standard: IEEE 802.11n
Frequency Band: 2.48 GHz
Indoor/Outdoor: Outdoor
Wireless Transmission Speed: 300 Mbit/s
MIMO Technology: Yes
Data Encryption: Yes
Encryption Standard:
- WPA
- WPA2
- WPA-PSK
- WPA2-PSK
- AES
- TKIP
- 64-bit WEP
- 128-bit WEP
- 152-bit WEP
Interfaces/PortsEthernet Technology:
Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: Yes
PoE PD Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: No
Power DescriptionPower Consumption: 10.50 W
Physical CharacteristicsForm Factor: Pole-mountable
Height: 2.40" (60.96 mm)
Width: 8.80" (223.52 mm)
Depth: 3.10" (78.74 mm)
MiscellaneousPackage Contents:
- 2.4GHz 300Mbps 9dBi Outdoor CPE
- 24V 1A Passive PoE Adapter
- Pole Mounting Straps
- AC Power Cord
- Installation Guide
Environmentally Friendly: Yes
Country of Origin: China
[/custom-specifications]
