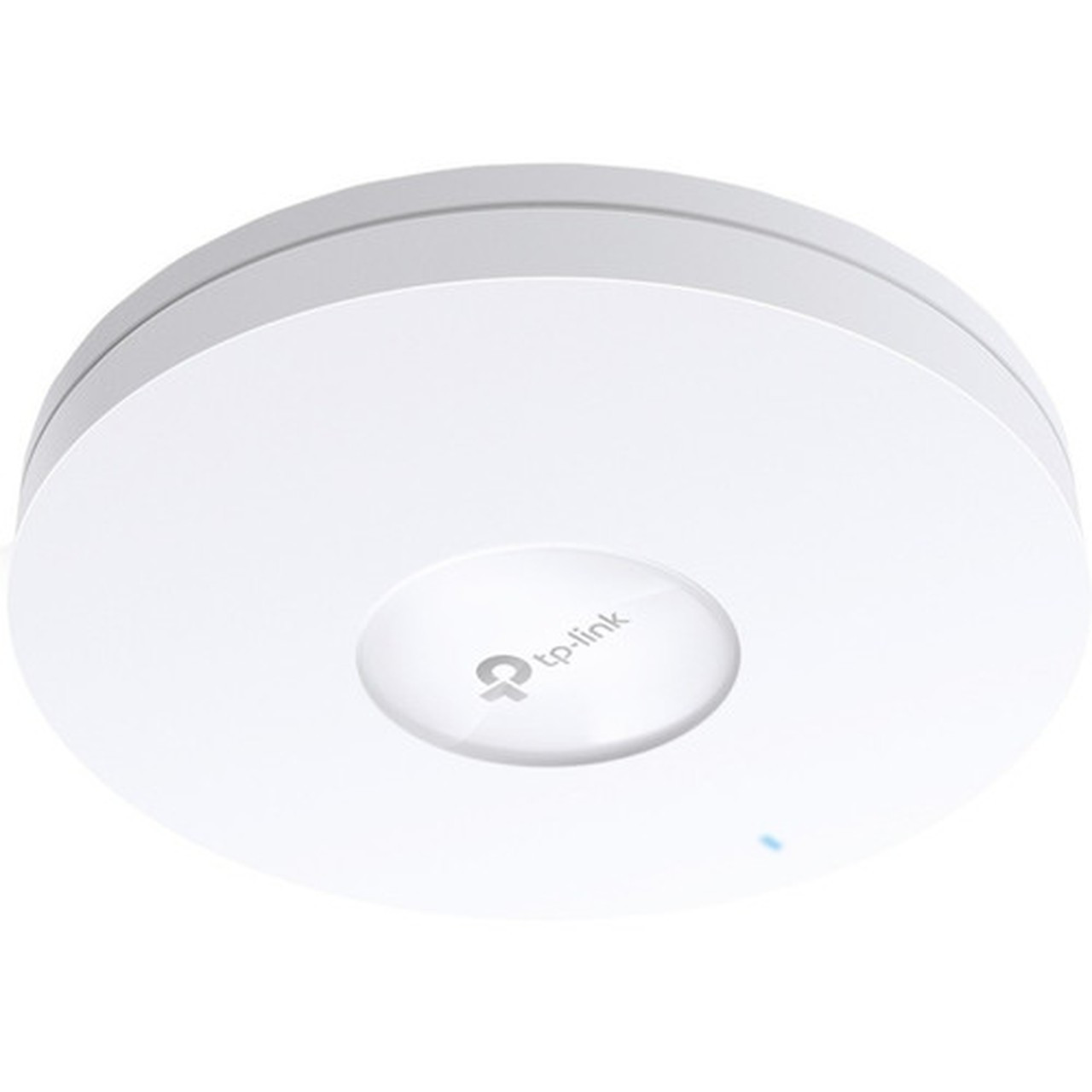

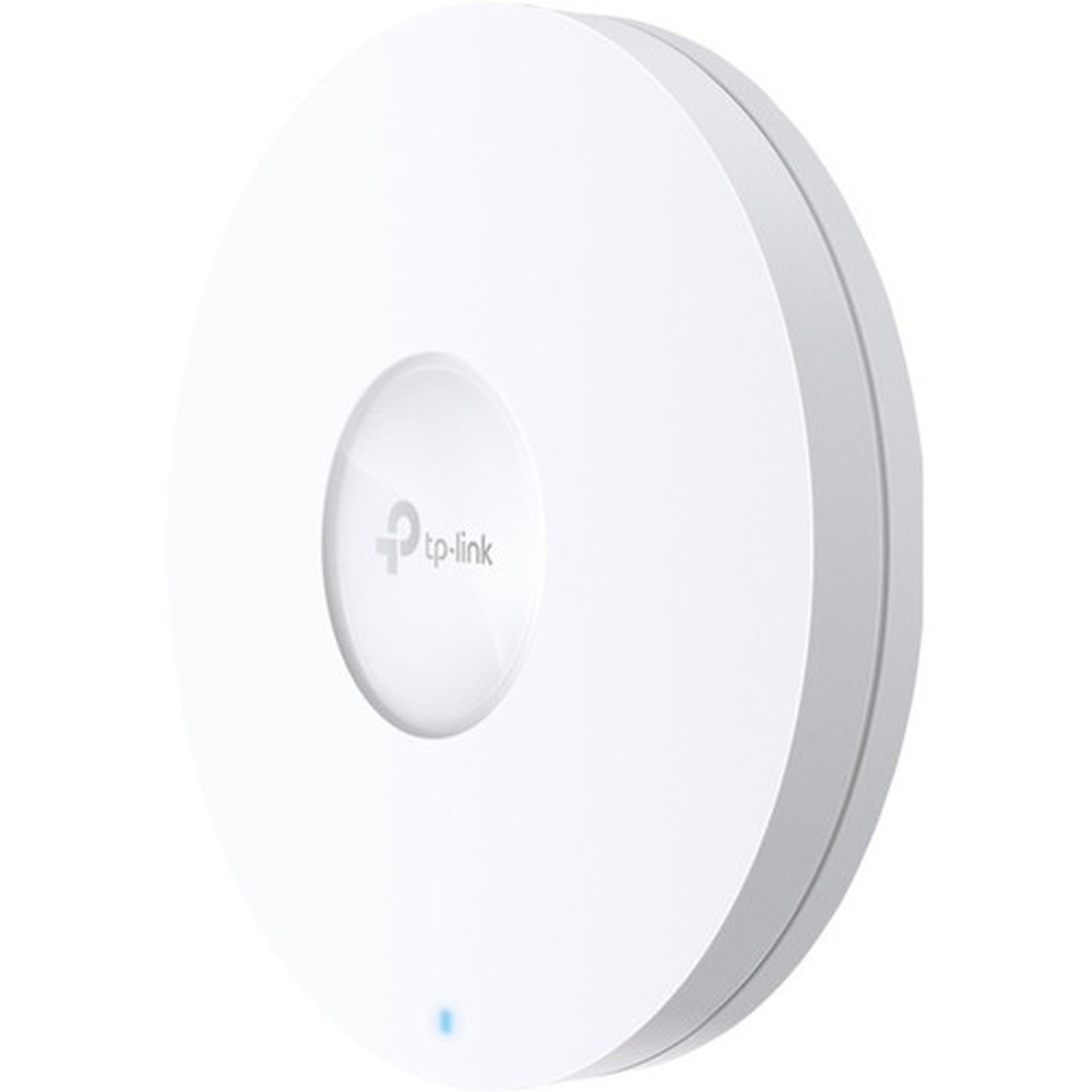

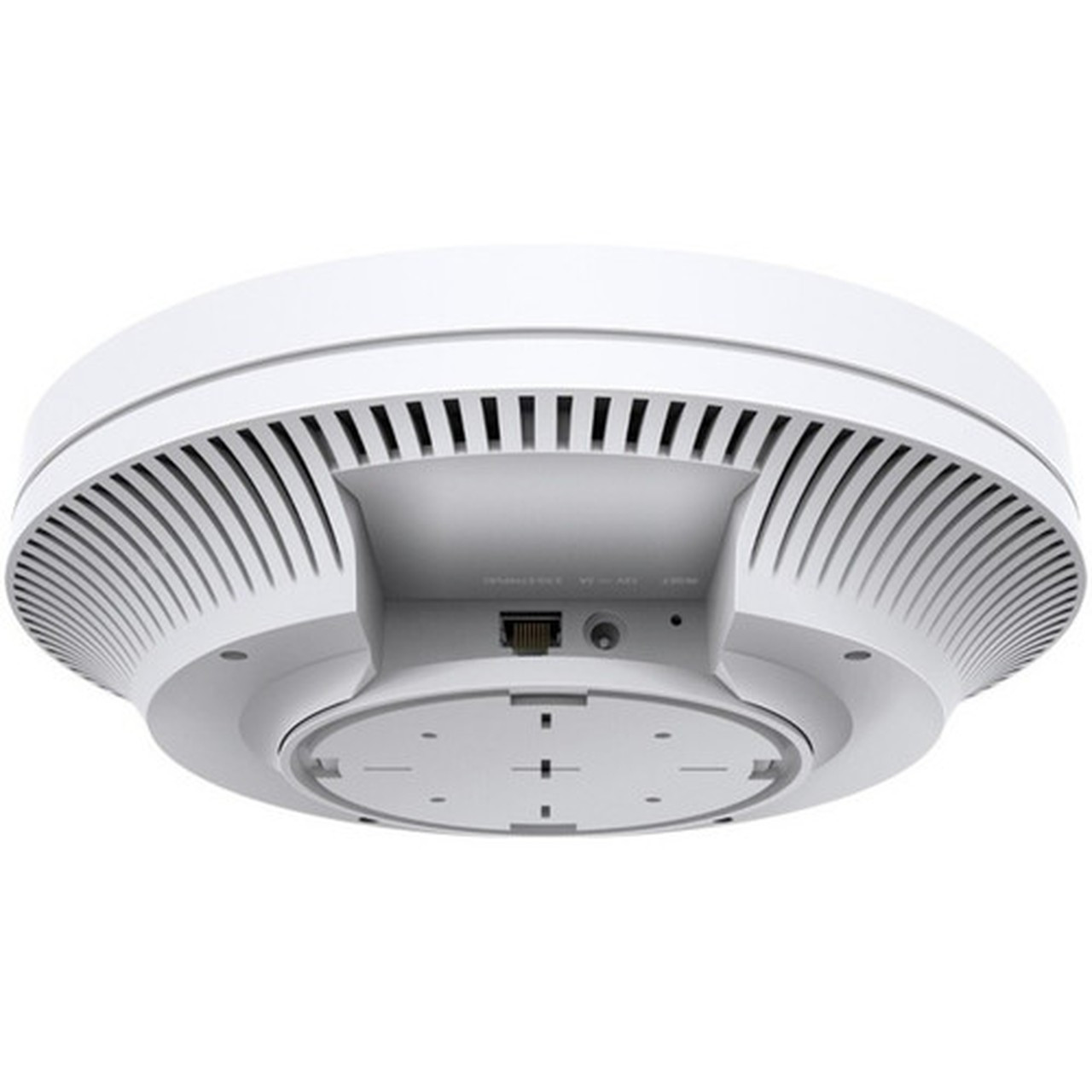

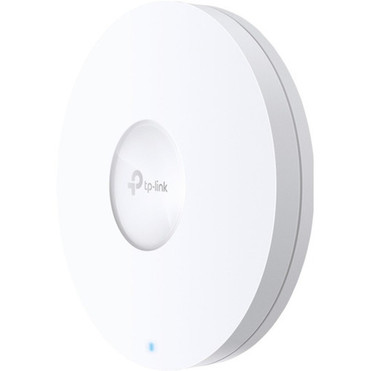

TP-Link EAP620 HD Dual Band 802.11ax 1.76 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - Internal - MIMO Technology - 1 x Network - (EAP620 HD)

Marketing Information:

High-Density Connectivity with 4× Increased Capacity

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Hospitality

High Quality and Full Coverage Wi-Fi

Restaurant

Full Wi-Fi Coverage in High-Density Environment

Shopping Mall

Social Marketing for O2O

Meeting Room

Wireless and Wired Connections for dense usage

Railway Station

High-Density Wi-F

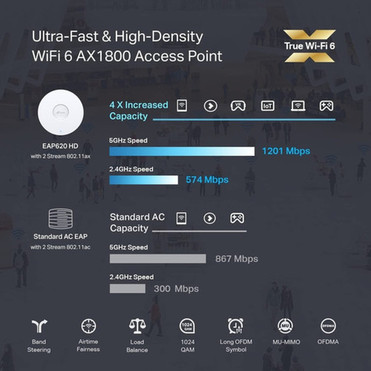

Advanced Wi-Fi Speed with 4 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada SDN-Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management:

100% centralized cloud management of whole network from different sites-all controlled from a single interface anywhere, anytime.

Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Boost Network Efficiency in All Aspects With Rich Advanced Features

Band Steering

Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance

ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness

Increases average network throughput in heavily congested environments

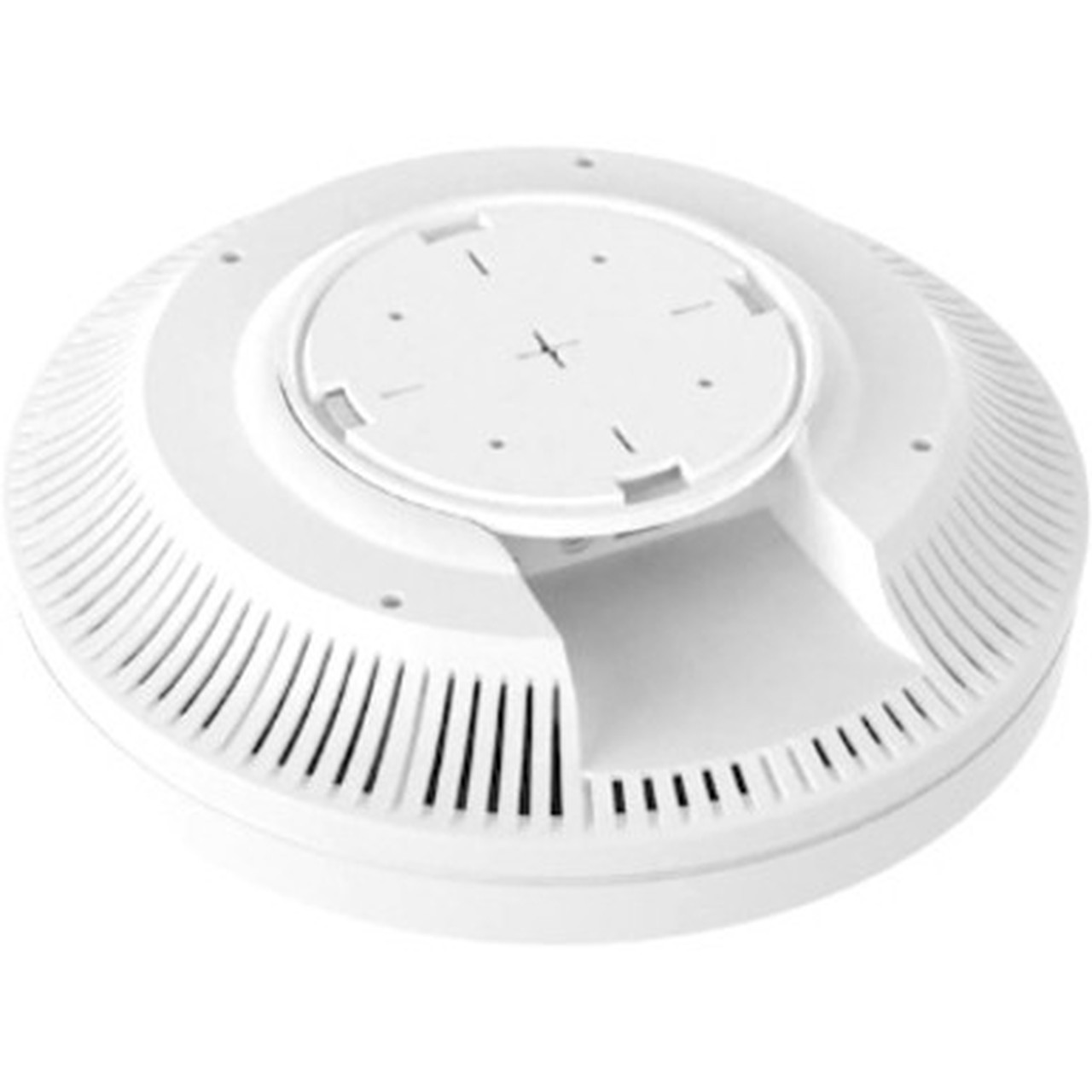

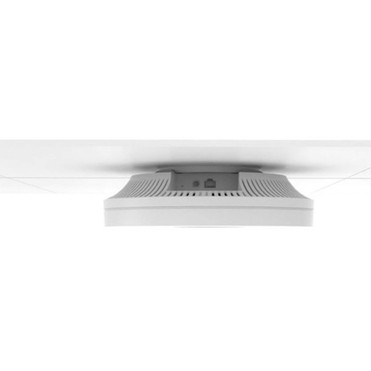

Easy to Mount with Refined Industrial Design

• push up
• simply rotate to lock

Secure Guest Network with Facebook Wi-Fi and SMS Login

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

More from the Manufacturer

Wireless LAN Standard: 802.11ax

Network Band: Dual Band

Frequency Band: 2.40 GHz,5 GHz

Wireless Transmission Speed: 1.76 Gbit/s

MIMO Technology: Yes

Beamforming Technology: Yes

Data Encryption: Yes

Encryption Standard: WPA-PSK,WPA2-PSK,WEP,WPA-ENT,WPA2-ENT,WPA3-ENT,WPA3-Personal

Ethernet Technology: Gigabit Ethernet

Number of Network (RJ-45) Ports: 1

PoE PD Port: Yes

Management Port: Yes

Power Consumption: 13.50 W

Form Factor: Wall Mountable,Ceiling Mountable

Antenna Form Factor: Internal

Height: 2.50" (63.50 mm)

Width: 9.60" (243.84 mm)

Depth: 9.60" (243.84 mm)

Package Contents:

• AX1800 Wireless Dual Band Ceiling Mount Access Point
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: China

Limited Warranty: 5 Year
