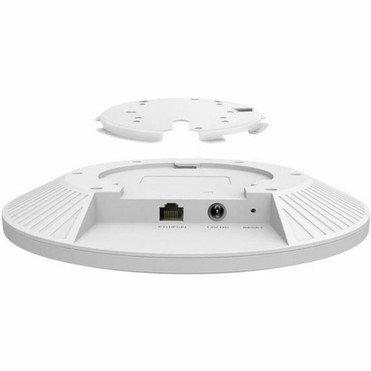

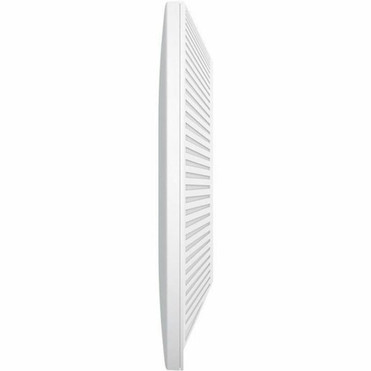

TP-Link EAP683 LR Dual Band IEEE 802.11 a/b/g/n/ac/ax 5.81 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - 4 x Internal Antenna(s) - (EAP683 LR)

Marketing Information:

Boost Your Business with High-Performance Business WiFi 6

AX6000 Ceiling Mount Wi-Fi 6Access Point

EAP683 LR

AX6000 WiFi 6 Speed

4804 Mbps on 5GHz + 1148 Mbps on 2.4 GHz

High-Efficiency WiFi 6

More connected devices can enjoy faster speeds

Centralized Cloud Management

Manage the whole network locally or from the cloud

2.5GE Wired Performance

Boosts overall throughput with a 2.5 Gbps Ethernet port

160 MHz Channel

Double the data at peak transmission times on a single stream with HE160

Auto Channel Selection and Power Adjustment

Optimize overall performance by reducing WiFi interference

Omada Mesh Technology

More flexible and convenient wireless deployment

Seamless Roaming

Uninterrupted streaming when moving between APs

PoE+ Powered

Supports both DC (adapter not included) and 802.3at PoE+ for flexible installations

Wi-Fi 6 Brings Real Power to Your Business | Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network-all controlled from a single interface. Experience total control at your fingertips.

Hardware, Software, or Cloud-Based Controllers | Centralized Cloud Management | Intelligent Monitoring | Zero-Touch Provisioning (ZTP)

Auto Channel Selection and Power Adjustment to Optimize Overall Performance

Provides powerful wireless performance that significantly reduces WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Easy Deployment & Higher Performance by Omada Mesh | Easy Pairing, Less Wiring

With Mesh technology, Omada APs save you from redundant wires by wirelessly extending your WiFi signal farther and more flexibly to hard-to-wire areas.

Optimized Network Performance

Intelligent self-organization optimizes the best path between APs, while self-healing ensures your devices stay online even when one AP is disrupted.

Boosted Network Security and Efficiency | Security | Secure Guest Network with up to 16 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Business with SMS Login

Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks

With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Efficiency | Band Steering

Automatically moves dual band devices onto the wider 5 GHz band for faster connections.

Load Balance

Ensures large numbers of users have smooth network experiences in high-density business networks.

Airtime Fairness

Increases average network throughput in heavily congested environments.

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

Network Band: Dual Band

Frequency Band: 2.40 GHz,5 GHz

Total Number of Antennas: 4

Number of Internal Antennas: 4

Wireless Transmission Speed: 5.81 Gbit/s

MIMO Technology: Yes

Beamforming Technology: Yes

Data Encryption: Yes

Encryption Standard: WPA-PSK,WPA-ENT,WPA2-PSK,WPA2-ENT,WPA3-PSK,WPA3-ENT,WPA3

Ethernet Technology: 2.5 Gigabit Ethernet

Number of Network (RJ-45) Ports: 1

PoE PD Port: Yes

Wi-Fi Generation: Wi-Fi 6

Communication Protocols: HTTP,HTTPS

Power Consumption: 23.69 W

Form Factor: Ceiling Mountable,Wall Mountable

Antenna Form Factor: Internal

Height: 1.30" (33.02 mm)

Width: 8.70" (220.98 mm)

Depth: 8.70" (220.98 mm)

Package Contents:

• EAP683 LR AX6000 Ceiling Mount WiFi 6 Access Point
• Ceiling/Wall Mounting Kits
• Installation Guide

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
