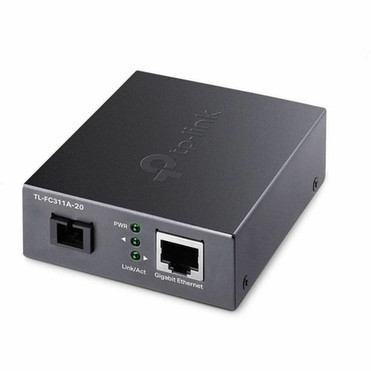

TP-Link Gigabit WDM Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1550 nm, 1310 nm Fiber - - - (FC311A-20)

Marketing Information:

What This Product Does

TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works

TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.

Total Number of Ports: 2

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 1

Number of SC Ports: 1

SC Port Type: Duplex

Media Type Supported: Twisted Pair,Optical Fiber

Fiber Mode Supported: Single-mode

Fiber Optic Wavelength: 1550 nm,1310 nm

Maximum Data Transfer Rate: 1000 Mbit/s

Maximum Distance Supported: 20 km

Fiber Optic Cable Standard: 9/125 µm

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T,100Base-TX,1000Base-TX

Form Factor: Standalone,Rack-mountable

Height: 1.06" (27 mm)

Width: 3.74" (95 mm)

Depth: 2.87" (73 mm)

Package Contents:

• Gigabit WDM Media Converter
• Power Adapter
• Installation Guide
