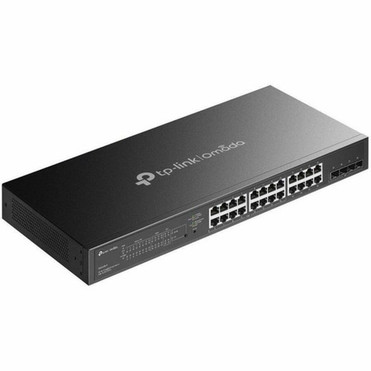

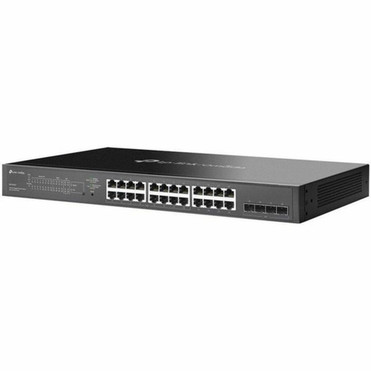

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+ - 24 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer - (SG2428LP)
Write a Review
TP-LINK
TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+ - 24 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer - (SG2428LP)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Features: Fanless
Total Number of Network Ports: 24
Network (RJ-45): Yes
Port/Expansion Slot Details: 16 × 10/100/1000Base-T RJ-45 Gigabit Ethernet PoE+ Network Port,8x 10/100/1000Base-T RJ-45 Gigabit Ethernet Network Port,4 x Gigabit Ethernet SFP Expansion Slot
Media Type Supported: Twisted Pair,Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T,1000Base-X
Maximum Data Transfer Rate: 125 MB/s
Expansion Slot Type: SFP
Number of SFP Slots: 4
Layer Supported: 2
Networking Standards: IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p
PoE (RJ-45) Port: Yes
PoE Budget: 150 W
Input Voltage: 120 V AC,230 V AC
Power Source: Power Supply,PoE+
Power Consumption: 184.70 W
Product Material: Metal
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.70" (43.18 mm)
Width: 17.30" (439.42 mm)
Depth: 8.70" (220.98 mm)
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Rack mounting enables you to organize wires & secure cables for professional installation
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
[custom-specifications]
| Specifications | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SG2428LP |
| Manufacturer Website Address | http://www.tp-link.com |
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Model | SG2428LP |
| Product Name | Omada 28-Port Gigabit Smart Switch with 16-Port PoE+ |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 16 × 10/100/1000Base-T RJ-45 Gigabit Ethernet PoE+ Network Port,8x 10/100/1000Base-T RJ-45 Gigabit Ethernet Network Port,4 x Gigabit Ethernet SFP Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| Maximum Data Transfer Rate | 125 MB/s |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 150 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,PoE+ |
| Power Consumption | 184.70 W |
| Physical Characteristics | |
| Product Material | Metal |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 8.70" (220.98 mm) |
