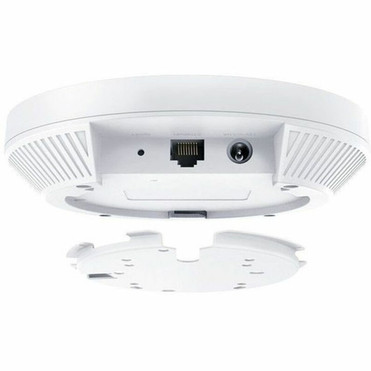

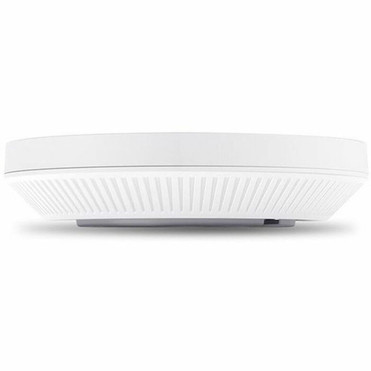

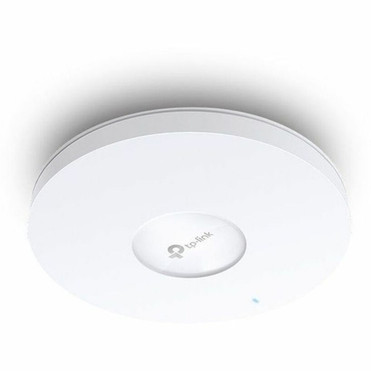

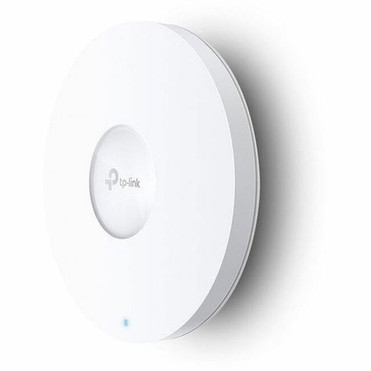

TP-Link Omada AP9650 Dual Band IEEE 802.11 a/b/g/n/ac/ax 2.91 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 1 x - (AP9650)

Marketing Information:

What This Product Does

AP9650, the Omada Pro AX3000 Ceiling Mount WiFi 6 Access Point, provides overall 2976 Mbps speeds with WiFi 6 technologies, such as HE160, 1024 QAM, Long OFDM Symbol, and more. A built-in Gigabit Ethernet port allows an ultra-fast business network. PoE+ supported also provides flexible installations.

Integrated into the Omada Software Defined Networking (SDN) solution, AP9650 runs in an efficient management way. Centralized and remote management liberate managers and reduce maintenance costs.

Enterprise-Grade WiFi 6 Speed and Connectivity

• Lightning-Fast AX3000 WiFi 6 Speeds

New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5. Every application feels more fluid with drastically improved WiFi speeds. 1024 QAM ensures 25% more data encoded at one time. HE160 doubles the data of AP9650 at peak transmission times on a single stream.

• Higher Efficiency for More Devices

Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag. Enjoy faster speeds on more devices with less lag.

Boosted Network Security

Customizable WIDS and adaptive WIPS assist in safeguarding critical data and network resources. Intelligent Anomaly Detection and Analysis guarantees 24/7 automatic network anomaly analysis to offer timely optimization advice. AP9650 also provides secure WiFi access along with multiple authentication options (SMS/Voucher/RADIUS) and abundant wireless security technologies, such as WPA3 for worry-free open public networks.

Auto Channel Selection and Power Adjustment provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network. Band Steering automatically moves dual-band devices onto the wider 5GHz band for faster connections. Load Balance ensures large numbers of users have smooth network experiences in high-density business networks. Airtime Fairness increases average network throughput in heavily congested environments.

Cloud Centralized Management

The Omada Software Defined Networking (SDN) platform provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface. Seamless wireless connections are provided, making them ideal for use in hotels, education, retail, offices, and more. Zero-Touch Provisioning allows admins to remotely deploy and configure multi-site networks, so there's no need to send out an engineer for on-site configuration.

Easy Deployment

Intelligent software and quality hardware designs together lead to simple deployment. With Automated Radio Frequency Deployment, AP9650 efficiently optimizes RF deployment by scanning the surrounding area 24/7, improving the performance and quality of wireless networks. With Omada Mesh, AP9650 saves you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. And intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted. What's more, a flexible power supply, including DC, 802.3at PoE+, and passive PoE, ensures simple installation. With the compact case design, AP9650 can be installed in 2 steps: simply push and rotate.

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

Network Band: Dual Band

Frequency Band: 2.40 GHz,5 GHz

Wireless Transmission Speed: 2.91 Gbit/s

MIMO Technology: Yes

Beamforming Technology: Yes

Data Encryption: Yes

Encryption Standard: WPA-ENT,WPA-PSK,WPA2-ENT,WPA2-PSK,WPA3-ENT,WPA3-Personal,WPA3

Ethernet Technology: Gigabit Ethernet

Number of Network (RJ-45) Ports: 1

PoE PD Port: Yes

Wi-Fi Generation: Wi-Fi 6

Communication Protocols: SSH,HTTP,HTTPS,SNMPv1/v2c/v3,RADIUS

Power Consumption: 12.58 W

Form Factor: Ceiling Mountable,Wall Mountable,Junction Box Mount

Diameter: 6.30" (160 mm)

Package Contents:

• Omada Pro AX3000 Ceiling Mount WiFi 6 Access Point
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
