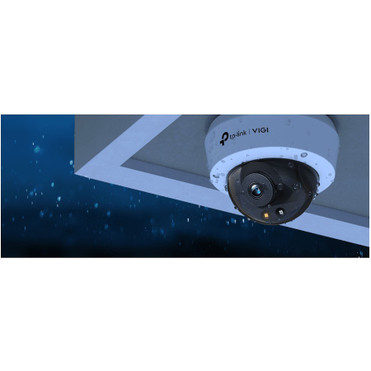

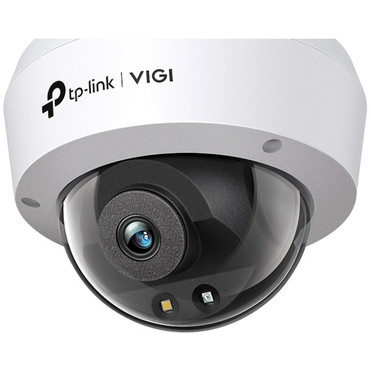

TP-Link VIGI C240 4 Megapixel Network Camera - Color - Dome - 98.43 ft (30 m) Infrared/Color Night Vision - H.265+, H.265, H.264, - x (VIGI C240(2.8MM))
Write a Review
TP-LINK
TP-Link VIGI C240 4 Megapixel Network Camera - Color - Dome - 98.43 ft (30 m) Infrared/Color Night Vision - H.265+, H.265, H.264, - x (VIGI C240(2.8MM))
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 98.43 ft (30 m)
Night Vision Type: Infrared/Color
Number of IR LEDs: 1
Image Sensor Type: CMOS
Image Sensor Size: 1/3"
Color Supported: Color
Field of View: Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°
Effective Camera Resolution: 4 Megapixel
Video Formats: H.265+,H.265,H.264,H.264+
Maximum Video Resolution: 2560 x 1440
Maximum Frame Rate: 30 fps
Lens Type: Fixed
Maximum Focal Length: 2.8 mm (0.11")
Lens Included: Yes
Lens Mount Type: M12-mount
Maximum Aperture: f/1.6
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Storage Type: Memory Card
Network (RJ-45): Yes
Input Voltage: 12 V DC
Power Source Type: PoE,DC
Mount Type: Ceiling Mount
Form Factor: Dome
Durability: Vandal Proof,Water Proof,Vandal Resistant,Rain Resistant,Dust Resistant,Weather Proof
Height: 4.53" (115 mm)
Width: 4.53" (115 mm)
Depth: 3.39" (86 mm)
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 140°F (60°C)
Features: Human Detection,Vehicle Detection,Rugged Design,Wide Dynamic Range,3D Digital Noise Reduction,Alarm Triggering,Motion Detection,Cross Line Detection,Password Protection,HTTPS Encryption,Mirror,Privacy Masking
Impact Protection Rating: IK10
Ingress Protection Rating: IP67
- For remote surveillance needs, this network camera is best suited
- Up to 2560 x 1440 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Provides night vision of objects at a distance of up to 98.43 ft (30 m)
[custom-specifications]
| Specifications | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | VIGIC24028MM |
| Manufacturer Website Address | http://www.tp-link.com |
| Brand Name | TP-Link |
| Product Line | VIGI |
| Product Model | C240 |
| Product Name | VIGI 4MP Full-Color Dome Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared/Color |
| Number of IR LEDs | 1 |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/3" |
| Color Supported | Color |
| Field of View | Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264,H.264+ |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Mount Type | Ceiling Mount |
| Form Factor | Dome |
| Durability | Vandal Proof,Water Proof,Vandal Resistant,Rain Resistant,Dust Resistant,Weather Proof |
| Height | 4.53" (115 mm) |
| Width | 4.53" (115 mm) |
| Depth | 3.39" (86 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Features | Human Detection,Vehicle Detection,Rugged Design,Wide Dynamic Range,3D Digital Noise Reduction,Alarm Triggering,Motion Detection,Cross Line Detection,Password Protection,HTTPS Encryption,Mirror,Privacy Masking |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
Additional-pdf3
Additional-pdf4
[/custom-user-manual]
