TRENDnet 1000Base-LX Industrial SFP Single- Mode LC Module (20km) - For Data Networking, Optical Network - 1 x LC Duplex 1000Base-LX - (TI-MGBS20)
Write a Review
TRENDnet
TRENDnet 1000Base-LX Industrial SFP Single- Mode LC Module (20km) - For Data Networking, Optical Network - 1 x LC Duplex 1000Base-LX - (TI-MGBS20)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance

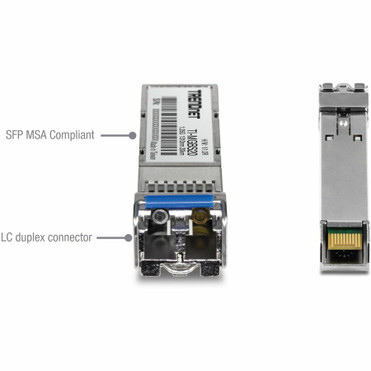

- DEVICE INTERFACE: SFP MSA Compliant; LC Duplex Connector; Low Electromagnetic Interference (EMI) Design
- LIFETIME PROTECTION -We stand by the quality of our products. The TI-MGBS20, 1000Base-LX Industrial SFP Single- Mode LC Module (20km) is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant 1000Base-LX Industrial SFP Single- Mode LC Module , you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- DATA RATES & RANGE: SFP module supports data rates up to 1.25Gbps with transmission distances of up to 20km (12.42 Miles)
- EXTREME OPERATING TEMPERATURE: The industrial SFP is rated for an extreme operating temperature range of -40°- 85° C (-40° - 185° F)
- INTERFACE & COMPATABILITY: The SFP module is compatible with duplex LC fiber connector types. Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type duplex connectors.
- FIBER APPLICATIONS: This industrial SFP LC module can be used for long distance fiber networking for industrial, manufacturing, corporate, and school campus applications. Easy plug and play installation.
- FIBER WAVELENGTH: Compatible with single mode 1310nm wavelength
- IEEE 802.3z Gigabit Ethernet & ANSI Fiber Channel Compliant. Also compliant with Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA)
Marketing Information: TRENDnet's 1000Base-LX Industrial SFP Single -Mode LC Module, model TI-MGBS20, is designed to operate within an extreme temperature range and is well suited for industrial environments. This industrial SFP module works with standard SFP slots found on industrial switches and fiber media converters. The TI-MGBS20 industrial SFP is compatible with duplex LC fiber connector types and supports gigabit single- mode fiber connections at distances of up to 20 km (12.42 mi.).
Application/Usage: Data Networking,Optical Network
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-LX Network
Media Type Supported: Optical Fiber
Fiber Optic Cable Wavelength: 1310 nm
Fiber Mode Supported: Single-mode
Ethernet Technology: 1.25 Gigabit Ethernet
Network Technology: 1000Base-LX
Maximum Distance Supported: 20 km (12.43 Mile)
Maximum Data Transfer Rate: 1.25 Gbit/s
Form Factor: Hot-pluggable
Height: 0.50" (12.70 mm)
Width: 0.50" (12.70 mm)
Depth: 2.20" (55.88 mm)
Weight (Approximate): 0.67 oz (19 g)
Compatibility:
MSA Compliant
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: Lifetime
- Compliant with IEEE 802.3z Gigabit Ethernet
- ANSI Fiber Channel compliant
- Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
- Extreme operating temperature range of -40°- 85 ° C (-40° - 185 ° F)
- Supports data rates of up to 1.25Gbps
- Transmission distance of up to 20km (12.42 mi.)
- Low Electromagnectic Interference (EMI) design
- Supports 1310nm single -mode network transmissions
- Duplex LC optical interface
- Low power consumption
- NDAA / TAA compliant
- Lifetime Warranty
[custom-specifications]
| Specifications | |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-MGBS20 |
| Manufacturer Website Address | http://www.trendnet.com |
| Brand Name | TRENDnet |
| Product Name | 1000Base-LX Industrial SFP Single- Mode LC Module (20km) |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-LX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Wavelength | 1310 nm |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 1.25 Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Maximum Data Transfer Rate | 1.25 Gbit/s |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 0.50" (12.70 mm) |
| Width | 0.50" (12.70 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 0.67 oz (19 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Information
Lifetime
