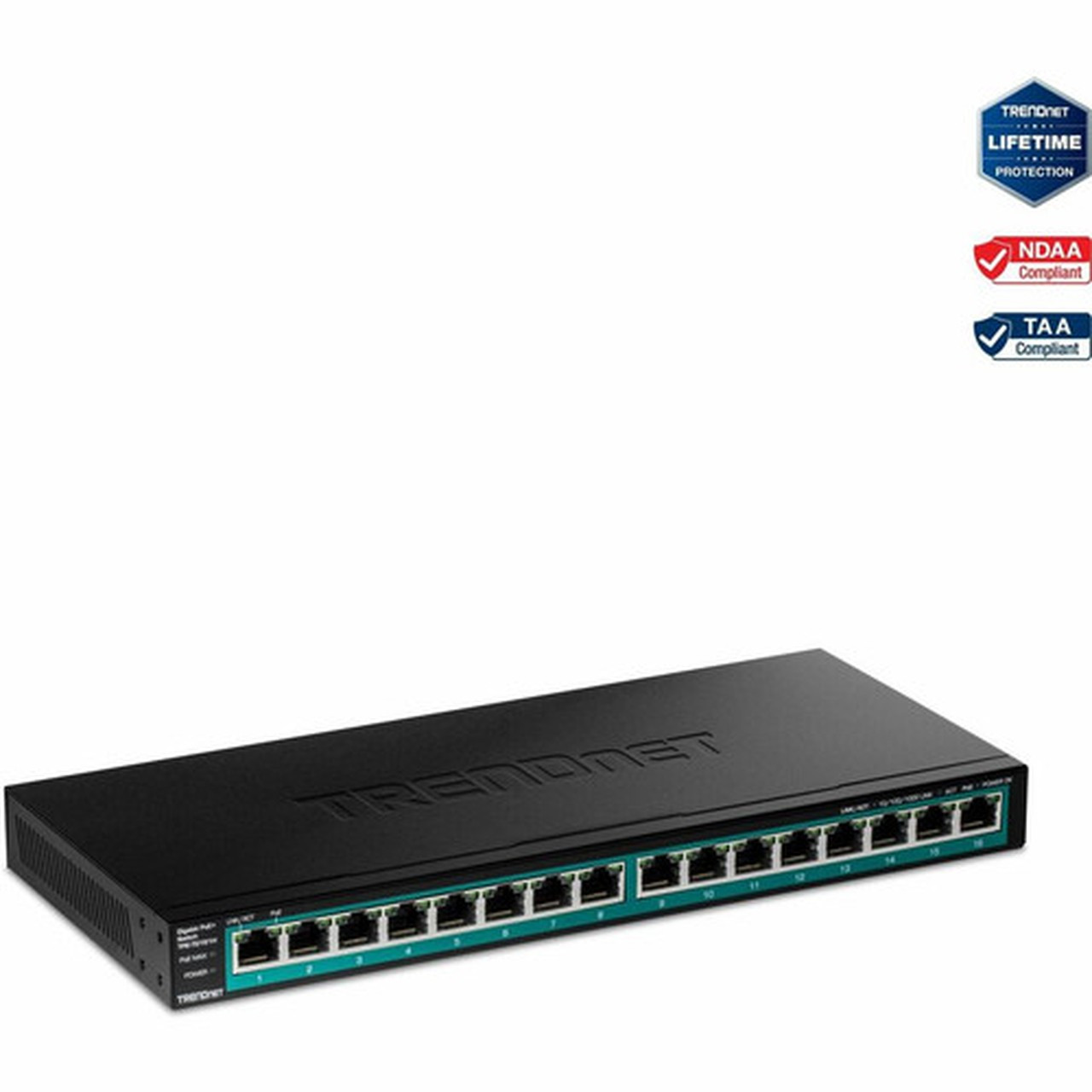

TRENDnet 16-Port Gigabit PoE+ Switch, 16 x Gigabit PoE+ Ports, 120W PoE Budget, Up to 30W Per Port, 1U 19" Rackmount Brackets Fanless, (TPE-TG161H)

Marketing Information: Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Unmanaged Gigabit PoE+ Switches. These gigabit PoE+ switches deliver up to 30W per port of PoE power, and data over your existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both power and data.

The new fanless design reduces unnecessary energy consumption and eliminates disruptive operating noise. Easily connect and network your PoE and PoE+ devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls, to reliable TRENDnet's gigabit PoE+ switches.

DEVICE INTERFACE: 16 x Gigabit PoE+ Ports; LED Indicators
POE+ POWER & SWITCHING CAPACITY: The Gigabit PoE+ switch is equipped with 32Gbps switching capacity, and a 120W
PoE power budget that supplies 16 Power over Ethernet devices with 30W per port PoE+ power.
GIGABIT PORTS: Equipped with high-speed gigabit ports and a full switching capacity, this fanless PoE+ switch is well-suited
for the most demanding networking applications
FANLESS DESIGN: The fanless PoE+ switch design lowers unnecessary energy consumption and eliminates disruptive
operating noise
HOUSING DESIGN: With a sturdy metal housing and included rackmount brackets, this 16 Port PoE+ switch is well-suited for
wall mount or 19" 1U rack installations.
TRENDnet LIFETIME PROTECTION: The TPE-TG161H Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer Protection.
NDAA / TAA compliant (U.S. and Canada only)

More from the Manufacturer

Total Number of Network Ports: 16

Network (RJ-45): Yes

Port/Expansion Slot Details: 16 x Gigabit Ethernet PoE+

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T

Layer Supported: 2

Networking Standards: IEEE 802.3af,IEEE 802.3at,IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab

Manageable: No

PoE (RJ-45) Port: Yes

PoE Budget: 120 W

Power Source: Power Supply

Power Consumption: 12.80 W

Compatible Rack Unit: 1U

Form Factor: Rack-mountable,Wall Mountable

Height: 12.99" (330 mm)

Width: 13.78" (350 mm)

Depth: 13.39" (340 mm)

Weight (Approximate): 11.95 kg

Package Contents:

• 16-Port Gigabit PoE+ Switch
• Quick Installation Guide

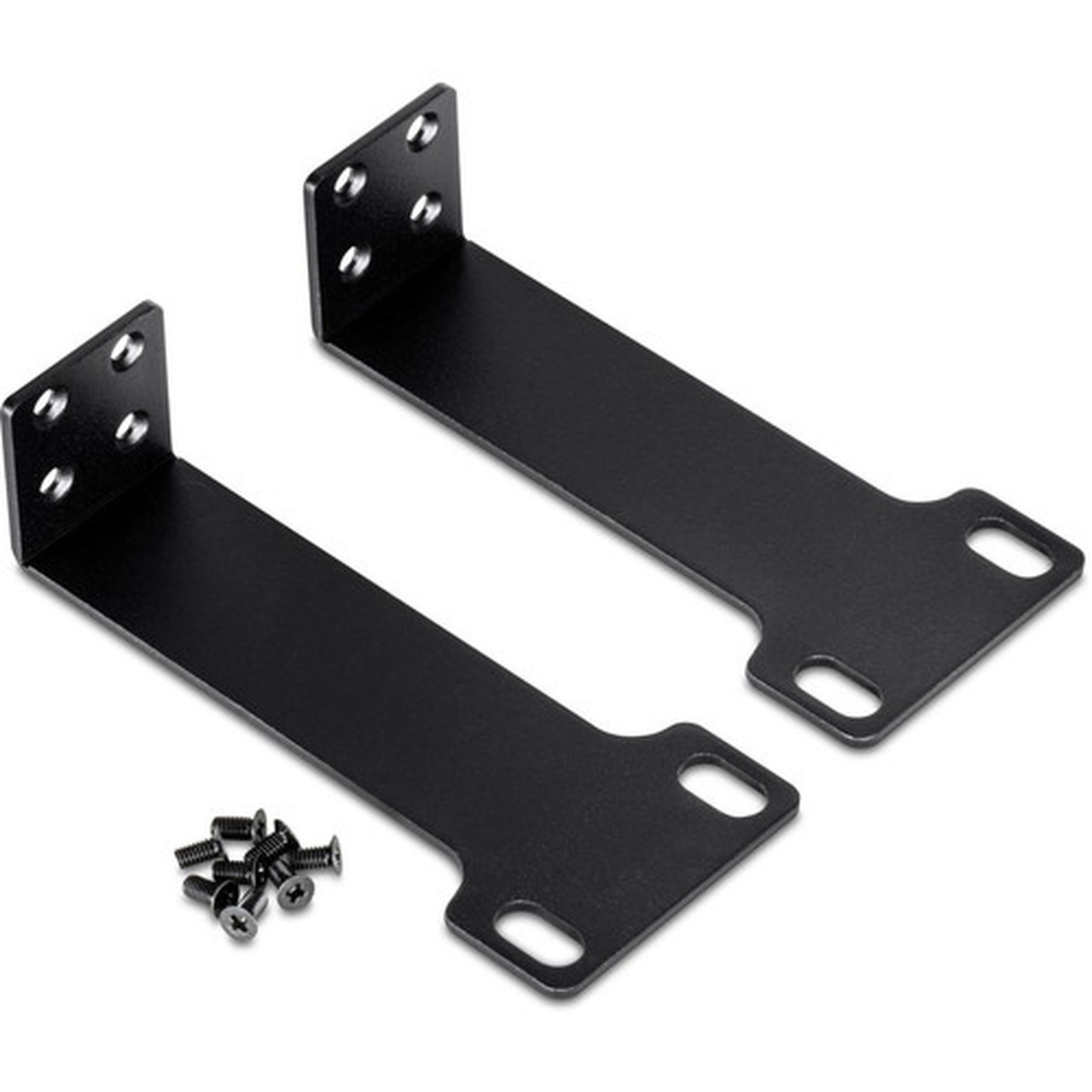

• Rack Mount Kit
• Power Brick (55V, 2.55A)
• Power Cord (1.5m / 4.9 ft.)

Country of Origin: Taiwan

TAA Compliant: Yes

Limited Warranty: Lifetime
