TRENDnet 16-Port Rack Mount USB KVM Switch, VGA and USB Connection, Supports USB and PS/2, Auto-Scan, Device Monitoring, Audible Plug (TK-1603R)
Write a Review
TRENDnet
TRENDnet 16-Port Rack Mount USB KVM Switch, VGA and USB Connection, Supports USB and PS/2, Auto-Scan, Device Monitoring, Audible Plug (TK-1603R)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 16-Port Rackmount KVM Switch
- Quick Installation Guide
- Power Adapter (9 V DC, 1 A)
- Rack Mount Kit
Number of Computers Supported: 16
Number of Local Users Supported: 1
Features: Plug and Play
Graphic Mode: VGA,QXGA
Maximum Video Resolution: 2048 x 1536
PS/2 Port: Yes
USB: Yes
VGA: Yes
Number of PS/2 Ports: 2
Number of USB Ports: 2
Number of VGA Ports: 17
Input Voltage Range: 100 - 240V
Frequency: 50 Hz,60 Hz
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.80" (45.72 mm)
Width: 16" (406.40 mm)
Depth: 6.50" (165.10 mm)
Weight (Approximate): 4.41 lb (2000 g)
Package Contents:
Environmentally Friendly: Yes
Country of Origin: China
TAA Compliant: Yes
Limited Warranty: 2 Year

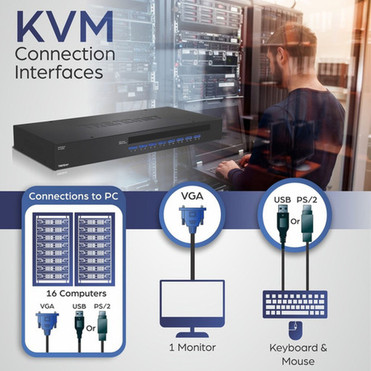

- Controls up to 16 computers or servers
- Console port supports both USB and PS/2 for keyboard and mouse interfaces
- USB only for PC side mouse and keyboard connections
- Supports Windows®, Linux®, Mac OS® and more
- Supports up to 2048 x 1536 VGA resolution
- Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds
- Keyboard status restored when switching between computers
- LEDs display for easy status monitoring
- Audio notification for port switching confirmation (enable/disable)
- Keyboard hot-key command or push button switching
- Plug & Play and Hot-Pluggable
- Required cabling sold separately (TK-CU06 / TK-CU10 / TK-CU15)
- Standard 19" (1U) rackmount design
- 2 year warranty
- NDAA / TAA compliant (U.S. and Canada only)
[custom-specifications]
| Specifications | |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TK1603R |
| Manufacturer Website Address | http://www.trendnet.com |
| Brand Name | TRENDnet |
| Product Name | 16-Port Rackmount KVM Switch |
| Product Condition | New |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 16 |
| Number of Local Users Supported | 1 |
| Features | Plug and Play |
| Video | |
| Graphic Mode | VGA,QXGA |
| Maximum Video Resolution | 2048 x 1536 |
| Interfaces/Ports | |
| PS/2 Port | Yes |
| USB | Yes |
| VGA | Yes |
| Number of PS/2 Ports | 2 |
| Number of USB Ports | 2 |
| Number of VGA Ports | 17 |
| Power Description | |
| Input Voltage Range | 100 - 240V |
| Frequency | 50 Hz,60 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.80" (45.72 mm) |
| Width | 16" (406.40 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 4.41 lb (2000 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | China |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
2 Year
