TRENDnet 240W Single Output Industrial DIN-Rail Power Supply, Extreme Operating Temp Range -25 to 70 °C(-13 to 158 °F) Active (TI-S24048)

(No reviews) Write a Review
$288.05
$278.54
$255.52
(You save $32.53 )
SKU: TI-S24048
UPC: 696552138898
Availability: Toronto
Weight: 2.75 LBS
Adding to cart… The item has been added
  • Industrial power supply with integrated DIN-rail mount
  • Provides up to 240 Watts of power (48 V, 5 A)
  • Built-in active PFC (PF > 0.93)
  • Short circuit/overload/over voltage/over temperature protection
  • High efficiency (94%) design
  • UL 508 approved
  • 100 % full load burn-in test
  • Extreme -25 to 70 °C (-13 to 158 °F) operating temperature range
  • NDAA / TAA compliant (U.S. and Canada only)
    Marketing Information:
    • Industrial power supply with integrated DIN-rail mount
    • Provides up to 240 Watts of power (48 V, 5 A)
    • Built-in active PFC (PF > 0.93)
    • Short circuit/overload/over voltage/over temperature protection
    • High efficiency (94%) design
    • UL 508 approved
    • 100 % full load burn-in test
    • Extreme -25 to 70 °C (-13 to 158 °F) operating temperature range
    • NDAA / TAA compliant

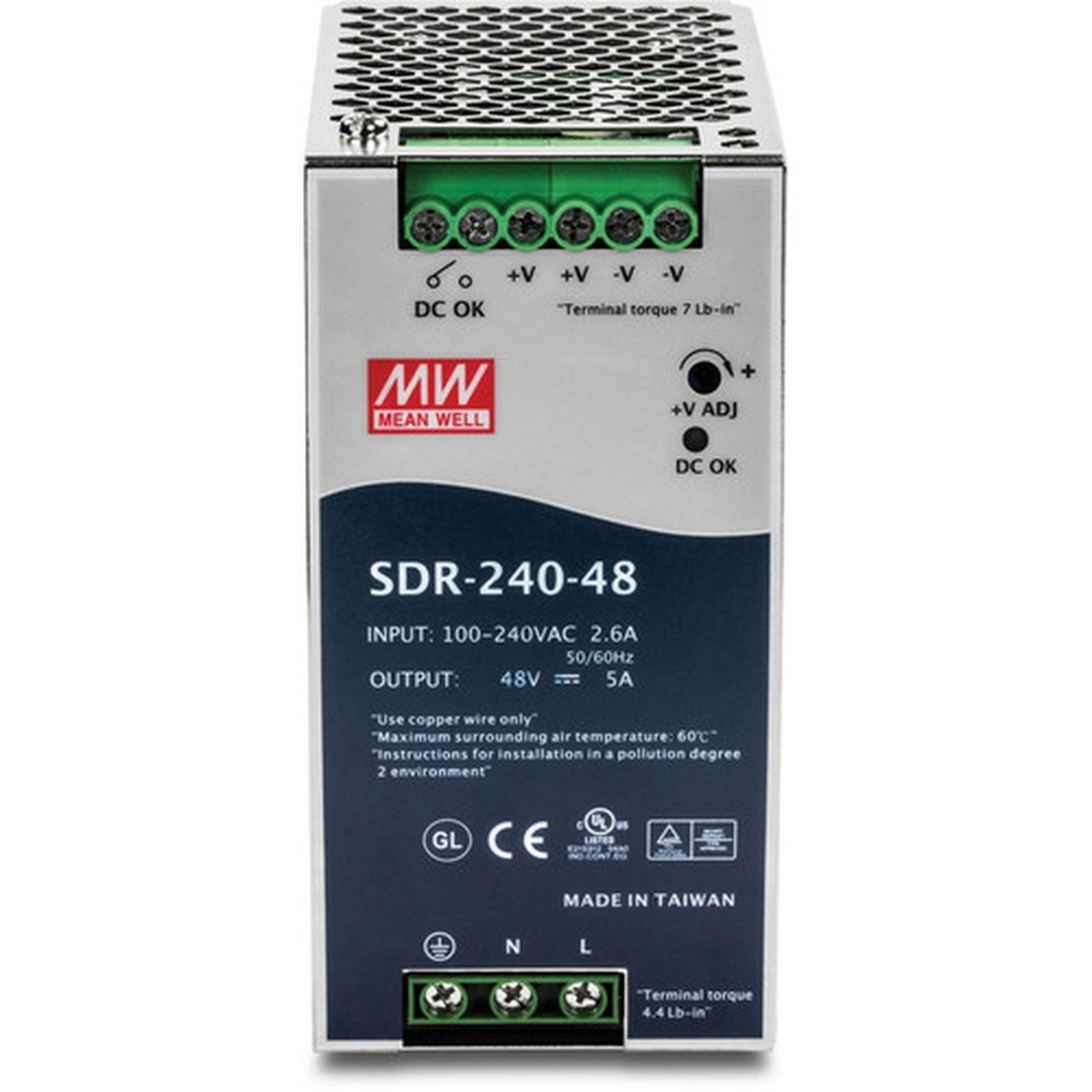

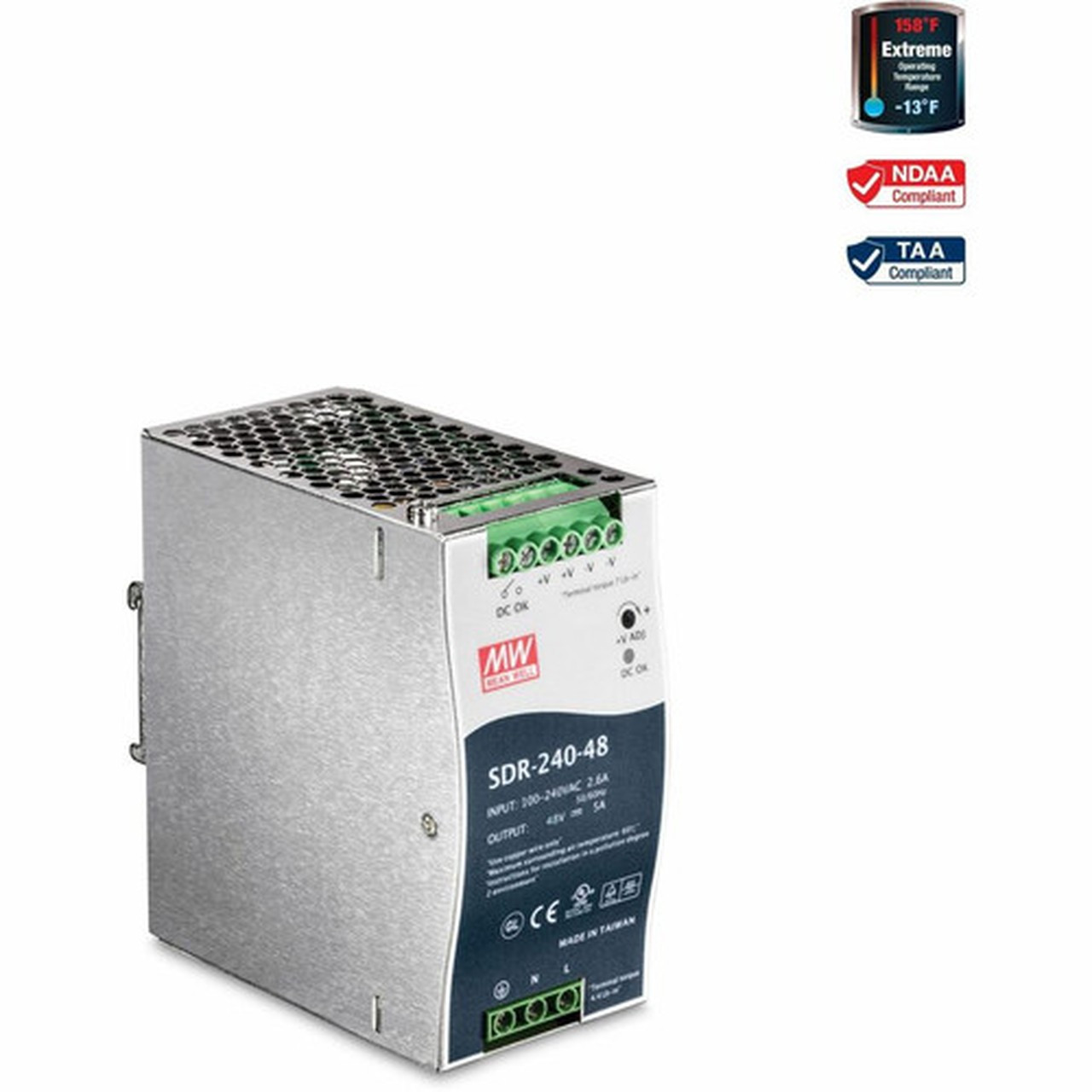

    TRENDnet's high efficiency 240 W Single Output Industrial DIN-Rail Power Supply, model TI-S24048 (Mean Well SDR-240-48), supplies up to 240 Watts (48 V, 5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection. NDAA / TAA compliant (U.S. and Canada only).

    240Watt

    Provides up to 240 Watts (48 V, 5 A) of power for PoE devices such as switches, network cameras, and access points

    Active PFC

    The built-in active Power Factor Controller (PFC, PF>0.93) helps eliminate unusable reactive power

    Overload Protection

    Overload/short circuit/over voltage/over temperature protection

    Full Load Test

    This power supply undergoes a 100 % full load burn-in test

    Passive Cooling

    Cooling by free air convection

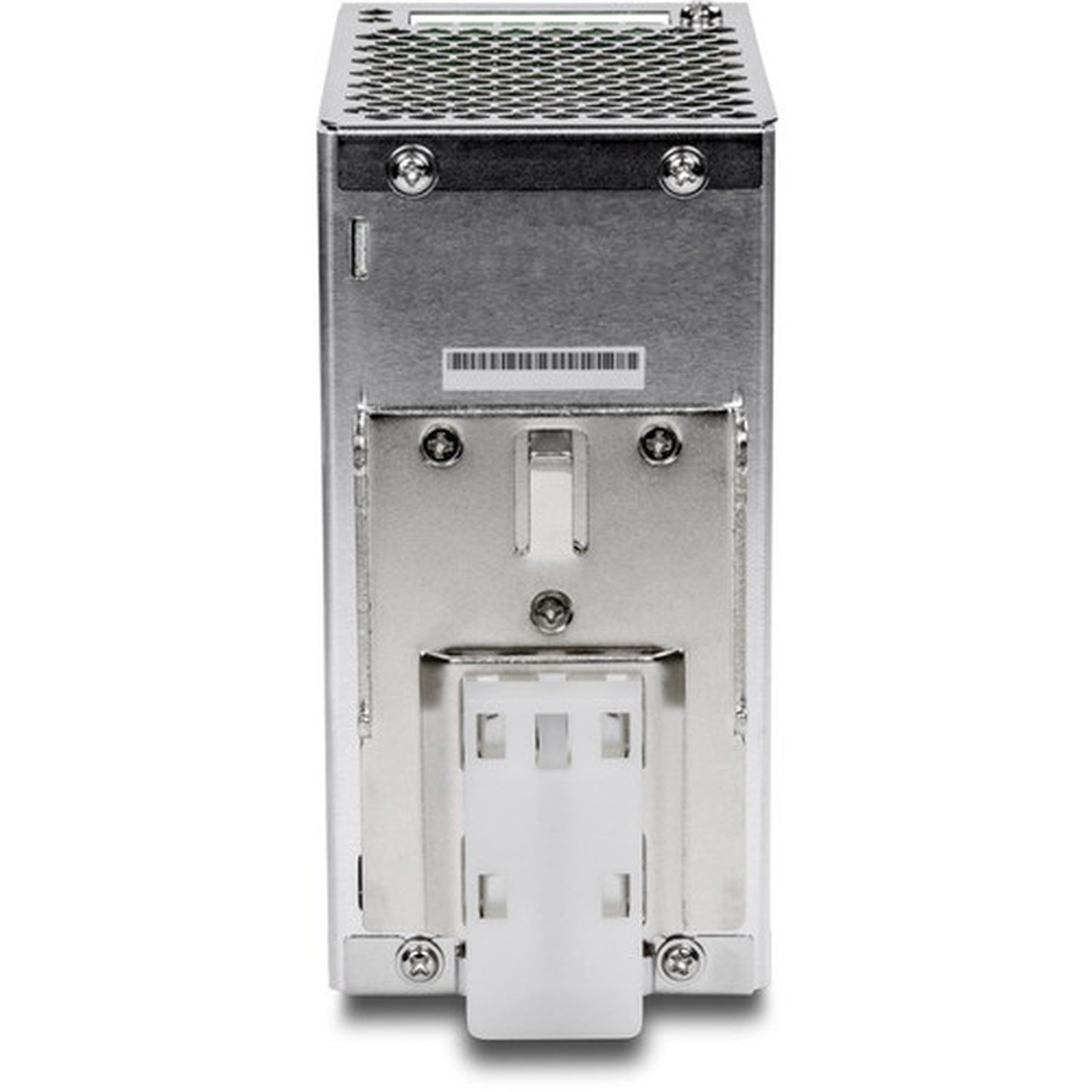

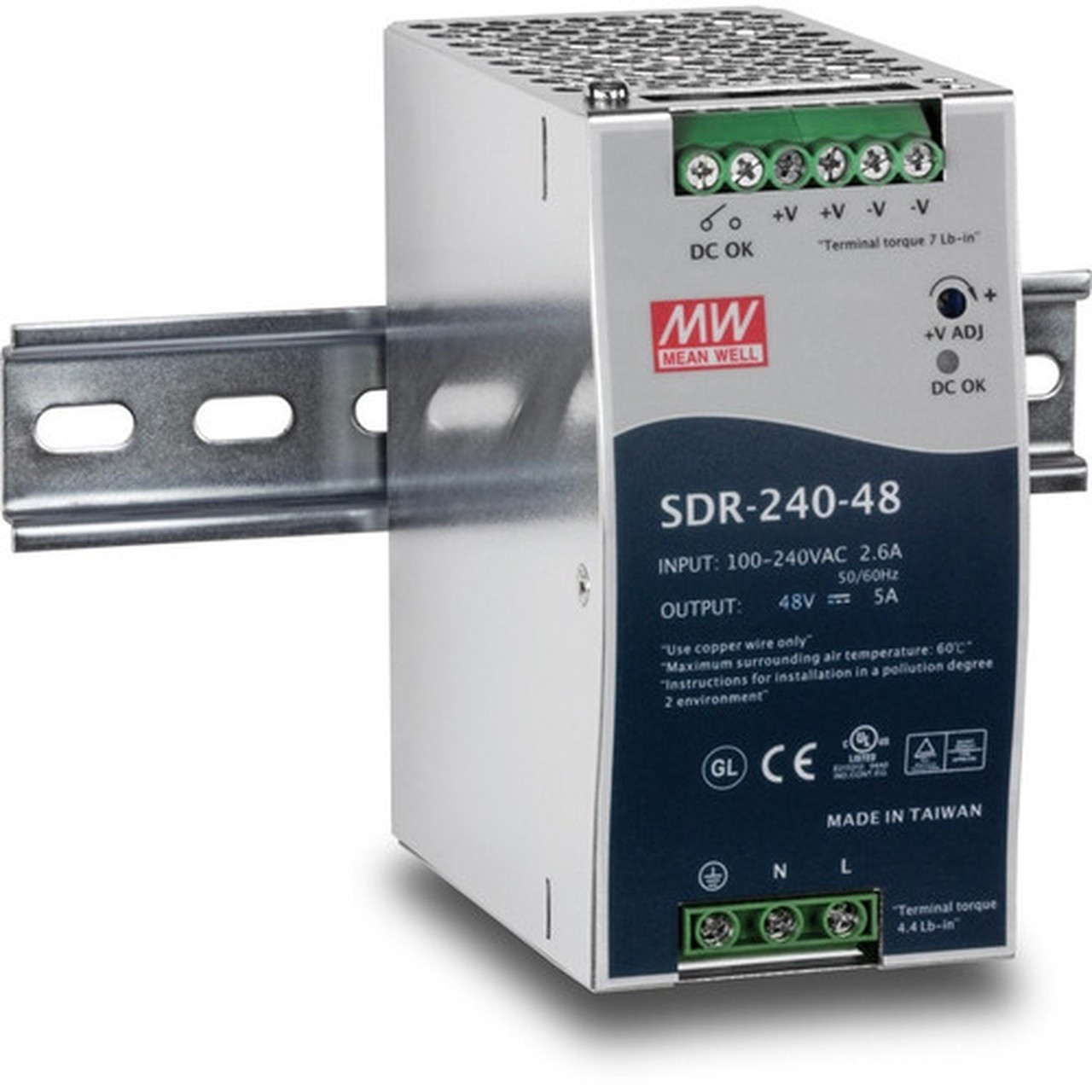

    DIN-Rail Mount

    Metal enclosure with integrated DIN-rail mount

    Extreme Temperatures

    Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)

    Safety Certifications

    Certified for UL 508 and TUV EN60950-1



      More from the Manufacturer


      Efficiency: 94%
      Output Voltage: 48 V DC
      Form Factor: DIN Rail
      Height: 3" (76.20 mm)
      Width: 7" (177.80 mm)
      Weight (Approximate): 1.30 kg
      Compatibility:
      • Network Cameras
      • Access Points
      • TRENDnet TI-PG80 Switch

      Country of Origin: Taiwan
      TAA Compliant: Yes
      Limited Warranty: 3 Year

    [custom-specifications]

    Specifications
    Manufacturer: TRENDnet
    Manufacturer Part Number: TIS24048
    Manufacturer Website Address: http://www.trendnet.com
    Brand Name: TRENDnet
    Product Model: TI-S24048
    Product Name: DIN Rail 48V 240W Power Supply for TI-PG80
    Product Condition: New
    Product Type: Proprietary Power Supply
    Technical Information
    Efficiency: 94%
    Power Description
    Output Voltage: 48 V DC
    Physical Characteristics
    Form Factor: DIN Rail
    Height: 3" (76.20 mm)
    Width: 7" (177.80 mm)
    Weight (Approximate): 1.30 kg
    Miscellaneous
    Compatibility:
    • Network Cameras
    • Access Points
    • TRENDnet TI-PG80 Switch

    Country of Origin: Taiwan
    TAA Compliant: Yes
    Warranty
    Limited Warranty: 3 Year

    [/custom-specifications]

    3 Year
