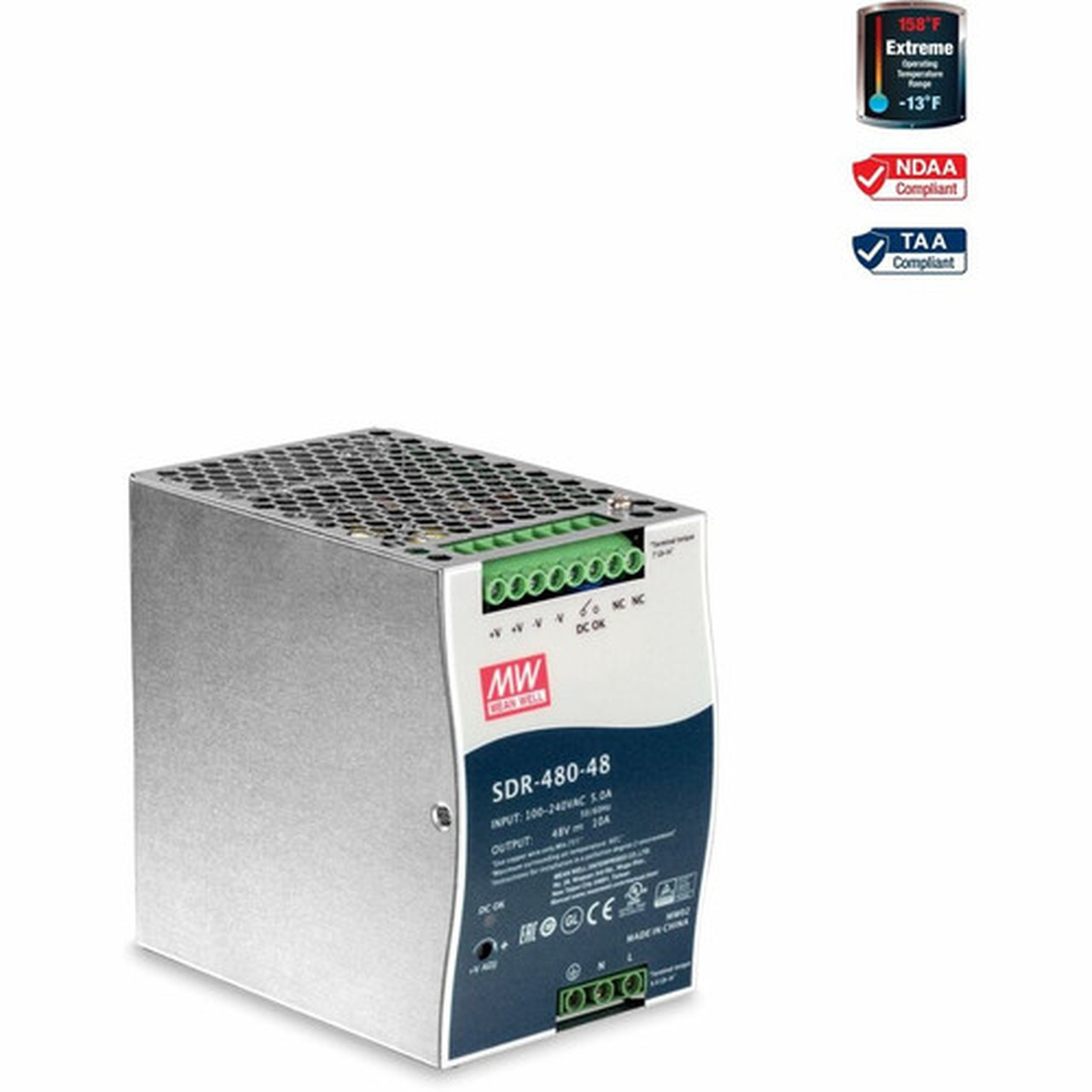

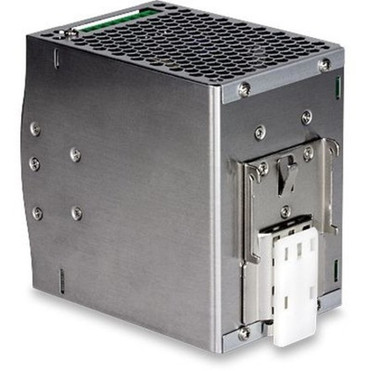

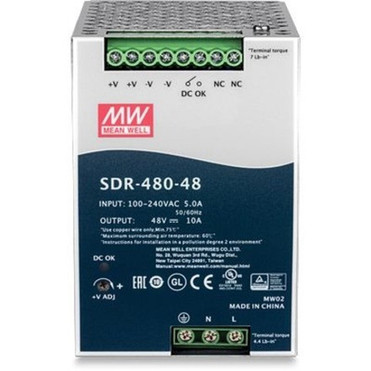

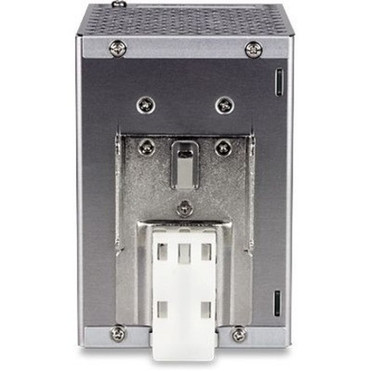

TRENDnet 480W, 48V DC, 10A AC to DC DIN-Rail Power Supply with PFC Function, TI-S48048 - 48V 480W Output Industrial (TI-S48048)
Write a Review
TRENDnet
TRENDnet 480W, 48V DC, 10A AC to DC DIN-Rail Power Supply with PFC Function, TI-S48048 - 48V 480W Output Industrial (TI-S48048)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Efficiency: 94%
Input Voltage: 120 V AC,230 V AC
Output Voltage: 48 V DC
Output Voltage Detail: 48 V DC @ 10 A
Output Current: 10 A
Output Power: 480 W
Form Factor: DIN Rail
Height: 3" (76.20 mm)
Width: 8" (203.20 mm)
Weight (Approximate): 3.53 lb (1600 g)
Country of Origin: China
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS)
Limited Warranty: 3 Year
- Industrial power supply with integrated DIN-rail mount
- Provides up to 480W of power (48V DC, 10A)
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active Power Factor Controller (PF > 0.94)
- Cooling by free air convection
- Protections: Short circuit, overload, over voltage, over temperature
- UL 508 approved
- Built-in DC OK relay contact
- 100% full load burn-in test
- -25° - 70° C (-13° - 158° F) operating temperature range
- NDAA / TAA compliant (U.S. and Canada only)
[custom-specifications]
| Specifications | |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TIS48048 |
| Manufacturer Website Address | http://www.trendnet.com |
| Brand Name | TRENDnet |
| Product Model | TI-S48048 |
| Product Name | 48V 480W Output Industrial |
| Product Condition | New |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 94% |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Output Voltage | 48 V DC |
| Output Voltage Detail | 48 V DC @ 10 A |
| Output Current | 10 A |
| Output Power | 480 W |
| Physical Characteristics | |
| Form Factor | DIN Rail |
| Height | 3" (76.20 mm) |
| Width | 8" (203.20 mm) |
| Weight (Approximate) | 3.53 lb (1600 g) |
| Miscellaneous | |
| Country of Origin | China |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
3 Year
