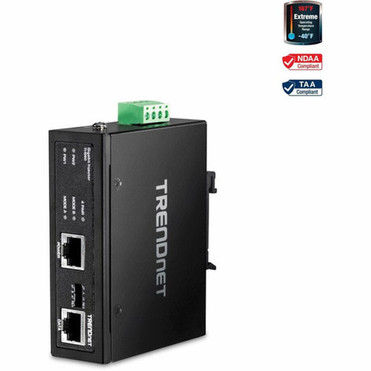

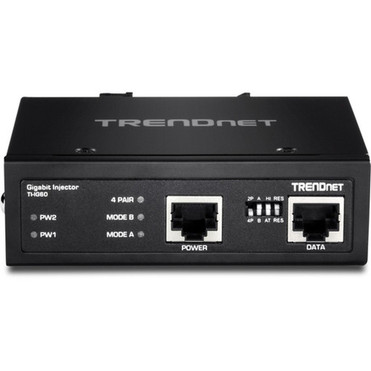

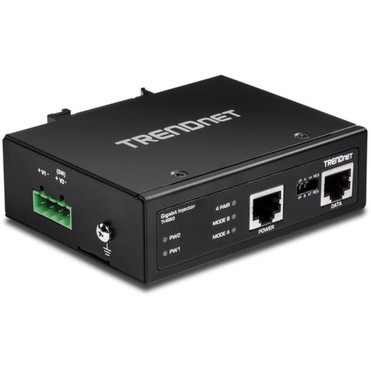

TRENDnet Hardened Industrial 60W Gigabit PoE+ Injector, DIN-Rail Mount, IP30 Rated Housing, Includes DIN-rail & Wall Mounts, TI-IG60 - (TI-IG60)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
- Hardened IP30 rated Gigabit PoE Injector
- PoE (15 W), PoE+ (30 W), high power PoE+ (36 W), or UPoE (60 W) power
- Network a PoE device located up to 100 meters (328 ft.) away
- Extreme -40 to 75 �C (-40 to 167 �F) operating temperature range
- Dual redundant power inputs with overload current protection
- Includes DIN-rail and wall mounts
- Power supply sold separately (model TI-S15052, TI-S12048)
- NDAA / TAA compliant
- Hardened Industrial 60 Watt Gigabit PoE+ Injector
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail And Wall Mount Kit
- CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
Marketing Information: TRENDnet's TI-IG60 is a reliable IP30 rated Industrial Gigabit UPoE Injector with hardened components rated for extreme industrial environments. Connect the TI-IG60 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG60 supplies power to a PoE (up to 15 W), PoE + (up to 30 W), high power PoE+ (36 W), or 60 Watt PoE device. Dual redundant power inputs (power supply sold separately: TI-S15052, TI-S12048) with overload current protection support zero downtime applications. Both DIN-rail and wall mount hardware is included.
Protection Type: Overload Protection
Input Voltage: 48 V DC,56 V DC
Maximum Output Power: 72 W
Input Ports: 1 x 10/100/1000Base-T
Output Ports: 1 x 10/100/1000Base-T
Form Factor: External
Mount Type: DIN Rail/Wall Mountable
Height: 3" (76.20 mm)
Width: 5" (127 mm)
Length: 10" (254 mm)
Weight (Approximate): 138 g
Package Contents:
Certifications & Standards:
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 3 Year
- Hardened IP30 rated Gigabit PoE Injector
- PoE (15 W), PoE+ (30 W), high power PoE+ (36 W), or UPoE (60 W) power
- Network a PoE device located up to 100 meters (328 ft.) away
- Extreme -40 to 75 �C (-40 to 167 �F) operating temperature range
- Dual redundant power inputs with overload current protection
- Includes DIN-rail and wall mounts
- Power supply sold separately (model TI-S15052, TI-S12048)
- NDAA / TAA compliant (U.S. and Canada only)
[custom-specifications]
Specifications | |
Manufacturer | TRENDnet |
Manufacturer Part Number | TI-IG60 |
Manufacturer Website Address | http://www.trendnet.com |
Brand Name | TRENDnet |
Product Model | TI-IG60 |
Product Name | Hardened Industrial 60 Watt UPoE Injector |
Product Condition | New |
Product Type | PoE Injector |
Technical Information | |
Protection Type | Overload Protection |
Power Description | |
Input Voltage | 48 V DC,56 V DC |
Maximum Output Power | 72 W |
Interfaces/Ports | |
Input Ports | 1 x 10/100/1000Base-T |
Output Ports | 1 x 10/100/1000Base-T |
Physical Characteristics | |
Form Factor | External |
Mount Type | DIN Rail/Wall Mountable |
Height | 3" (76.20 mm) |
Width | 5" (127 mm) |
Length | 10" (254 mm) |
Weight (Approximate) | 138 g |
Miscellaneous | |
Package Contents |
|
Certifications & Standards |
|
Country of Origin | Taiwan |
TAA Compliant | Yes |
Warranty | |
Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
3 Year
