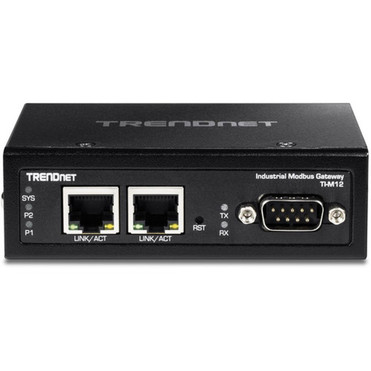

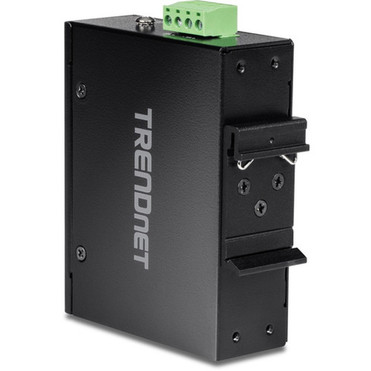

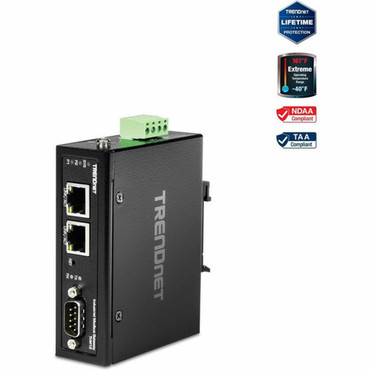

TRENDnet Industrial Modbus Gateway - Twisted Pair - 2 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - DIN Rail (TI-M12)
Write a Review
TRENDnet
TRENDnet Industrial Modbus Gateway - Twisted Pair - 2 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - DIN Rail (TI-M12)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Industrial Modbus Gateway
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail and Wall Mount Kit
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Standard: 10/100Base-TX
Network (RJ-45): Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of Serial Ports: 1
Input Voltage: 12 V DC,56 V DC
Input Voltage Range: 12V DC to 56V DC
Power Consumption: 3.84 W
Plug/Connector Type: Terminal Block
Form Factor: DIN Rail Mountable,Wall Mountable
Height: 1.22" (31 mm)
Width: 4.07" (103.50 mm)
Depth: 3.15" (80 mm)
Weight (Approximate): 5.43 oz (154 g)
Package Contents:
Country of Origin: Taiwan
Limited Warranty: Lifetime
- NDAA / TAA compliant (U.S. and Canada only)
[custom-specifications]
| Specifications | |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TIM12 |
| Manufacturer Website Address | http://www.trendnet.com |
| Brand Name | TRENDnet |
| Product Model | TI-M12 |
| Product Name | Industrial Modbus Gateway |
| Product Type | Device Server |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Standard | 10/100Base-TX |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of Serial Ports | 1 |
| Power Description | |
| Input Voltage | 12 V DC,56 V DC |
| Input Voltage Range | 12V DC to 56V DC |
| Power Consumption | 3.84 W |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Wall Mountable |
| Height | 1.22" (31 mm) |
| Width | 4.07" (103.50 mm) |
| Depth | 3.15" (80 mm) |
| Weight (Approximate) | 5.43 oz (154 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Information
Lifetime
