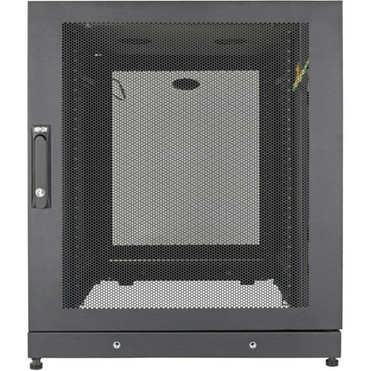

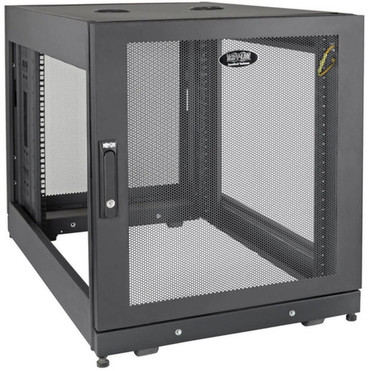

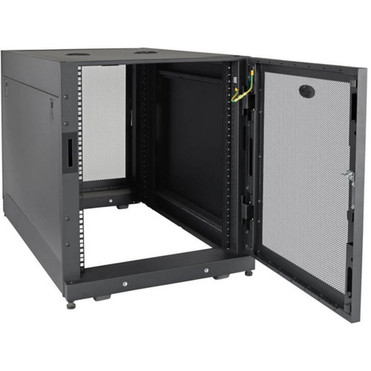

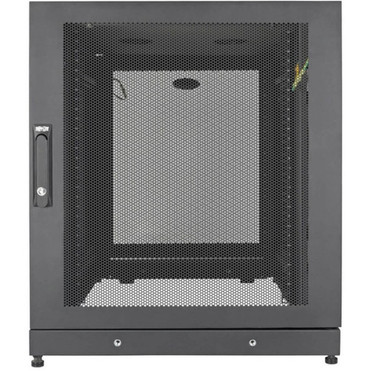

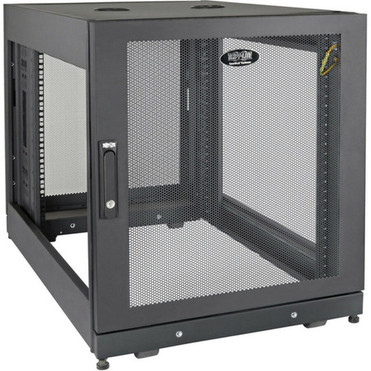

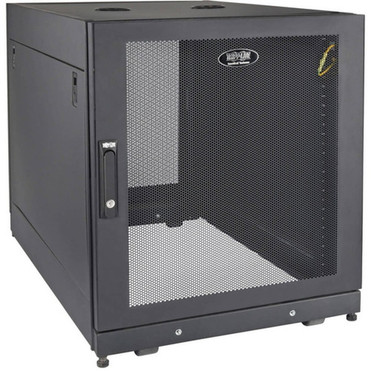

Tripp Lite 14U SmartRack Deep Server Rack - 42 in. Depth, Doors & Side Panels Included - For Server, Patch Panel, LAN Switch - 14U x x (SR14UBDP)

Marketing Information:

Deep Server Cabinet Accommodates 14U of Standard Rack Equipment

This SmartRack® 14U rack enclosure is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. It supports mounting of equipment up to 42 inches deep. This allows high-density equipment installations, extra space for cable management, and room for removing hot-swap power supplies from the rear of mounted devices. Constructed from heavy-duty steel with a durable black powder-coated finish, the SR14UBDP has a maximum load capacity of 1000 pounds.

Keeps Important Equipment Secure and Well Ventilated

The reversible front and rear doors and removable side panels lock securely to help prevent damage, tampering or theft. The doors, side panels and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors draw in cool air from outside and remove warm air to keep your equipment cool and functioning at their peak. The top panel also supports the installation of optional case fans (such as Tripp Lite's SRFANWM).

Easy Enclosure Deployment and Equipment Installation

This 14U server rack comes fully assembled for quick and easy deployment. Four metal casters (and installation hardware) are included that let you maneuver the rack cabinet over a level, smooth, stable surface and through a standard doorway into position, where it can be stabilized by adjusting the levelers. Front and rear mounting rails adjust in quarter-inch increments to accommodate equipment up to 42 inches deep. Adjustable vertical cable management rails help keep the back of the rack organized.

Meets Payment Card Industry Standards

The SR14UBDP provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.

Typical Applications

• Store and organize deeper-than-usual rack-mount equipment in a network closet, data center or other area where you need components to be secure

More from the Manufacturer

Application/Usage: Server,Patch Panel,LAN Switch

Form Factor: Floor Standing

Color Family: Other

Product Color: Black Powder Coat

Product Material: Steel

Dynamic/Rolling Weight Capacity: 454 kg

Static/Stationary Weight Capacity: 454 kg

Height: 28.23" (717 mm)

Width: 23.62" (600 mm)

Depth: 43.62" (1108 mm)

Rack Height: 14U

Rack Width: 19" (482.60 mm)

Rack Depth: 37" (939.80 mm)

Weight (Approximate): 53.50 kg

Package Contents:

• 14U SmartRack Deep Server Rack - 42 in. Depth, Doors & Side Panels Included
• 60 x M6 Screws
• 60 x M6 Washers
• 60 x M6 Cage Nuts
• 2 x Keys
• SRCaster Rolling Caster Kit
• Owner's Manual

Assembly Required: No

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 5 Year
