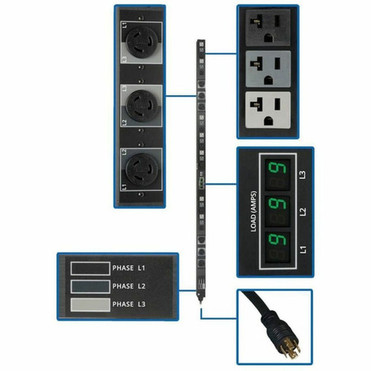

Tripp Lite by Eaton 3-Phase Metered PDU - NEMA L21-20P - 6 x NEMA L6-20R, 21 x NEMA 5-15/20R - 230 V AC - 5.70 kW - Vertical - (PDU3MV6L2120B)
Write a Review
Tripp Lite by Eaton
Tripp Lite by Eaton 3-Phase Metered PDU - NEMA L21-20P - 6 x NEMA L6-20R, 21 x NEMA 5-15/20R - 230 V AC - 5.70 kW - Vertical - (PDU3MV6L2120B)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 3-Phase Metered PDU
- Cord Retention Brackets
- Rack Mounting Brackets
- User Manual
Plug/Connector Type: NEMA L21-20P
Receptacle Type: NEMA L6-20R,NEMA 5-15/20R
Receptacle Detail: 6 x NEMA L6-20R,21 x NEMA 5-15/20R
Input Voltage: 230 V AC
Output Voltage: 120 V AC,208 V AC
Power Rating (Watt): 5.70 kW
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Height: 70" (1778 mm)
Width: 1.93" (49.02 mm)
Depth: 2.20" (55.88 mm)
Weight (Approximate): 12.57 lb (5700 g)
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports input current per-phase via built in current meters
- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)
- Toolless button-mount installation; cord retention brackets included
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU3MV6L2120B |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Series | Metered |
| Product Model | PDU3MV6L2120B |
| Product Name | 3-Phase Metered PDU |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | NEMA L21-20P |
| Receptacle Type | NEMA L6-20R,NEMA 5-15/20R |
| Receptacle Detail | 6 x NEMA L6-20R,21 x NEMA 5-15/20R |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC,208 V AC |
| Power Rating (Watt) | 5.70 kW |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Height | 70" (1778 mm) |
| Width | 1.93" (49.02 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 12.57 lb (5700 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
Additional-pdf3
Additional-pdf4
Additional-pdf5
[/custom-user-manual]
Warranty Information
2 Year
