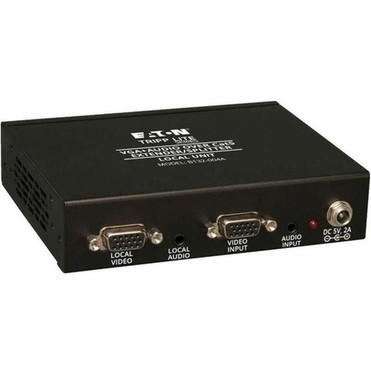

Tripp Lite by Eaton 4 Port Extender/Splitter Local (Transmitter) Unit - 1 Input Device - 4 Output Device - 1000 ft (304800 mm) Range - (B132-004A-2)
Write a Review
Tripp Lite by Eaton
Tripp Lite by Eaton 4 Port Extender/Splitter Local (Transmitter) Unit - 1 Input Device - 4 Output Device - 1000 ft (304800 mm) Range - (B132-004A-2)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance

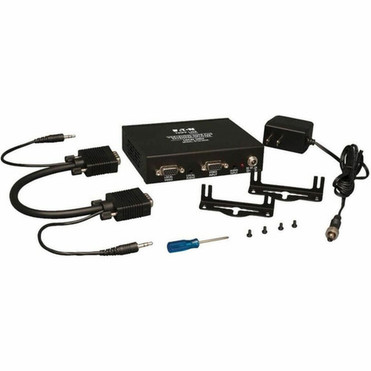

- 4 Port Extender/Splitter Local (Transmitter) Unit
- 1 ft. VGA Daisychain Cable
- Mounting Hardware
- External Power Supply (Input: 100-240V)
- Owner's Manual
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 4
Maximum Operating Distance: 1000 ft (304800 mm)
Maximum Video Resolution: 1920 x 1440
Network (RJ-45): Yes
VGA In: Yes
VGA Out: Yes

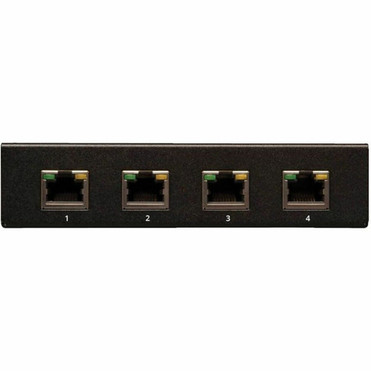

Number of Network (RJ-45) Ports: 4
Number of VGA Inputs: 1
Number of VGA Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Color Family: Black
Product Color: Black
Transmitter Height: 1.20" (30.48 mm)
Transmitter Width: 5.30" (134.62 mm)
Transmitter Depth: 3.90" (99.06 mm)
Form Factor: Rack-mountable,Wall Mountable,Pole-mountable
Transmitter Weight (Approximate): 13.60 oz (385.55 g)
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
- Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
- EDID copy feature ensures optimal display compatibility
- Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- Can further expand the range and number of monitors by adding B132-110A repeaters
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B132-004A-2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B132-004A-2 |
| Product Name | 4 Port Extender/Splitter Local (Transmitter) Unit |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 4 |
| Maximum Operating Distance | 1000 ft (304800 mm) |
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| VGA In | Yes |
| VGA Out | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Number of VGA Inputs | 1 |
| Number of VGA Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 1.20" (30.48 mm) |
| Transmitter Width | 5.30" (134.62 mm) |
| Transmitter Depth | 3.90" (99.06 mm) |
| Form Factor | Rack-mountable,Wall Mountable,Pole-mountable |
| Transmitter Weight (Approximate) | 13.60 oz (385.55 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite N202-050-BL Cat6 Patch Cable - Category 6 - 50ft - 1 x RJ-45 Male Network - 1 x RJ-45 Male Network - Blue |
| SKU | N202-050-BL |
| Sale Price | $24.09 |
| Product | Tripp Lite by Eaton B132-004-RB Mounting Bracket for Video Splitter - 40 lb (18143.69 g) Load Capacity |
| SKU | B132-004-RB |
| Sale Price | $52.18 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
