Tripp Lite by Eaton BC600R 600VA Desktop/Surface/Wall Mountable UPS - Desktop/Surface/Wall Mountable - 8 Hour Recharge - 1.50 Minute - (BC600R)
Write a Review
Tripp Lite by Eaton
Tripp Lite by Eaton BC600R 600VA Desktop/Surface/Wall Mountable UPS - Desktop/Surface/Wall Mountable - 8 Hour Recharge - 1.50 Minute - (BC600R)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Low Battery or Fault Condition
- Power and Line/battery Mode Status
- BC600R 600VA Desktop/Surface/Wall Mountable UPS
- 4 x M4 x 12 mm Screws
- 4 x M4 x 20 mm Screws
- Quick Start Guide

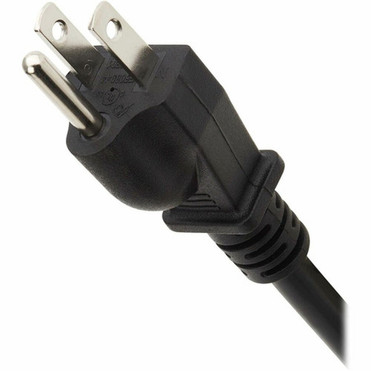

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 4 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Cord Length: 5 ft (1.52 m)
Transfer Time: 10 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Efficiency Detail: 97% (AC Mode)
Application/Usage: POS,Network,Retail,Kiosk,Industrial,Food Service,Home Network,Wireless Access Point,Desktop,Computer Peripheral,Home/Office,Hospital
Features: Audible Alarm,Cold Start Function,Green Energy Saving
Load Capacity (VA): 600 VA
Load Capacity (Watt): 300 W
Input Voltage: 120 V AC
Input Current: 5 A
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 190 J
Circuit Breaker: Yes
Output Power Factor: 0.5
Status Indicators:
LED Indicators:
DC System Voltage: 12 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 1.50 Minute
Backup/Run Time (Half Load): 5 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Maximum Operating Elevation: 6561.68 ft (2000000 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 122°F (50°C)
Sound Emission: 40 dB
Height: 2.28" (57.91 mm)
Width: 10.04" (255.02 mm)
Depth: 7.09" (180.09 mm)
Form Factor: Desktop/Surface/Wall Mountable
Weight (Approximate): 4.41 lb (2000.34 g)
Package Contents:
Energy Star: Yes
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Compact in size and offers highly efficient solution
- Prevent critical data loss by staying powered during a blackout with up to 300 W load capacity
- Up to 1.50 minute runtime on full load to preserve critical data from power shortage interruptions
- 600 VA load capacity provides sufficient backup during power failures
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | BC600R |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | BC600R |
| Product Name | BC600R 600VA Desktop/Surface/Wall Mountable UPS |
| Packaged Quantity | 1 Each |
| Product Type | Standby UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Cord Length | 5 ft (1.52 m) |
| Transfer Time | 10 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 97% (AC Mode) |
| Application/Usage | POS,Network,Retail,Kiosk,Industrial,Food Service,Home Network,Wireless Access Point,Desktop,Computer Peripheral,Home/Office,Hospital |
| Features | Audible Alarm,Cold Start Function,Green Energy Saving |
| Power Description | |
| Load Capacity (VA) | 600 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Input Current | 5 A |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 190 J |
| Circuit Breaker | Yes |
| Output Power Factor | 0.5 |
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Battery Information | |
| DC System Voltage | 12 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 1.50 Minute |
| Backup/Run Time (Half Load) | 5 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 6561.68 ft (2000000 mm) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Sound Emission | 40 dB |
| Physical Characteristics | |
| Height | 2.28" (57.91 mm) |
| Width | 10.04" (255.02 mm) |
| Depth | 7.09" (180.09 mm) |
| Form Factor | Desktop/Surface/Wall Mountable |
| Weight (Approximate) | 4.41 lb (2000.34 g) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Information
2 Year
