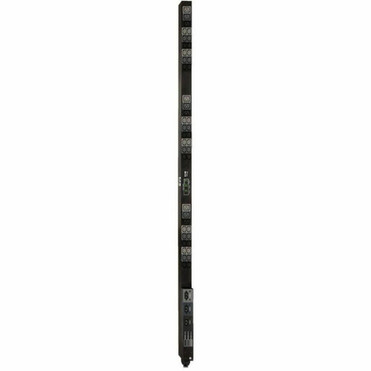

Tripp Lite by Eaton Metered PDU3MV6H50 45-Outlets PDU - Hubbell CS8365C - 9 x IEC 60320 C19, 36 x IEC 60320 C13 - 230 V AC - 12.60 kW (PDU3MV6H50)
Write a Review
Tripp Lite by Eaton
Tripp Lite by Eaton Metered PDU3MV6H50 45-Outlets PDU - Hubbell CS8365C - 9 x IEC 60320 C19, 36 x IEC 60320 C13 - 230 V AC - 12.60 kW (PDU3MV6H50)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Metered PDU3MV6H50 45-Outlets PDU
- Cord Retention Brackets
- Rack Mounting Brackets
- Owner's Manual
Plug/Connector Type: Hubbell CS8365C
Receptacle Type: IEC 60320 C19,IEC 60320 C13
Receptacle Detail: 9 x IEC 60320 C19,36 x IEC 60320 C13
Protection Type: Overload Protection
Input Voltage: 230 V AC
Output Voltage: 208 V AC
Power Rating (Watt): 12.60 kW
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Height: 70" (1778 mm)
Width: 2.65" (67.31 mm)
Depth: 2.20" (55.88 mm)
Weight (Approximate): 14.50 lb (6577.09 g)
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Metered 12.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount

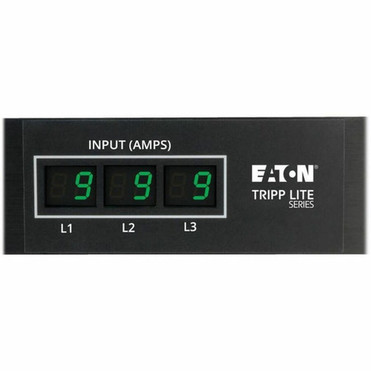

- Reports load current per-phase via set of 3 built-in current meters
- Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 45 208V outlets total (36 C13, 9 C19)
- Toolless button-mount installation; cord retention brackets included
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU3MV6H50 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Series | Metered |
| Product Model | PDU3MV6H50 |
| Product Name | Metered PDU3MV6H50 45-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | Hubbell CS8365C |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 9 x IEC 60320 C19,36 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 12.60 kW |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Height | 70" (1778 mm) |
| Width | 2.65" (67.31 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 14.50 lb (6577.09 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite 6ft Power Cord Extension Cable C19 to C20 Heavy Duty 20A 12AWG 6' - 250V AC1.83m |
| SKU | P036006 |
| Sale Price | $22.94 |
| Product | Tripp Lite 2ft Computer Power Cord Cable C19 to C20 Heavy Duty 20A 12AWG 2' - 250V AC0.61m |
| SKU | P036002 |
| Sale Price | $21.92 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
Additional-pdf3
Additional-pdf4
Additional-pdf5
Additional-pdf6
[/custom-user-manual]
Warranty Information
2 Year
