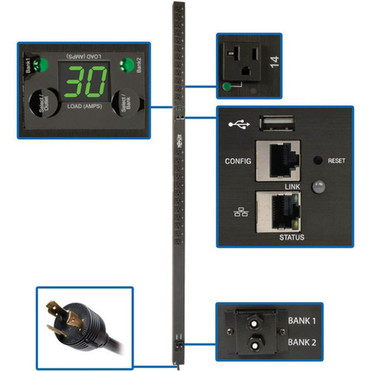

Tripp Lite by Eaton PDUMVR30NETLX 24-Outlet PDU - Switched - NEMA L5-30P - 24 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - (PDUMVR30NETLX)
Write a Review
Tripp Lite by Eaton
Tripp Lite by Eaton PDUMVR30NETLX 24-Outlet PDU - Switched - NEMA L5-30P - 24 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - (PDUMVR30NETLX)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- IPv4
- IPv6
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- telnet
- SSH
- FTP
- DHCP
- NTP

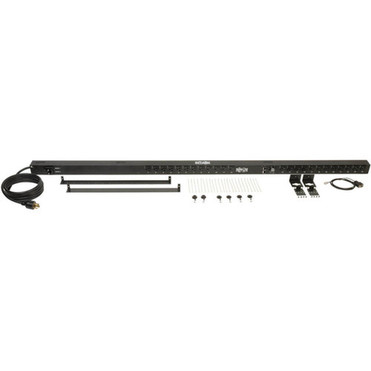

- PDUMVR30NETLX 24-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- Cord Retention Brackets
- 24 x Cable Ties
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
PDU Type: Switched
Phase: Single Phase
Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA 5-15/20R
Receptacle Detail: 24 x NEMA 5-15/20R
Protection Type: Overload Protection
Input Voltage: 120 V AC
Output Voltage Range: 100 V AC - 127 V AC
Power Rating (Watt): 3.05 kW
Input Current: 30 A
Management: Protocols:
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 0U
Height: 70" (1778 mm)
Width: 2.20" (55.88 mm)
Depth: 2.04" (51.82 mm)
Weight (Approximate): 9.94 lb (4508.71 g)
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- PDU distributes AC power to multiple servers and balances the load on the servers
- With switched PDU, remotely monitor, connect or disconnect data center loads
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMVR30NETLX |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Eaton |
| Product Model | PDUMVR30NETLX |
| Product Name | PDUMVR30NETLX 24-Outlet PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 127 V AC |
| Power Rating (Watt) | 3.05 kW |
| Input Current | 30 A |
| Management | |
| Management | Protocols:
|
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2.04" (51.82 mm) |
| Weight (Approximate) | 9.94 lb (4508.71 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite 10ft Power Cord Cable 5-15P to C19 Heavy Duty 15A 14AWG 10' - 125V AC3.05m |
| SKU | P034010 |
| Sale Price | $29.17 |
| Product | Tripp Lite 6ft Computer Power Cord Cable 5-15P to C13 Heavy Duty 15A 14AWG 6' - 220V AC - 15A - 1.83m |
| SKU | P007-006 |
| Sale Price | $9.96 |
| Product | Tripp Lite series PDUMVROTATEBRKT Mounting Bracket - 2 |
| SKU | PDUMVROTATEBRKT |
| Sale Price | $71.12 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
2 Year
