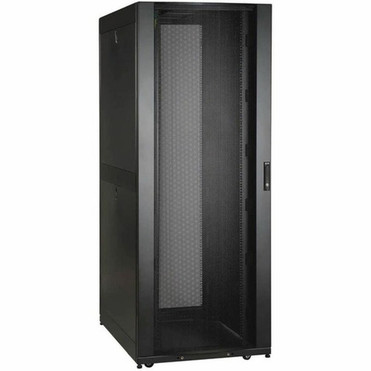

Tripp Lite by Eaton SmartRack SR48UBWDSP1 Rack Cabinet - 48U Rack Height x 19" (482.60 mm) Rack Width - Black - 1020.58 kg Weight - kg (SR48UBWDSP1)

Marketing Information:

Wide version of our standard 48U SmartRack Enclosure but ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. The pallet's protective cushion safeguards the enclosure and the precision components it contains during re-shipping. Reinforced pallets and reusable packaging provide the flexibility to fully configure rack enclosures in a centralized location and safely re-ship them to remote sites, saving significant service costs. They also allow the freedom to custom-configure enclosures with network and server hardware along with UPS systems, PDUs, KVM switches and a variety of other devices prior to final installation. At the desired location the SR48UBWDSP1 can be easily maneuvered with its preinstalled casters and can be secured by adjusting the preinstalled levelers.

The SR48UBWDSP1 is 750mm wide (30") compared to the standard 600mm wide (24") This extra width allows for high density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling.

The SR48UBWDSP1 houses 3000lbs of standard 19-inch rack equipment in 48U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

The top panel of the SR48UBWDSP1 is vented to help remove warm air from the enclosure and draw in cool air by convection. the top panel includes ports for cable routing, and can be quickly removed without tools. The facilitate cable access, the SR48UBWDSP1 is open-bottom.

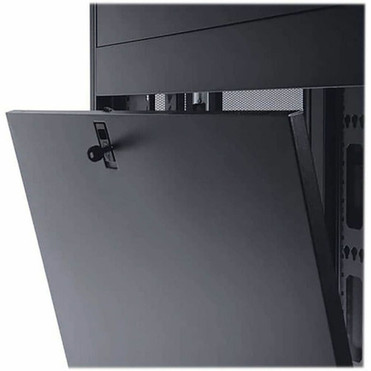

All components of the SR48UBWDSP1 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

The SR48UBWDSP1 comes with a 5-year product warranty. As part of the SmartRack family it is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirements.

Color Family: Black

Product Color: Black

Dynamic/Rolling Weight Capacity: 1020.58 kg

Static/Stationary Weight Capacity: 1360.78 kg

Height: 89" (2260.60 mm)

Width: 29.53" (750.06 mm)

Depth: 43" (1092.20 mm)

Rack Height: 48U

Rack Width: 19" (482.60 mm)

Weight (Approximate): 155.58 kg

Package Contents:

• SmartRack SR48UBWDSP1 Rack Cabinet
• 2 x Accessory Mounting Rails
• 50 x M6 Cage Nuts
• 50 x M6 Screws

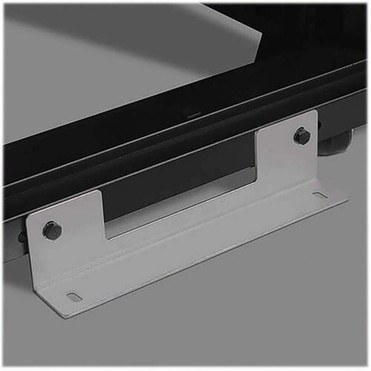

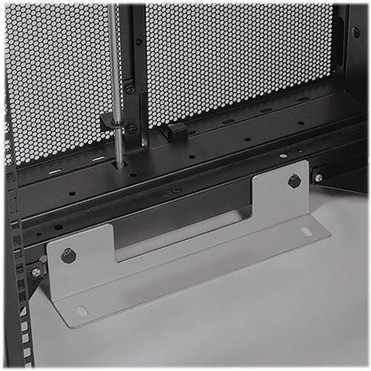

• Stabilizing Brackets
• 4 x Side Panels
• 4 x Side Panel Locks
• 2 x Door and Side Panel Keys
• 50 x M6 Washers
• Owner's Manual

Assembly Required: No

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 5 Year
