- SRW18USG SmartRack 18U Low-Profile Switch-Depth WallMount Rack Enclosure Cabinet
- 42 x M6 Screws
- 42 x M6 Cage Nuts
- 42 x M6 Washers
- 42 x 12-24 Screws
- 2 x Keys
- Owner's Manual
Marketing Information:
The SRW18USG SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

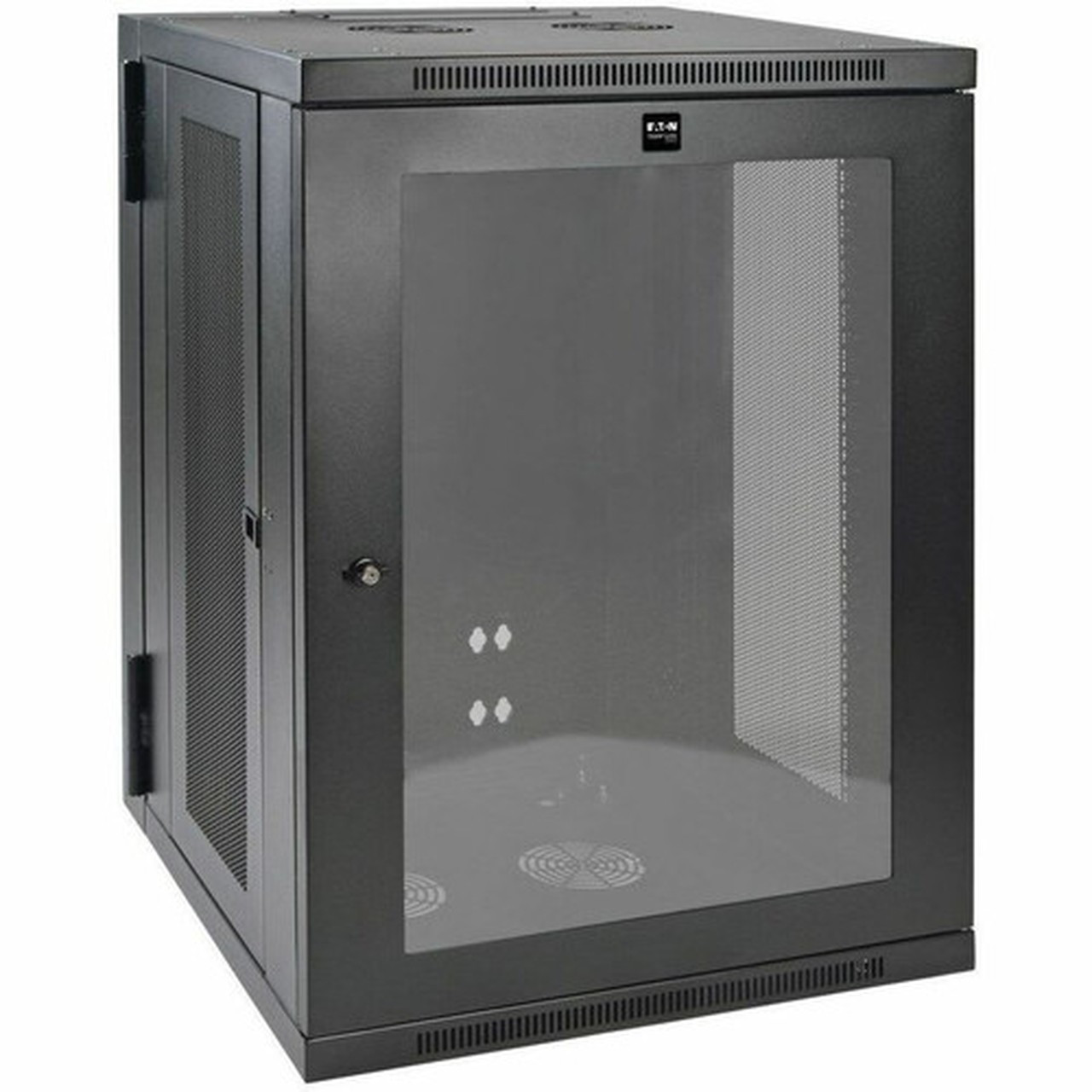

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

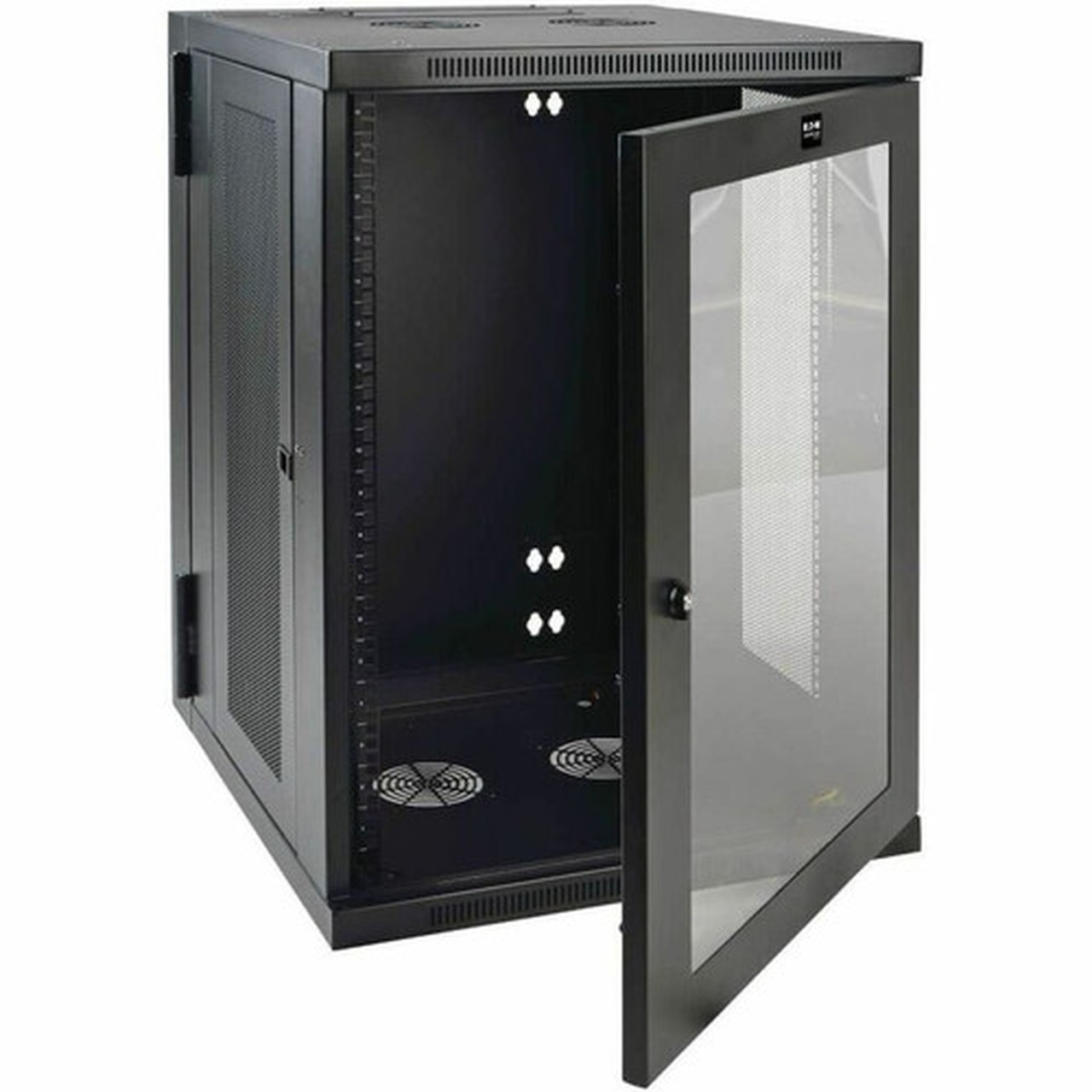

The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

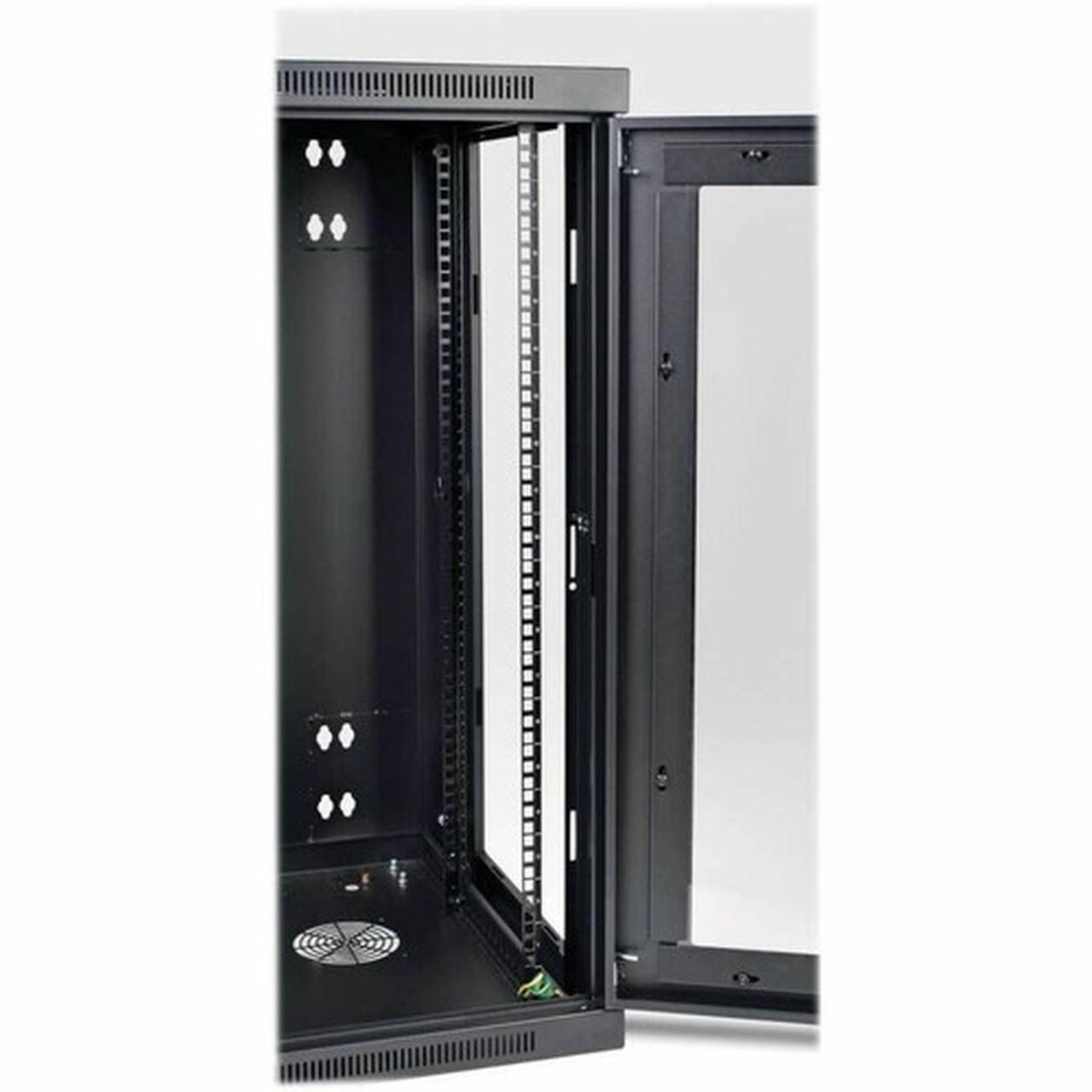

The SRW18USG comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 20.5 inches deep, such as network switches and patch panels.
Application/Usage: LAN Switch,Patch Panel
Features: Cable Management
Form Factor: Wall Mountable
Color Family: Other
Product Color: Black Powder Coat
Product Material: Acrylic,Steel
Maximum Weight Capacity: 90.72 kg
Static/Stationary Weight Capacity: 113.40 kg
Height: 35.60" (904.24 mm)
Width: 23.62" (599.95 mm)
Depth: 21.60" (548.64 mm)
Rack Height: 18U
Rack Width: 19" (482.60 mm)
Rack Depth: 10.42" (264.67 mm)
Weight (Approximate): 43.54 kg
Package Contents:
Assembly Required: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Maximum load capacity of 250 lb.
- Swings away from wall bracket on a hinge for easy access
- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 18U of 19 in. rack equipment up to 20.5 in. deep
[custom-specifications]
Specifications | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | SRW18USG |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Line | SmartRack |
Product Model | SRW18USG |
Product Name | SRW18USG SmartRack 18U Low-Profile Switch-Depth WallMount Rack Enclosure Cabinet |
Product Type | Rack Cabinet |
Technical Information | |
Application/Usage | LAN Switch,Patch Panel |
Features | Cable Management |
Physical Characteristics | |
Form Factor | Wall Mountable |
Color Family | Other |
Product Color | Black Powder Coat |
Product Material | Acrylic,Steel |
Maximum Weight Capacity | 90.72 kg |
Static/Stationary Weight Capacity | 113.40 kg |
Height | 35.60" (904.24 mm) |
Width | 23.62" (599.95 mm) |
Depth | 21.60" (548.64 mm) |
Rack Height | 18U |
Rack Width | 19" (482.60 mm) |
Rack Depth | 10.42" (264.67 mm) |
Weight (Approximate) | 43.54 kg |
Miscellaneous | |
Package Contents |
|
Assembly Required | No |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 5 Year |
[/custom-specifications]
