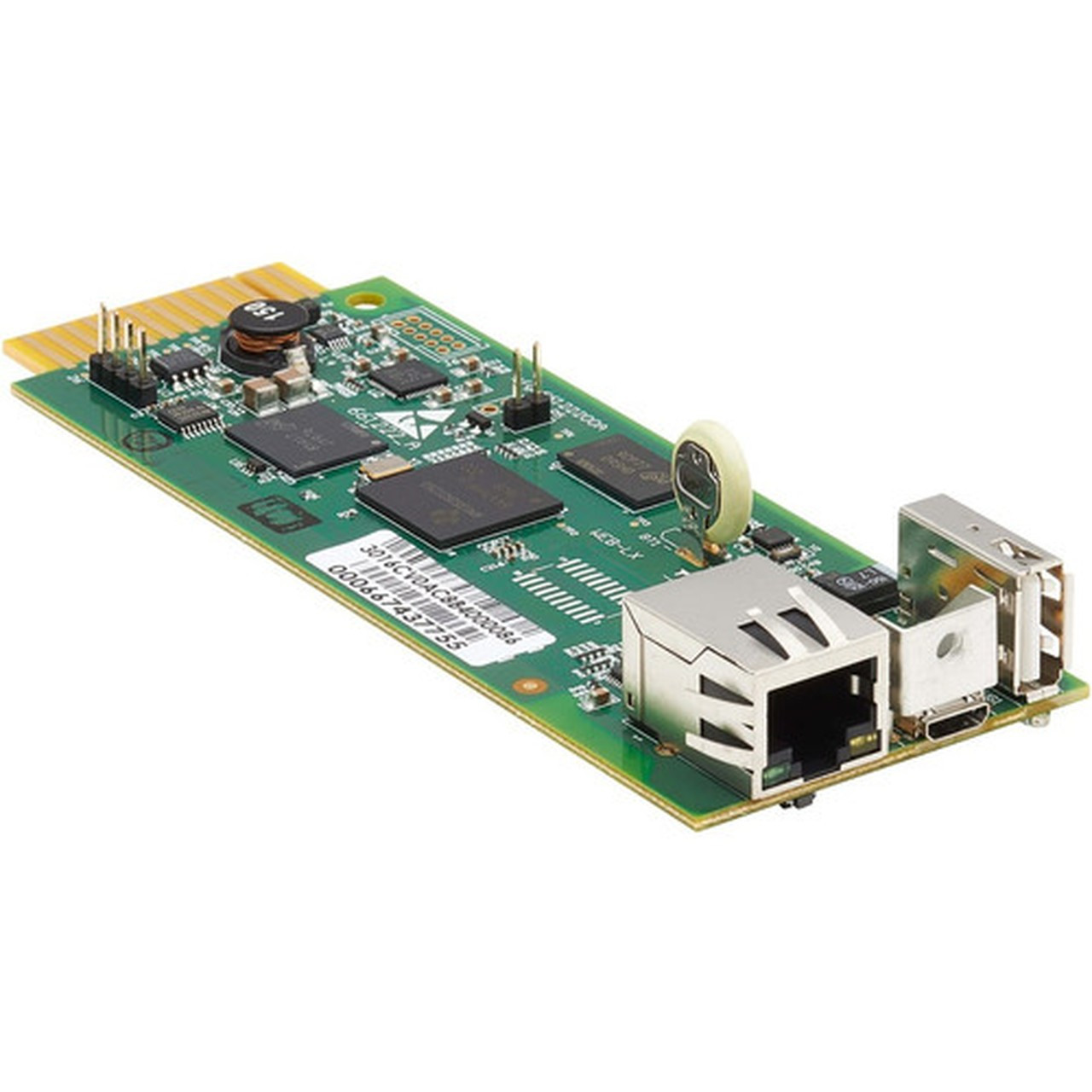

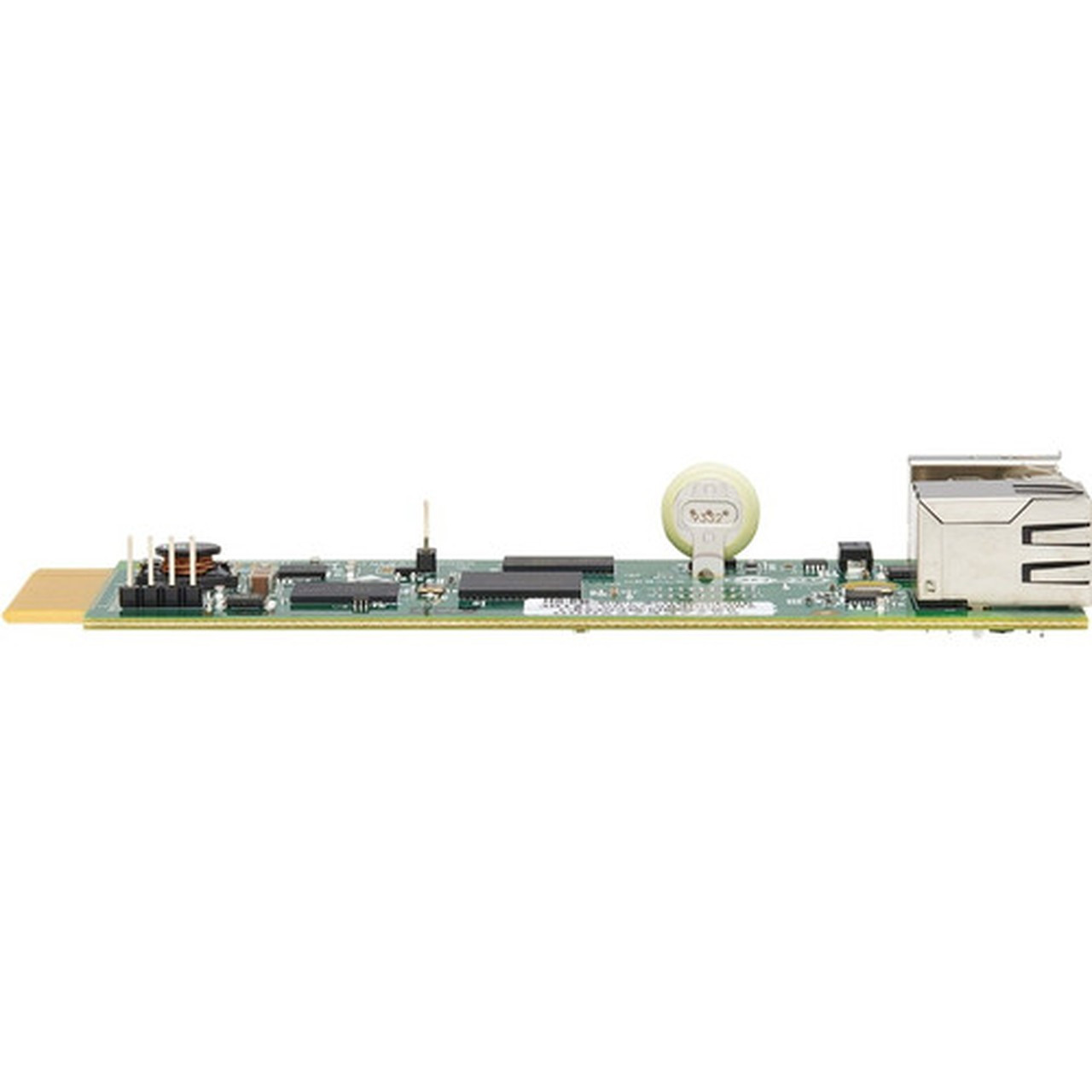

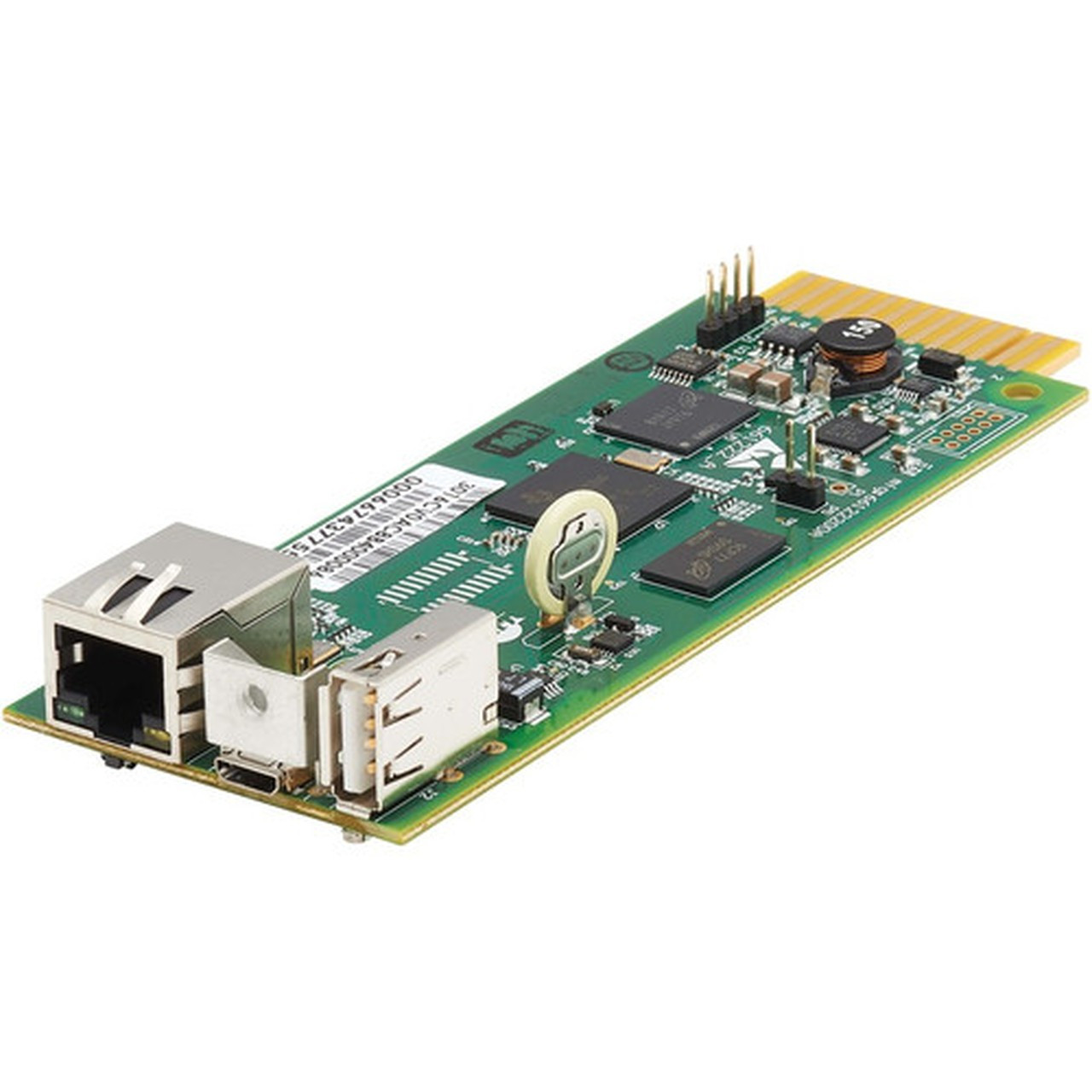

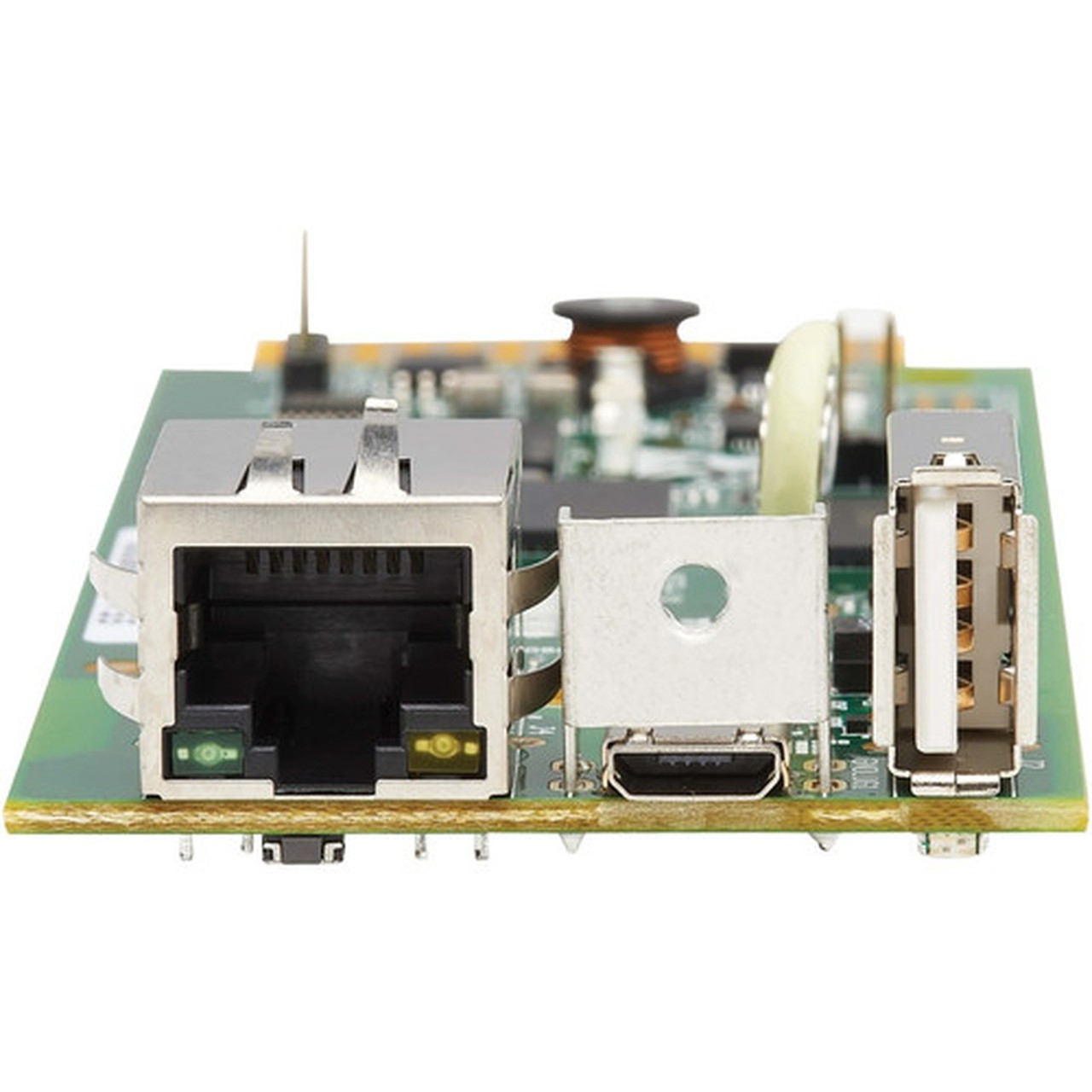

Tripp Lite by Eaton WEBCARDLXMINI Web Management Accessory Card for Select Tripp Lite UPS Systems - 1 x Network (RJ-45) Port(s) - USB (WEBCARDLXMINI)

Marketing Information:

Allows Any Compatible Tripp Lite UPS System to Function as a Managed Network Device

The WEBCARDLXMINI Web Management Accessory Card turns a compatible Tripp Lite UPS system into a managed device on your network. By inserting it into an accessory slot and using an SNMP network management platform, web browser, SSH or Telnet, you can monitor, control and reboot the device from almost anywhere at any time. Its HTML5-based interface means Java isn't needed to interact with the mobile-friendly PowerAlert® Device Manager.

Remotely Monitor and Reboot Network Equipment from Anywhere 24/7

You can remotely monitor and log site electrical data, UPS self-tests, alerts and power events like blackouts, brownouts and over-voltage conditions. You can also reboot locked network equipment without an on-site visit or disruption of power to other loads (when used with controllable outlets or remotely switchable outlets on select devices). The WEBCARDLXMINI is compatible with Tripp Lite's SmartPro® Extreme Temperature UPS systems when internal temperatures are between 0°C and 70°C.

Control Access and Stay Informed with Event Notifications

You can assign users different levels of access from full administrator to view-only operator. Multiple user support allows viewing by more than one user simultaneously. In addition, you can create an encrypted connection using your web browser's SSL setting. Based on your preferences, the WEBCARDLXMINI can notify you of events and power conditions with email messages or SNMP traps. It can also automatically shut down remote operating systems over your network. Real-time clock support maintains current day and date, even after a UPS shutdown.

Check Environmental Data with an Optional EnviroSense2

When connected to EnviroSense2 modules (sold separately), the WEBCARDLXMINI can control digital outputs and monitor temperature, humidity and contact closure state (features vary by module). Up to three EnviroSense2 modules may be daisy-chained together and mounted magnetically to your rack.

Save Time with Mass Configurations

With a free downloadable utility (available from Tripp Lite's website), you can replicate the configuration of one WEBCARDLXMINI-enabled device to other comparable devices. It's also possible to update the firmware of multiple WEBCARDLXMINIs over the network at the same time.

Hassle-Free Compatibility

The WEBCARDLXMINI supports multiple protocols, including IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, FTP and DHCP. 10/100 Mbps auto-sensing ensures optimal communication compatibility with the current 10/100 Base-T network. DHCP/Manual configuration support permits network settings to be assigned automatically or manually.

Management: UPS Monitoring

Protocols: IPv4,IPv6,HTTP,HTTPS,SMTPS,SNMP v1,SNMPv2c,SNMPv3,Telnet,SSH,FTP,DHCP

USB: Yes

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 1

Ethernet Technology: Fast Ethernet

Package Contents:

• WEBCARDLXMINI Web Management Accessory Card for Select Tripp Lite UPS Systems
• USB Micro-B to USB-A Cable
• Faceplates
• Owner's Manual

Compatibility: Tripp Lite UPS Systems

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
