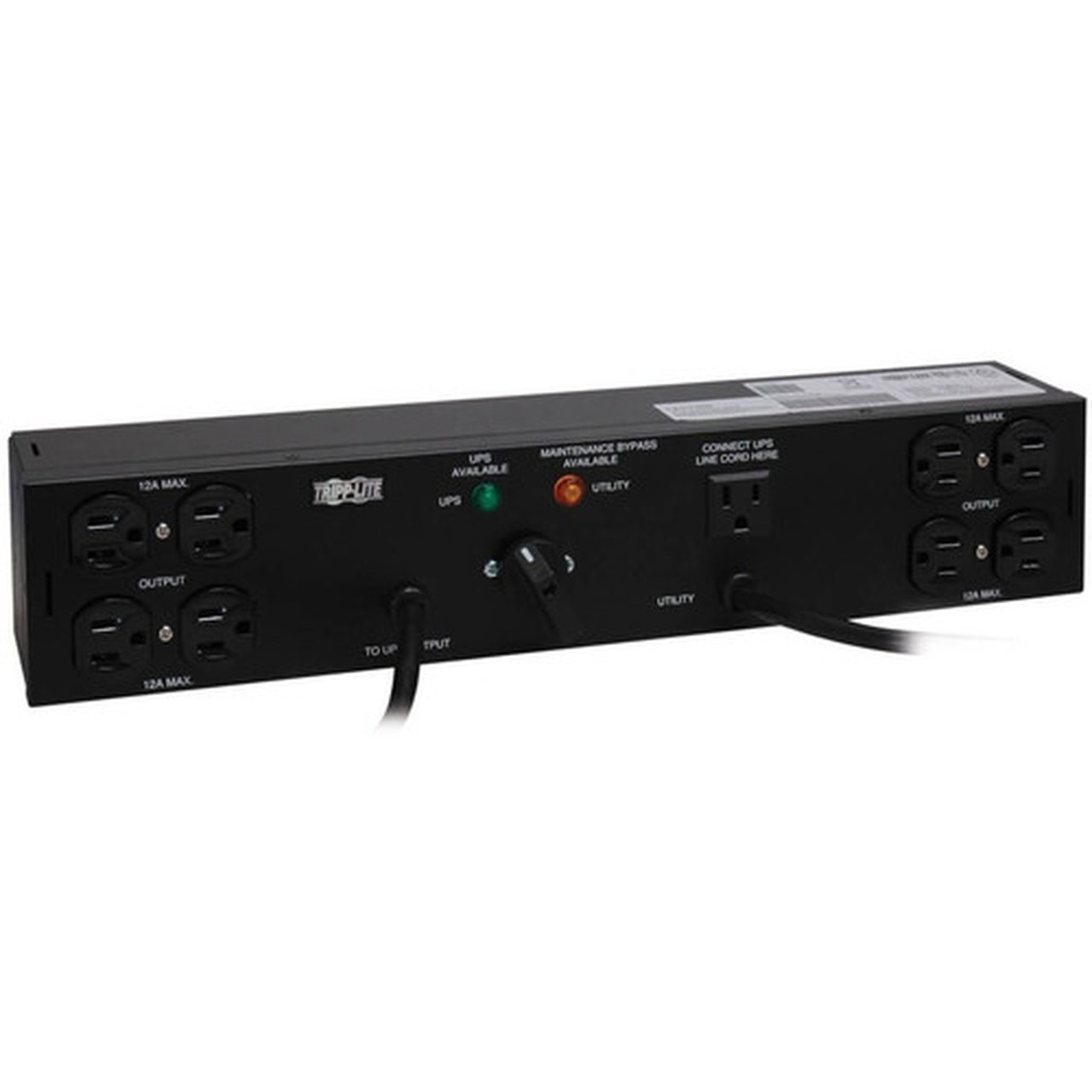

Tripp Lite PDUB15 PDU Dual Source Hot Swap 12A 8 Outlet - 8 x NEMA 5-15R - 1.44kVA - 2U Horizontal Rackmount (PDUB15)

Marketing Information:

Tripp Lite's Hot-swap PDU systems enable live-replacement of standard UPS systems for maintenance with no interruption of connected server or networking loads. Dual input power cables support PDU connection to separate Utility and UPS power sources. Manual transfer switch with lighted status indicators controls the source of power to connected equipment between Utility and UPS. Set the switch to UPS during normal operation and connected equipment will receive full-time conditioned power from the UPS. Set the switch to Utility to momentarily power connected equipment from the Utility line cord and bypass the UPS while the UPS system is removed and replaced with a fresh one. Once the new UPS is up and running with all data and electrical connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS power to connected equipment.

Plug/Connector Type: NEMA 5-15P

Plug/Connector Detail: 2 x NEMA 5-15P

Receptacle Type: NEMA 5-15R

Receptacle Detail: 8 x NEMA 5-15R

Input Voltage: 120 V AC

Output Voltage: 127 V AC

Power Rating (VA): 1.44 kVA

Mounting Orientation: Horizontal

Mount Type: Rack-mountable

Rack Height: 2U

Height: 3.42" (86.87 mm)

Width: 17.32" (439.93 mm)

Depth: 3.03" (76.96 mm)

Weight (Approximate): 7.70 lb (3492.66 g)

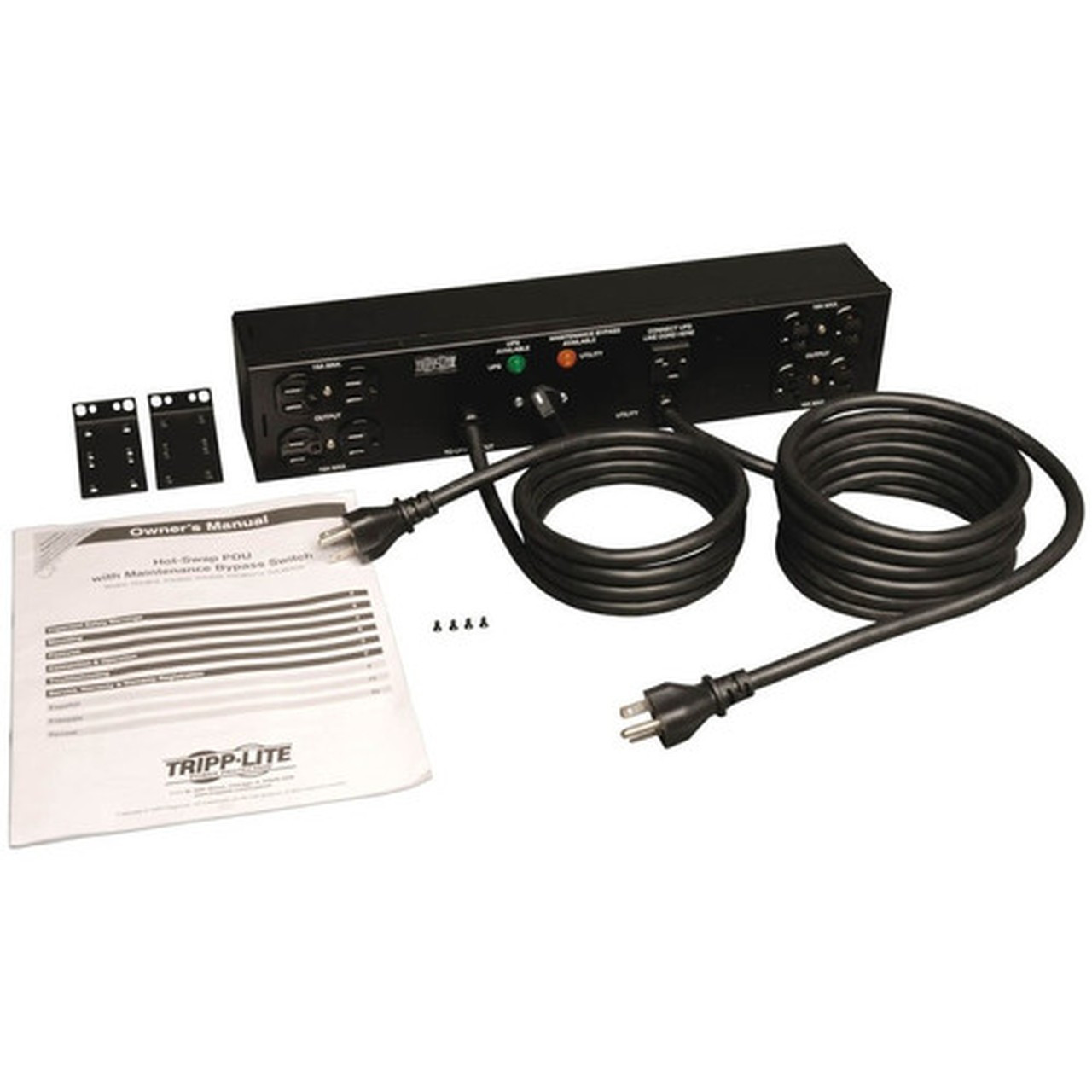

Package Contents:

• PDUB15 PDU Dual Source Hot Swap 12A 8 Outlet
• 2U Mounting Brackets
• User Manual with Warranty Information

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
