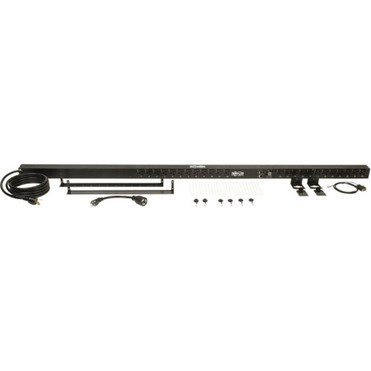

Tripp Lite PDUMVR20NETLX 24-Outlet PDU - Switched - NEMA 5-20P, NEMA L5-20P - 24 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - Rack - - (PDUMVR20NETLX)

Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: PDUMVR20NETLX
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: PDUMVR20NETLX
Product Name: PDUMVR20NETLX 24-Outlet PDU
Marketing Information: The PDUMVR20NETLX 1.9kW Single-Phase Switched PDU with individual outlet metering provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

The switched PDU features 24 individually controllable NEMA 5-15/20R outlets with cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-20P plug and optional 5-20P adapter connects the PDU to an AC source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor each load bank's current, each outlet's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets.
Product Type: PDU
Technical Information
Input Receptacles:

• NEMA 5-20P
• NEMA L5-20P

Output Receptacles: 24 x NEMA 5-15/20R
Power Description
Input Voltage: 120 V AC
Output Voltage:

• 100 V AC
• 120 V AC
• 127 V AC

Power Rating (Watt): 2.03 kW
Input Current: 20 A
Management
Management: Protocols:

• IPv4
• IPv6
• HTTP
• HTTPS
• SMTP
• SNMPv1
• SNMPv2
• SNMPv3
• telnet
• SSH
• FTP
• DHCP
• NTP

Physical Characteristics
Mounting Orientation: Vertical
Placement: Rack
Form Factor: Rack-mountable
Rack Height: 0U
Height: 70" (1778 mm)
Width: 2.20" (55.88 mm)
Depth: 2.04" (51.82 mm)
Weight (Approximate): 4.35 kg
Miscellaneous
Package Contents:

• PDUMVR20NETLX 24-Outlet PDU
• Built-in LX Platform Interface
• NEMA 5-20P Plug Adapter
• Configuration Cable
• Cord Retention Brackets
• 24 x Cable Ties
• Rack-mounting Hardware
• Mounting Bracket Accessory
• Owner's Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
