Tripp Lite PDU1415 PDU Basic 120V 15A 14 Outlet - 14 x NEMA 5-15R - 1.8kW - Horizontal Rackmount, Vertical Rackmount, Wall-mountable (PDU1415)
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator

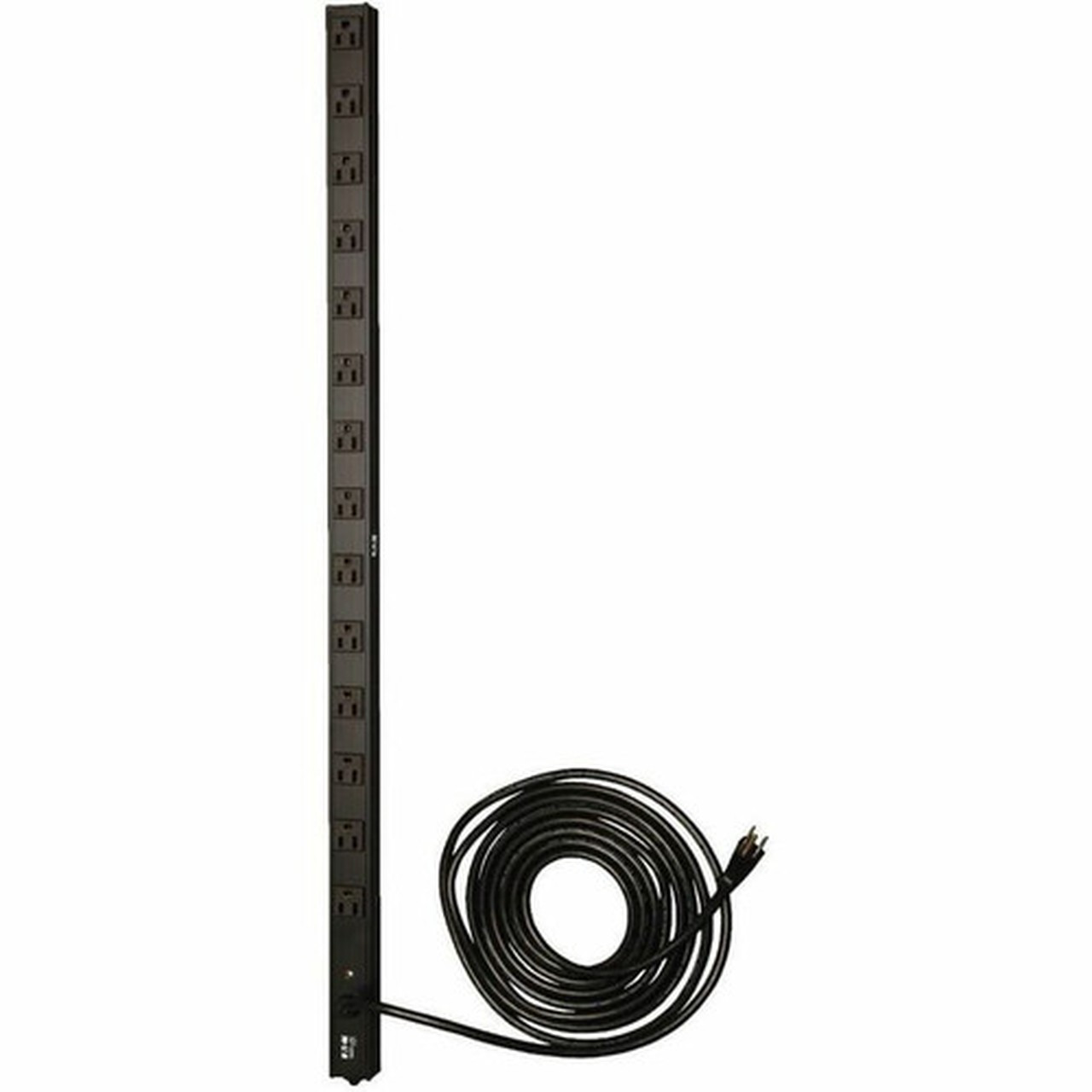

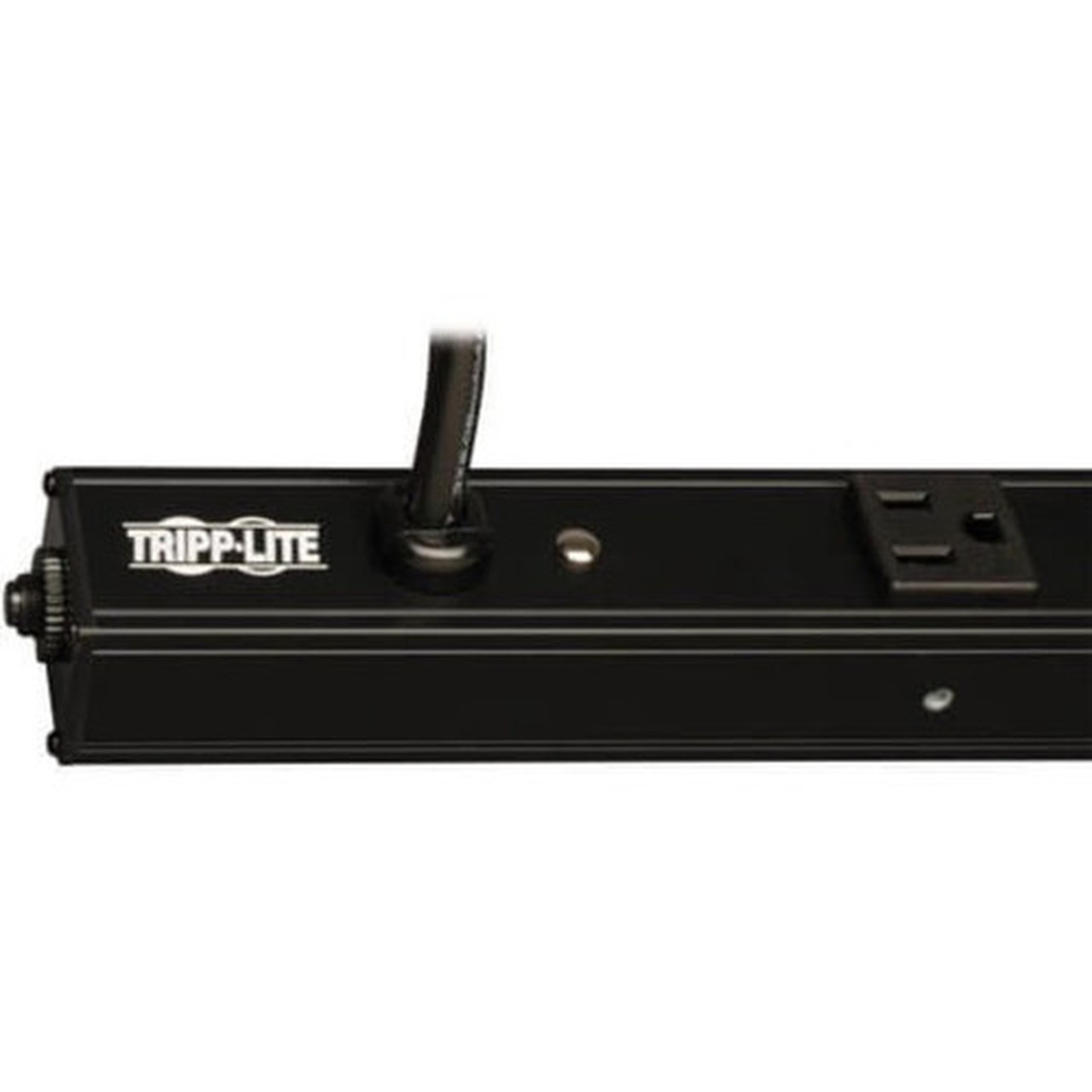

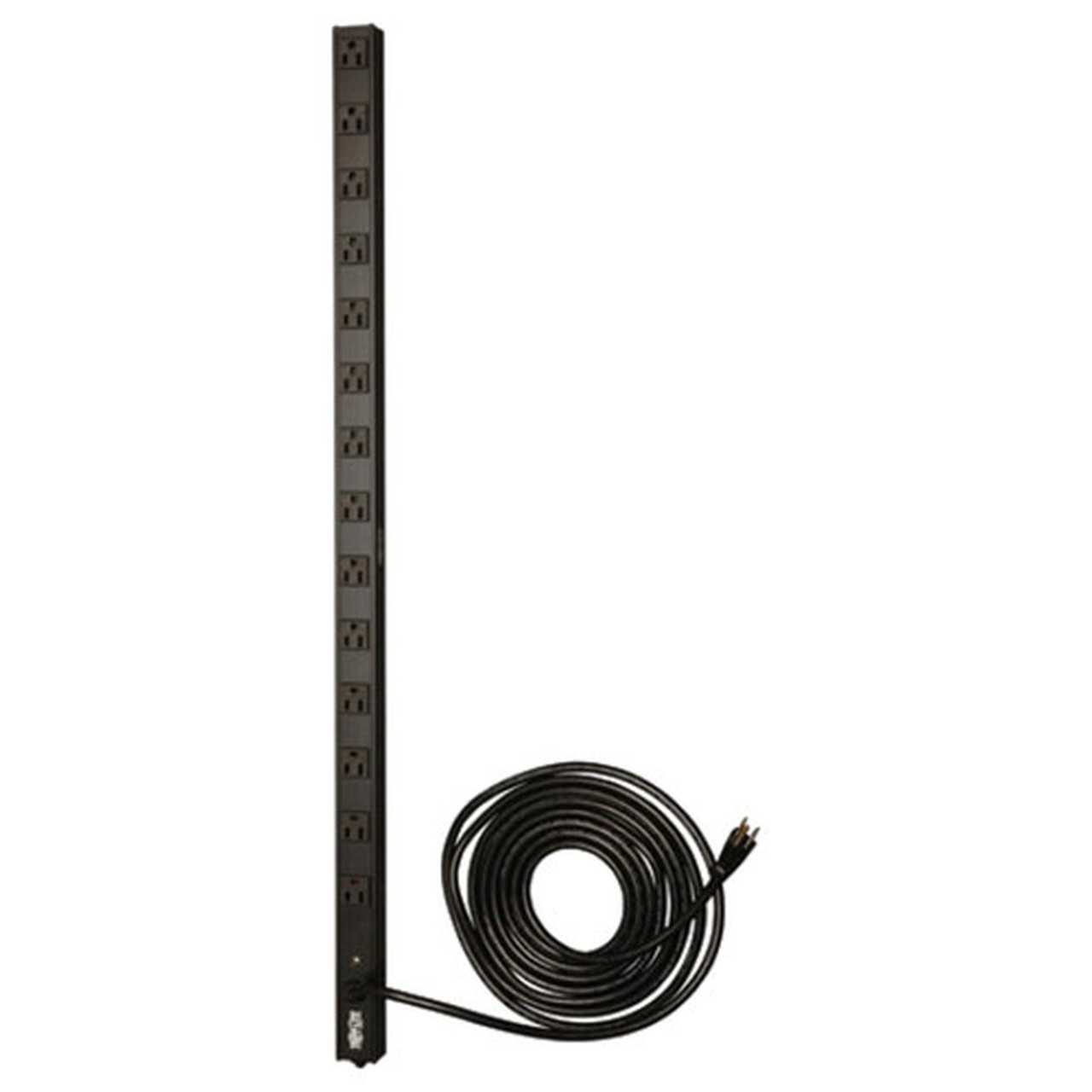

Tripp Lite's PDUV15 Basic Vertical Power Distribution Unit offers 15-amp, 120V multi-outlet AC power distribution in a convenient 36-inch mountable housing. It offers vertical power distribution in rackmount, raceway and workbench applications. Includes 14 NEMA 5-15R output receptacles, 15-ft. AC line cord and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal aluminum housing stands up to demanding network, laboratory or factory environments. Unfiltered electrical pass-through makes the PDUV15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Included 14 NEMA5-15R outlets, 15-ft. AC power cord with 5-15P plug, 15-amp circuit breaker in rugged metal case design with universal and button mounting options. PLUG/OUTLETS - Input: NEMA 5-15P; Output: 14 NEMA 5-15R; ELECTRICAL - 120V AC, 50/60Hz, 15A; FORMAT - 36-inch mountable strip.
PDU Type: BasicPlug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15RReceptacle Detail: 14 x NEMA 5-15RProtection Type: Overload ProtectionInput Voltage: 120 V ACOutput Voltage: 120 V ACPower Rating (VA): 1.80 kVAMounting Orientation: VerticalMount Type: Rack-mountableHeight: 1.75" (44.45 mm)Width: 36" (914.40 mm)Depth: 1.25" (31.75 mm)Weight (Approximate): 1.50 kgPackage Contents:[custom-specifications]
