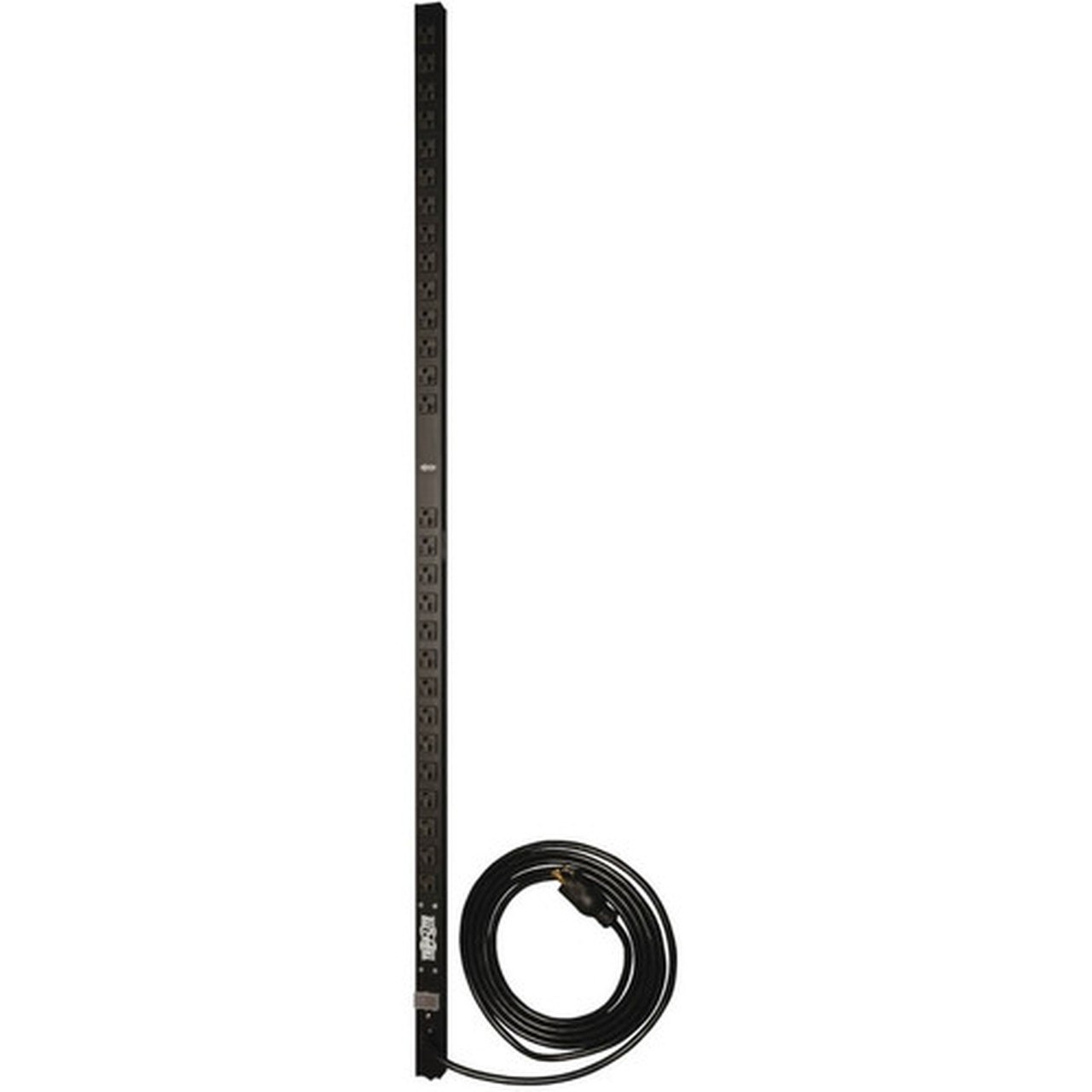

Tripp Lite PDUV20-60 28-Outlet PDU - Basic - NEMA 5-20P, NEMA L5-20P - 28 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - Rack-mountable (PDUV20-60)

Marketing Information:

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

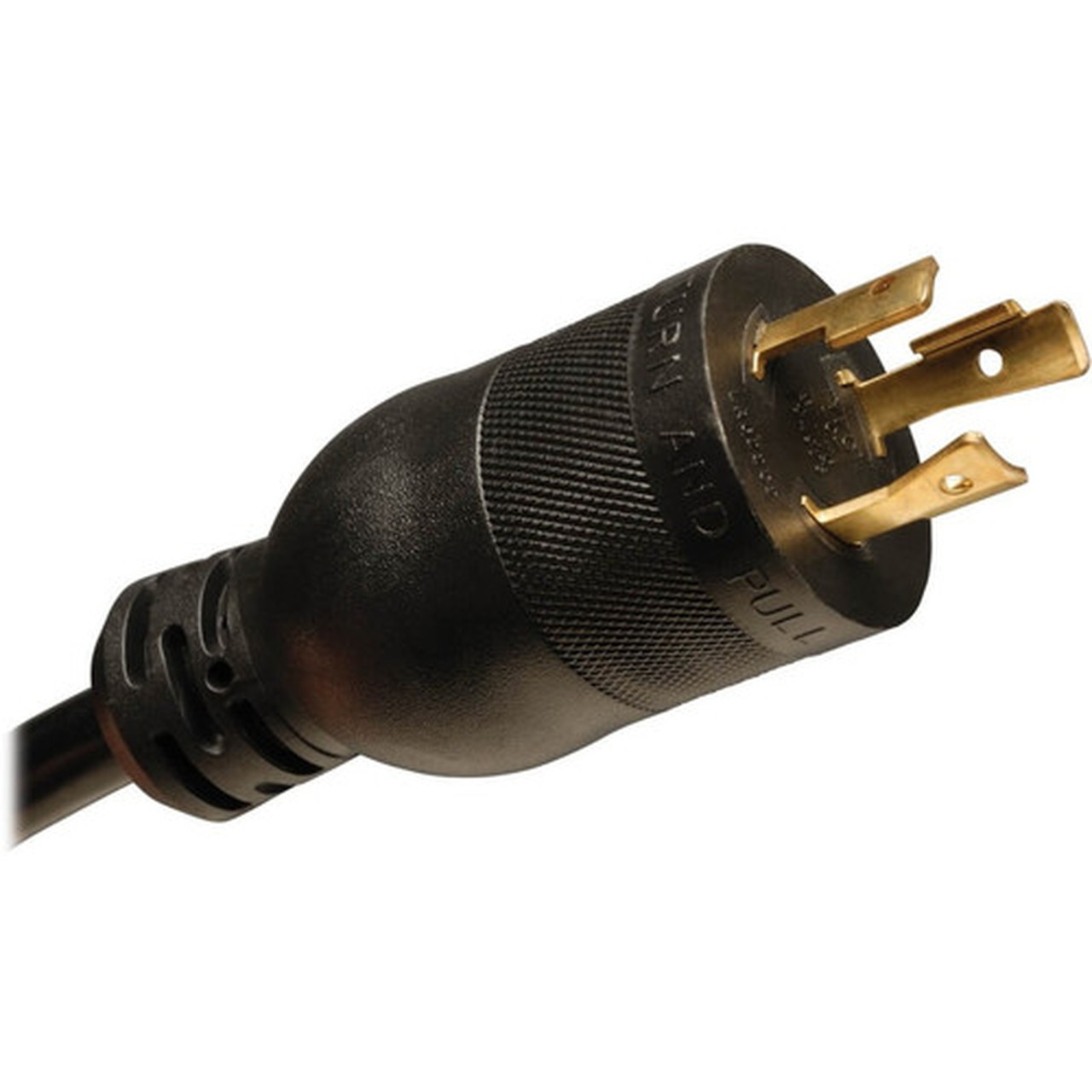

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-60 features 28 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

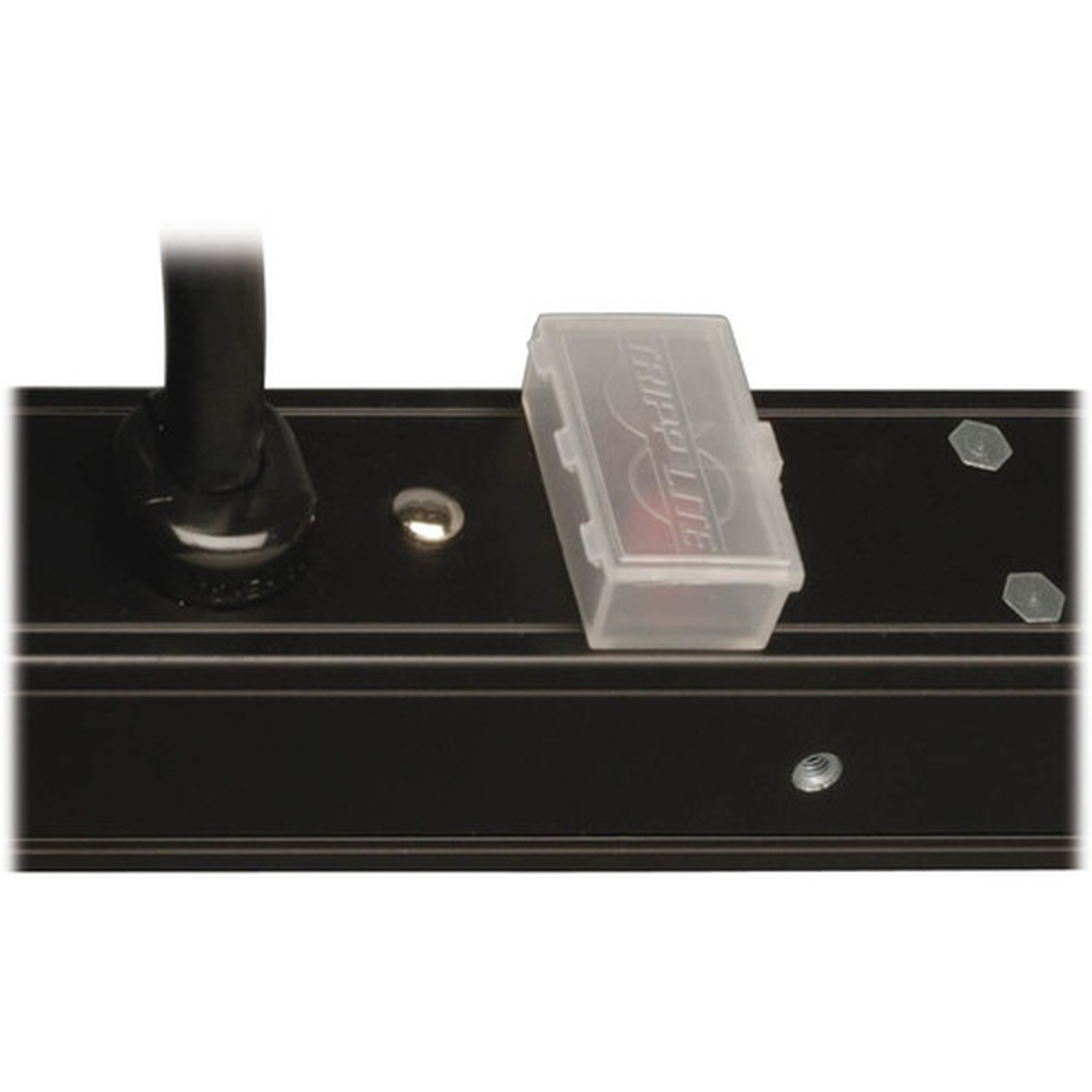

A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

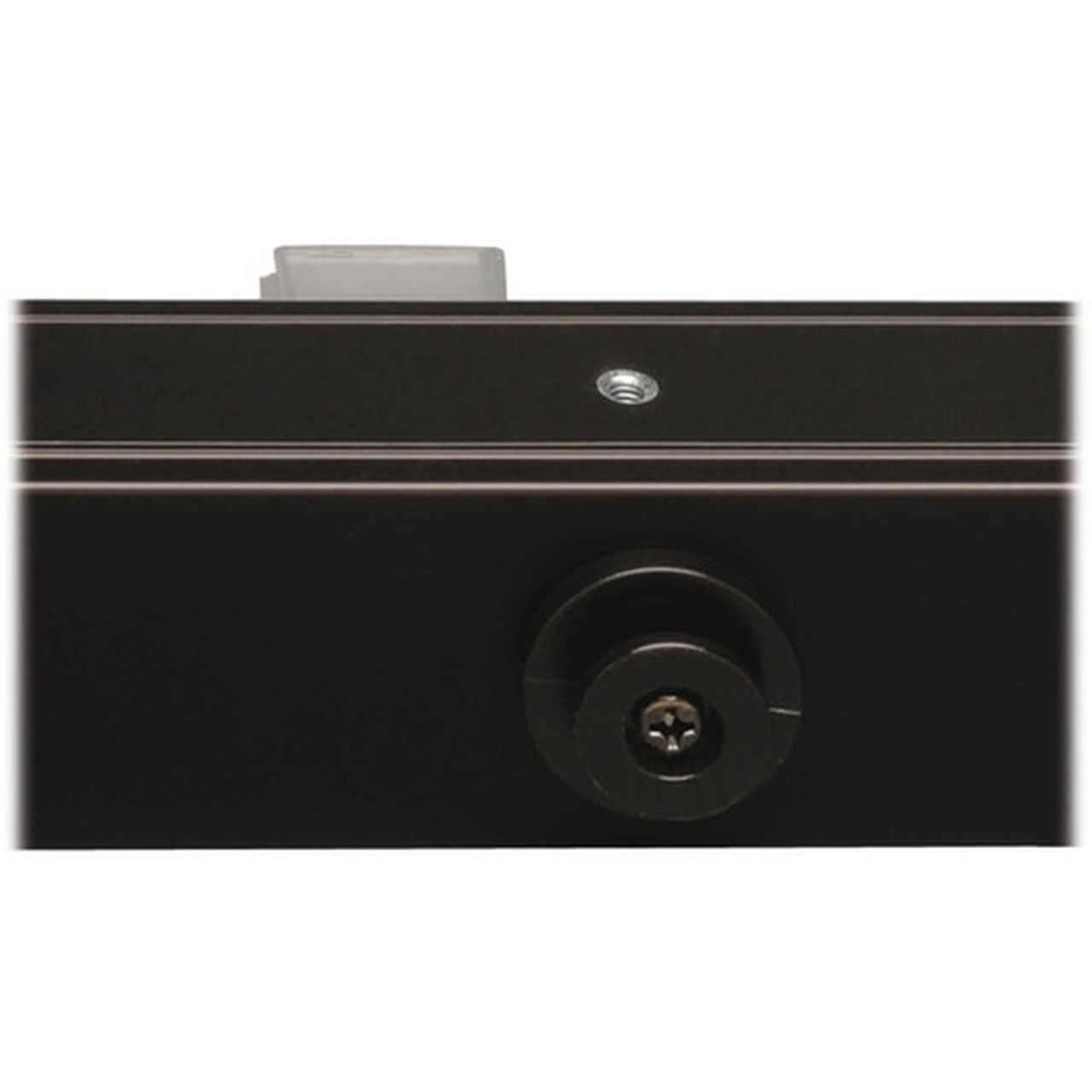

The 60-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter.

Typical Applications

Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

PDU Type: Basic

Phase: Single Phase

Plug/Connector Type: NEMA 5-20P,NEMA L5-20P

Receptacle Type: NEMA 5-15/20R

Receptacle Detail: 28 x NEMA 5-15/20R

Protection Type: Overload Protection

Input Voltage: 120 V AC

Output Voltage: 100 V AC,120 V AC,127 V AC

Power Rating (Watt): 2.03 kW

Input Current: 20 A

Mounting Orientation: Vertical

Mount Type: Rack-mountable

Rack Height: 0U

Height: 60.47" (1535.94 mm)

Width: 1.50" (38.10 mm)

Depth: 1.64" (41.66 mm)

Weight (Approximate): 2.44 kg

Package Contents:

• PDUV20-60 28-Outlet PDU
• L5-20P to 5-20P Input Plug Adapter
• Plug Retention Brackets with Installation Hardware
• Rack-Mounting Hardware
• Owner's Manual

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
