- PDUV20-72 36-Outlet PDU
- L5-20P to 5-20P Input Plug Adapter
- Plug Retention Brackets with Installation Hardware
- Rack-Mounting Hardware
- Owner's Manual
Marketing Information:
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-72 features 36 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment

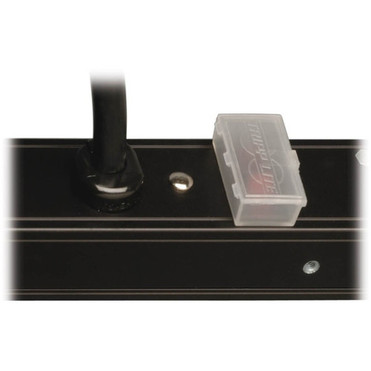

A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices

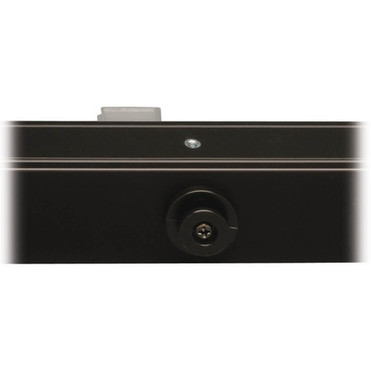

The 72-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Typical Applications
Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications
PDU Type: Basic
Phase: Single Phase
Plug/Connector Type: NEMA 5-20P,NEMA L5-20P
Receptacle Type: NEMA 5-15/20R
Receptacle Detail: 36 x NEMA 5-15/20R
Protection Type: Overload Protection
Input Voltage: 120 V AC
Output Voltage: 100 V AC,120 V AC,127 V AC
Power Rating (Watt): 2.03 kW
Input Current: 20 A
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 0U
Height: 72.47" (1840.74 mm)
Width: 1.64" (41.66 mm)
Depth: 1.50" (38.10 mm)
Weight (Approximate): 2.79 kg
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Ideal no-frills PDU for telecom, security, audio/video and other network applications
- 36 NEMA 5-15/20R outlets distribute AC power to connected equipment
- Lighted power switch with protective cover helps prevent accidental shutdowns
- 15 ft. cord with L5-20P input (and 5-20P adapter) connects to AC power source
- 72 in. 0U PDU with included mounting brackets installs in rack or under counter
- 2-year limited warranty
[custom-specifications]
Specifications | |
---|---|
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | PDUV20-72 |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Model | PDUV20-72 |
Product Name | PDUV20-72 36-Outlet PDU |
Product Type | PDU | Technical Information |
PDU Type | Basic |
Phase | Single Phase |
Plug/Connector Type | NEMA 5-20P,NEMA L5-20P |
Receptacle Type | NEMA 5-15/20R |
Receptacle Detail | 36 x NEMA 5-15/20R |
Protection Type | Overload Protection | Power Description |
Input Voltage | 120 V AC |
Output Voltage | 100 V AC,120 V AC,127 V AC |
Power Rating (Watt) | 2.03 kW |
Input Current | 20 A | Physical Characteristics |
Mounting Orientation | Vertical |
Mount Type | Rack-mountable |
Rack Height | 0U |
Height | 72.47" (1840.74 mm) |
Width | 1.64" (41.66 mm) |
Depth | 1.50" (38.10 mm) |
Weight (Approximate) | 2.79 kg | Miscellaneous |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
Limited Warranty | 2 Year |
