Marketing Information: 1.44kVA/1.44kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART1500RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA 5-15R Outlets Protect Your Connected Components

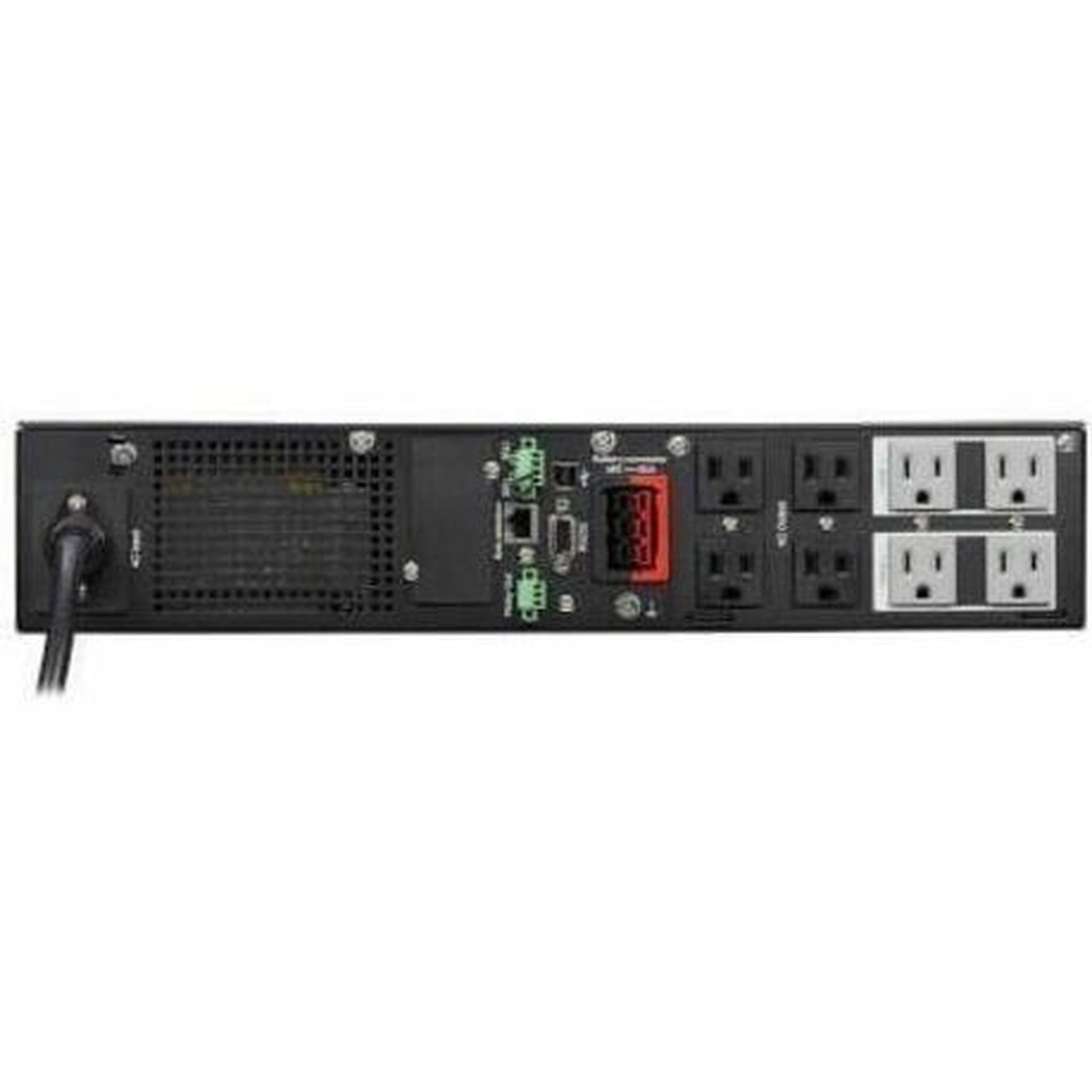

Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART1500RMXL2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.
AVR: YesPlug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15RReceptacle Detail: 8 x NEMA 5-15RCord Length: 10 ftTransfer Time: 4 msEMI/RFI Noise Filter: YesPhase: Single PhaseEnergy Saving: Greater than 95% efficiency - GREEN UPS; Individually controllable load banksApplication/Usage: - Network Device
- High-end System
Load Capacity: 1.44 kVA/1.44 kWInput Voltage: 120 V ACOutput Voltage: - 100 V AC
- 110 V AC
- 120 V AC
- 125 V AC
Input Frequency: 60 HzOutput Frequency: 60 HzWaveform Type: Sine WaveOutput Power Factor: 1Network Management: SNMP ManageableAlarm: - UPS StartUp
- Remote Shutdown
- Overload
- Low Battery
- Power Failure
Status Indicators: - UPS status (Solid Green)
- Battery Mode (Solid Orange)
- Battery Low Warning (Flashing Orange)
- Fault/Alarm (Solid Red)
USB: YesEPO Port: YesDC System Voltage: 48 V DCBattery Characteristics: Valve-regulatedBattery Chemistry: Lead AcidBackup/Run Time (Full Load): 5.10 MinuteBackup/Run Time (Half Load): 15.10 MinuteBattery Life: 6 YearHot Swappable: YesTypical Battery Recharge Time: 4 HourReplaceable Battery: YesStorage Temperature: 5°F (-15°C) - 122°F (50°C)Maximum Operating Temperature: 104°F (40°C)Sound Emission (A-Weighted): 40 dB(A)Height: 3.45" (87.63 mm)Width: 17.20" (436.88 mm)Depth: 17.60" (447.04 mm)Rack Height: 2UForm Factor: Rack/TowerWeight (Approximate): 23 kgPackage Contents: - SMART1500RMXL2U UPS System
- PowerAlert software with USB and DB9 cables
- Mounting hardware for 4 post rackmount installation
- Cable for Emergency Power Off interface
- Instruction manual with warranty information
Country of Origin: ChinaLimited Warranty: 3 YearAdditional Warranty Information: 3 year with registration. Note: Registration is required for 3-year warranty.
