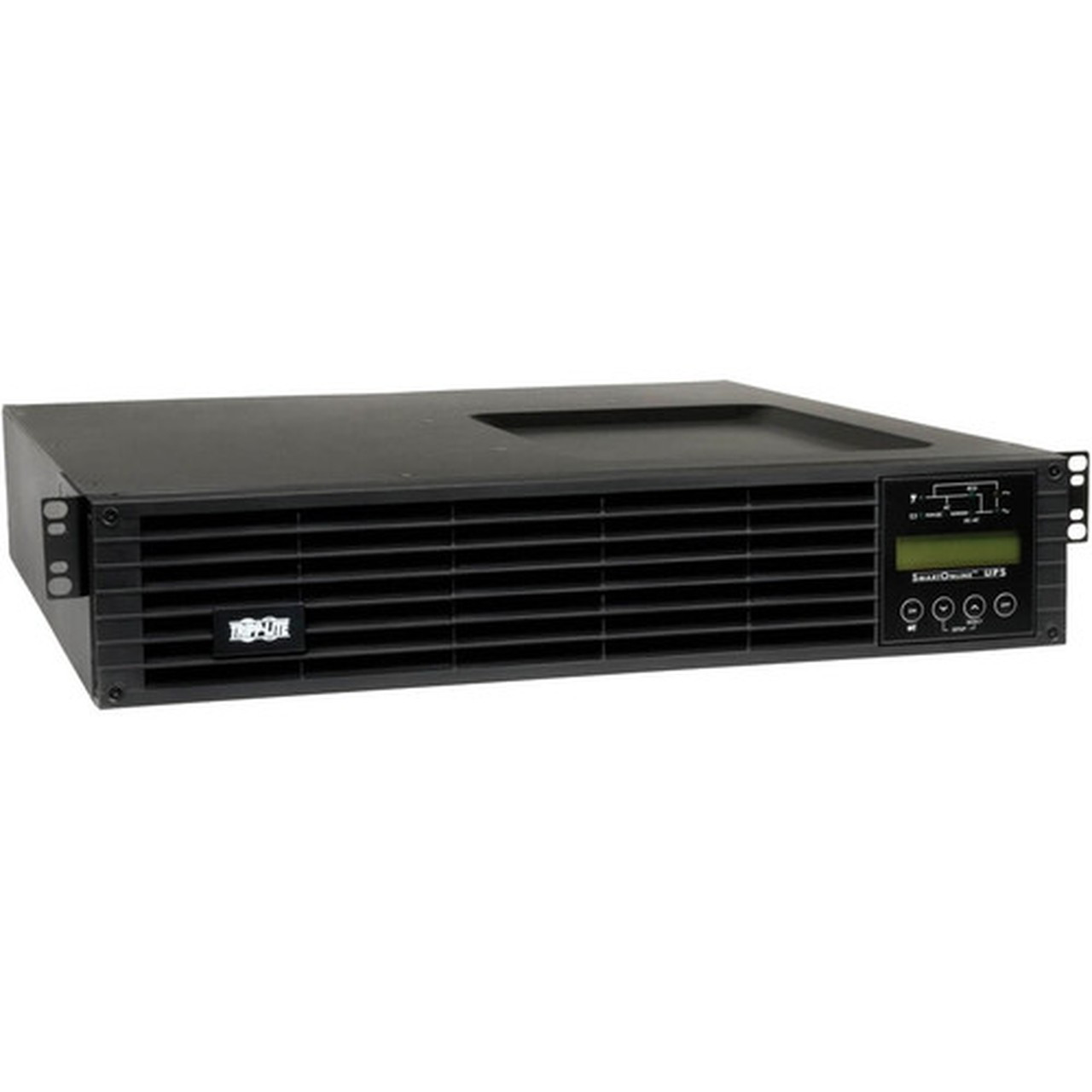

Tripp Lite SmartOnline SU2200RTXLCD2U 2200VA Tower/Rack Mountable UPS - 2U Rack/Tower - 4 Minute Stand-by - 100 V AC, 110 V AC, 115 V (SU2200RTXLCD2U)

Marketing Information: 2kVA 1.8kW 120V Battery Backup Protects Equipment against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU2200RTXLCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

NEMA Outlets Protect Your Connected Components

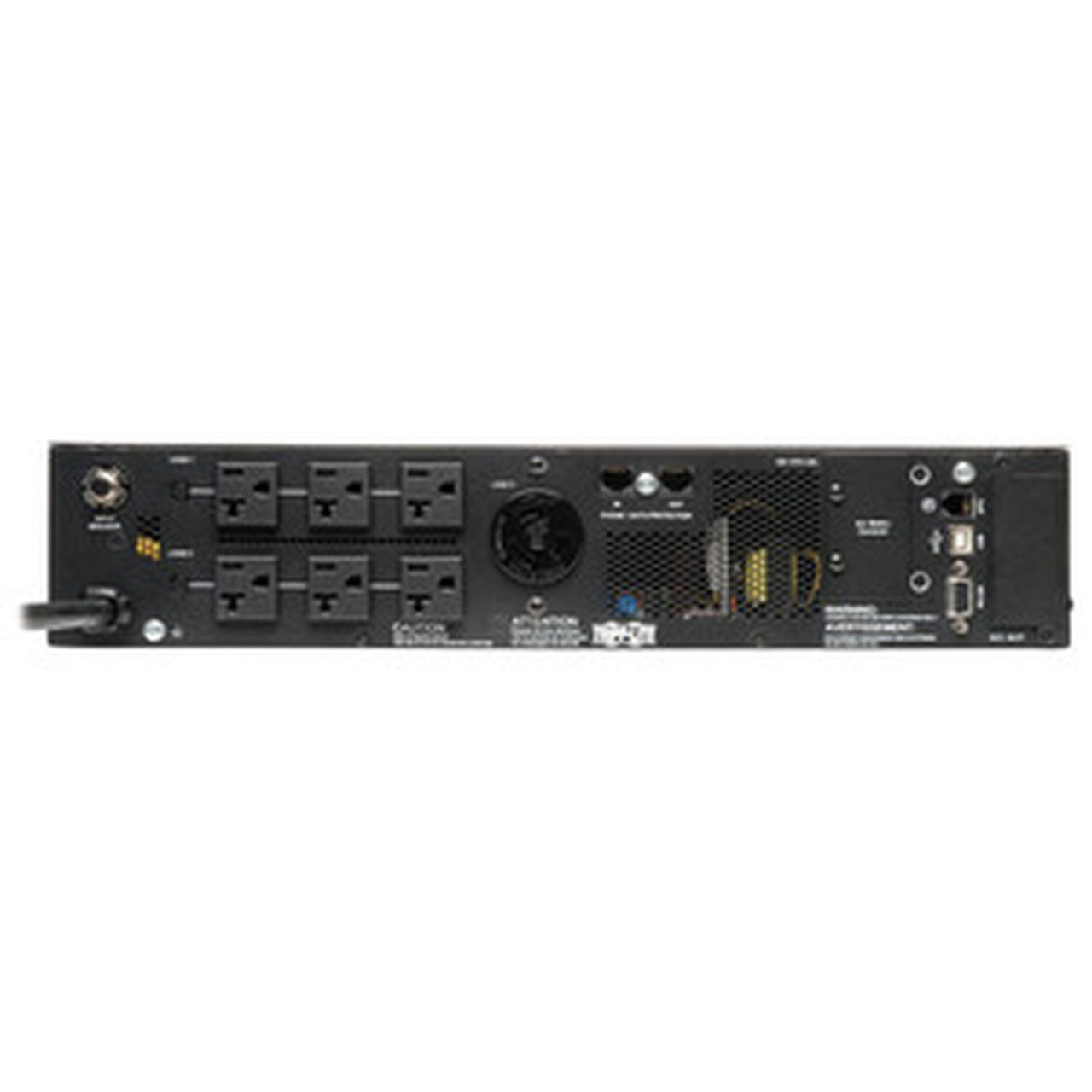

One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split evenly into two switchable load banks that let you reboot select components or shed non-critical loads to extend runtime for critical loads. A cooling fan helps protect equipment from overheating.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The two-line front-panel LCD monitoring screen features 10 selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a green light means utility power is on, an orange light means the UPS is in battery or bypass mode and a red light indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations.

Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even after a complete battery discharge.

More from the Manufacturer

Plug/Connector Type: NEMA 5-15P

Receptacle Type: NEMA 5-20R,NEMA L5-20R

Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-20R

Overload Protection: Yes

Transfer Time: 0 ns

EMI/RFI Noise Filter: Yes

Phase: Single Phase

Energy Saving: High efficiency economy mode operation; Individually controllable load banks

Application/Usage: Education,Healthcare,Military,Government,IT Equipment,Mission Critical Equipment

Load Capacity (VA): 2 kVA

Load Capacity (Watt): 1.80 kW

Input Voltage: 120 V AC

Output Voltage: 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC

Input Frequency: 60 Hz

Output Frequency: 60 Hz

Waveform Type: Pure Sine Wave

Surge Energy Rating: 190 J

Input Power Factor: 0.99

Output Power Factor: 0.9

Display: LCD

Network Management: SNMP

Alarm: Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery

Status Indicators: 4 x status-indicating LEDs

Serial Port: Yes

USB: Yes

DC System Voltage: 72 V DC

Battery Characteristics: Valve-regulated

Battery Chemistry: Lead Acid

Backup/Run Time (Full Load): 7.70 Minute

Backup/Run Time (Half Load): 20.20 Minute

Hot Swappable: Yes

Typical Battery Recharge Time: 3 Hour

Replaceable Battery: Yes

Maximum Operating Elevation: 9842.52 ft (3000000 mm)

Storage Temperature: 32°F (0°C) - 104°F (40°C)

Minimum Operating Temperature: 32°F (0°C)

Maximum Operating Temperature: 104°F (40°C)

Sound Emission: 47 dB

Height: 3.41" (86.61 mm)

Width: 17.33" (440.18 mm)

Depth: 23.82" (605.03 mm)

Rack Height: 2U

Form Factor: Rack/Tower

Weight (Approximate): 27.90 kg

Package Contents:

Software Included: PowerAlert UPS Monitoring Software

Energy Star: Yes

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
