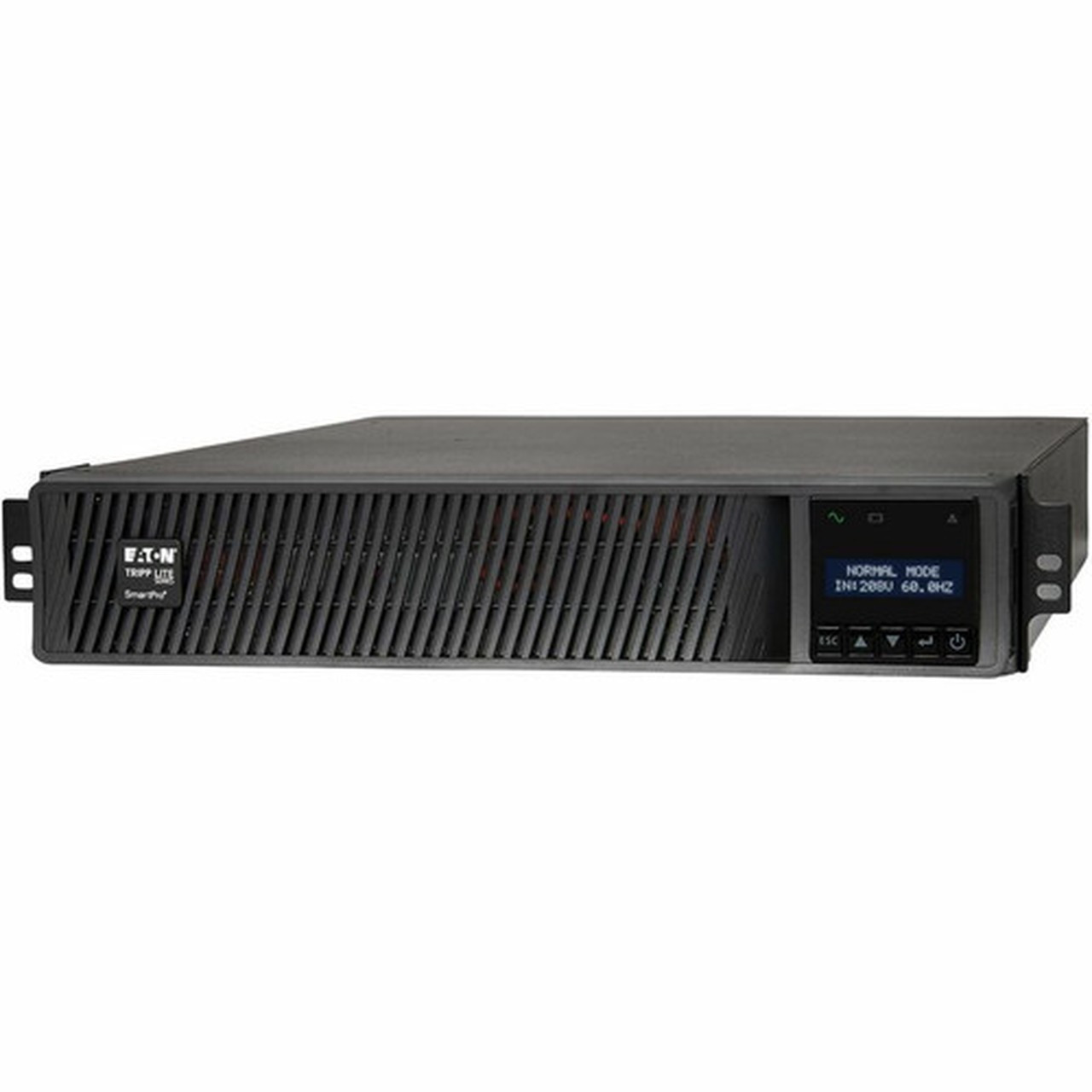

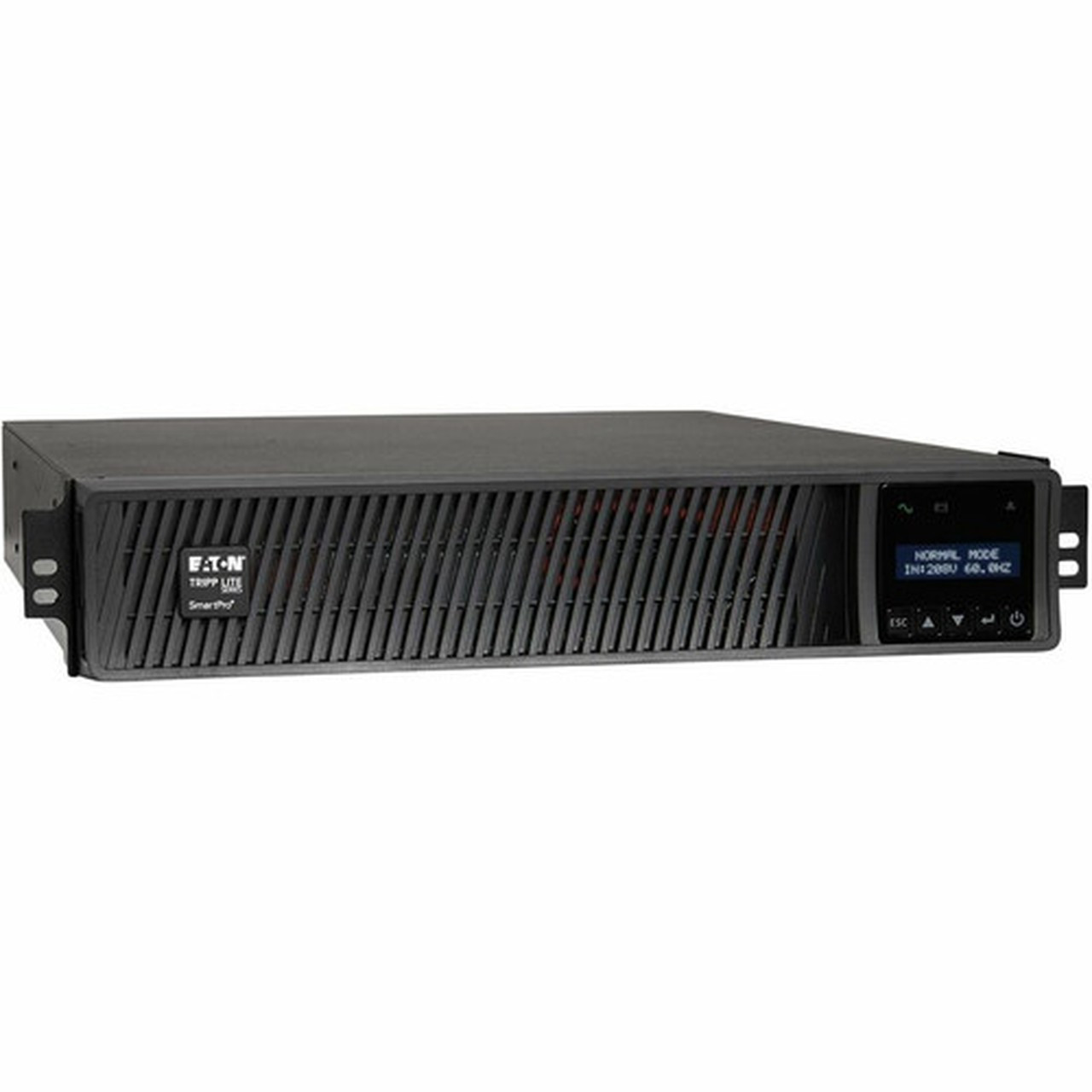

Tripp Lite SmartPro 1500VA Rack/Tower Convertible UPS - 1500VA/1000W - 7 Minute Full Load - 8 x IEC 320 EN 60320 C13 (SMX1500XLRT2U)

Marketing Information: 1.5kVA/1.5kW/208V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMX1500XLRT2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

C13 Outlets Protect Your Connected Components

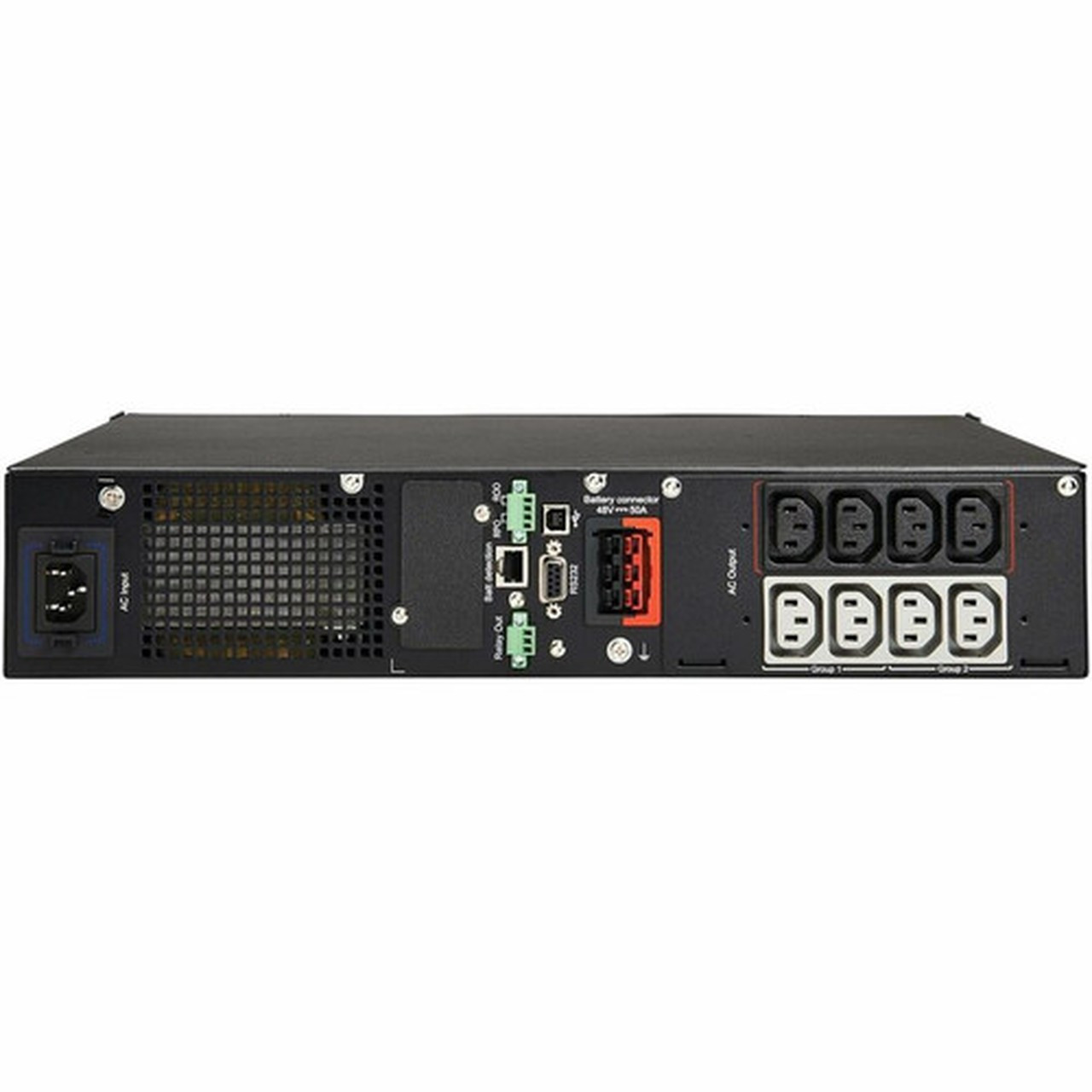

Eight C13 outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMX1500XLRT2U maintains regulated 208V nominal output during brownouts and overvoltages from 160V to 294V while keeping the battery fully charged and ready to take over in case of power failure.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.

Plug/Connector Type: IEC 320-C14

Receptacle Type: IEC 60320 C13

Receptacle Detail: 8 x IEC 60320 C13

Cord Length: 5.9 ft (1.80 m)

Transfer Time: 4 ms

Load Capacity (VA): 1.50 kVA

Load Capacity (Watt): 1.50 kW

Input Voltage: 220 V AC

Output Voltage: 230 V AC

Waveform Type: Sine Wave

Surge Energy Rating: 1800 J

Circuit Breaker: Yes

Network Management: SNMP Manageable

Alarm: Power Failure,Overload,UPS Fault,Low Battery

Status Indicators:

5 Front Panel LEDs:

• Power
• Battery charge
• Output load level
• Battery warning

Serial Port: Yes

USB: Yes

Backup/Run Time (Full Load): 4.90 Minute

Backup/Run Time (Half Load): 13.60 Minute

Battery Life: 6 Year

Hot Swappable: Yes

Typical Battery Recharge Time: 4 Hour

Maximum Operating Temperature: 122°F (50°C)

Product Color: Black

Height: 3.50" (88.90 mm)

Width: 17.50" (444.50 mm)

Depth: 13.50" (342.90 mm)

Rack Height: 2U

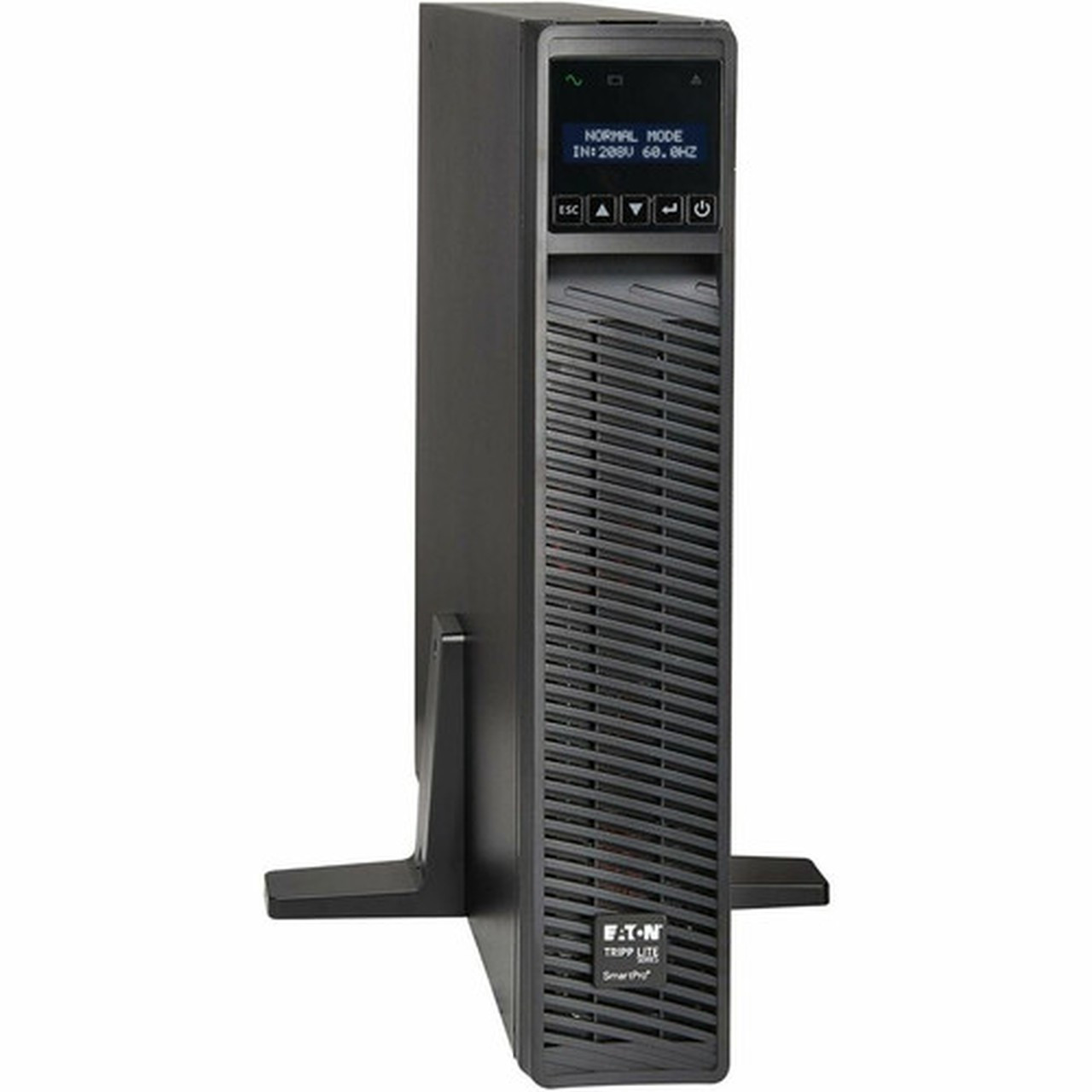

Form Factor: Rack/Tower

Weight (Approximate): 42.75 lb (19391.07 g)

Package Contents:

• SmartPro 1500VA Rack/Tower Convertible UPS
• SMX1500XLRT2U UPS System with mounting hardware
• Two 1.8m IEC320-C13 to C14 load jumper cables
• Cabling for USB & DB9 monitoring and EPO switching
• PowerAlert unattended shutdown and UPS/Power monitoring software
• Warranty information

Country of Origin: China

Limited Warranty: 2 Year
