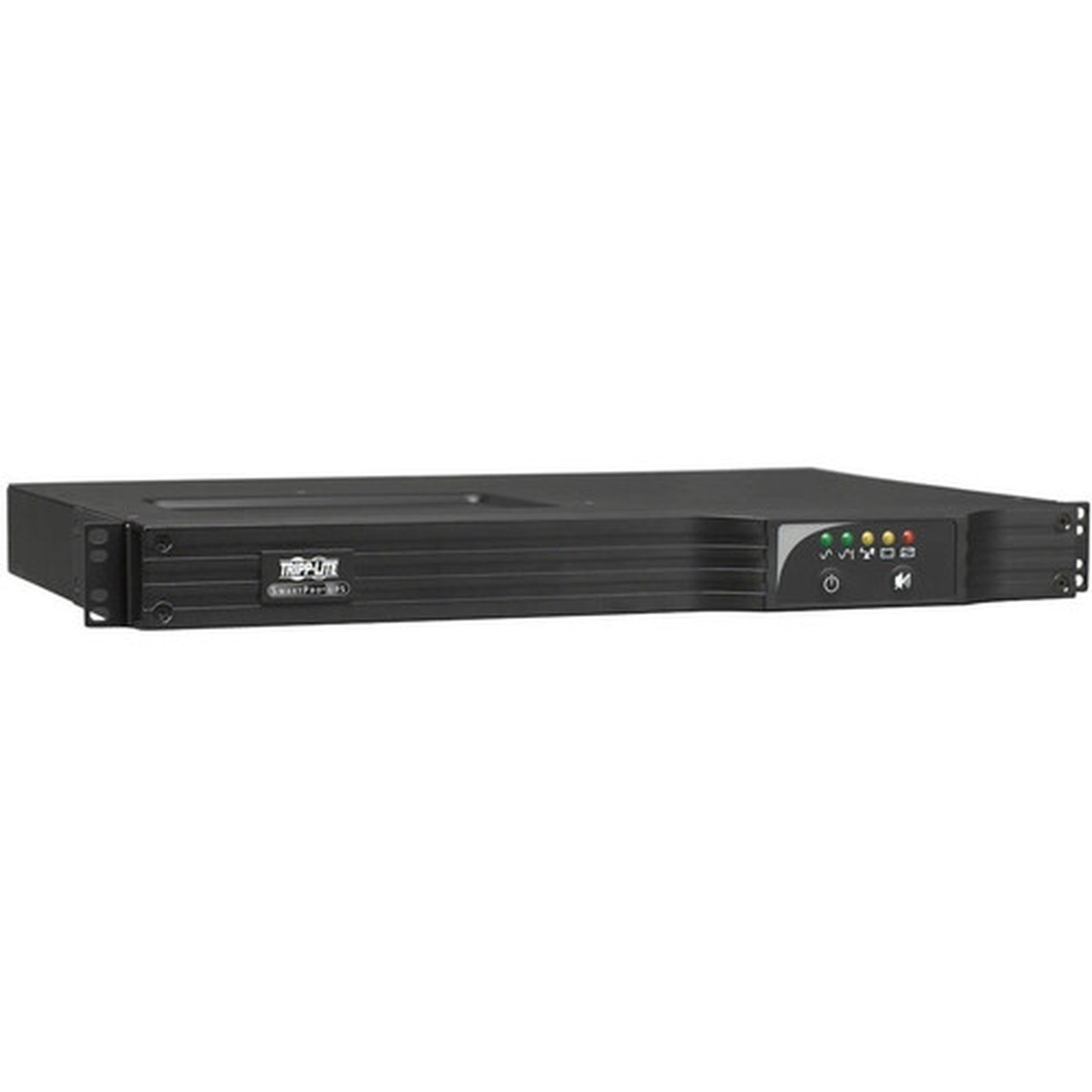

Tripp Lite SmartPro 750RM1U UPS - 750VA/450W - 5 Minute Full Load - 6 x NEMA 5-15R (SMART750RM1U)
- SMART750RM1U UPS System
- Mounting hardware
- Cabling for USB & DB9 monitoring and EPO switching
- PowerAlert unattended shutdown and UPS/Power monitoring software
- Warranty information and instruction manual
Marketing Information:
Tripp Lite SMART750RM1U 750VA / .75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and optional SNMP/Web accessory card. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Cord Length: 10 ft
Load Capacity (VA): 750 VA
Load Capacity (Watt): 600 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Network Management: SNMP Manageable
Alarm: On Battery,Overload,Low Battery

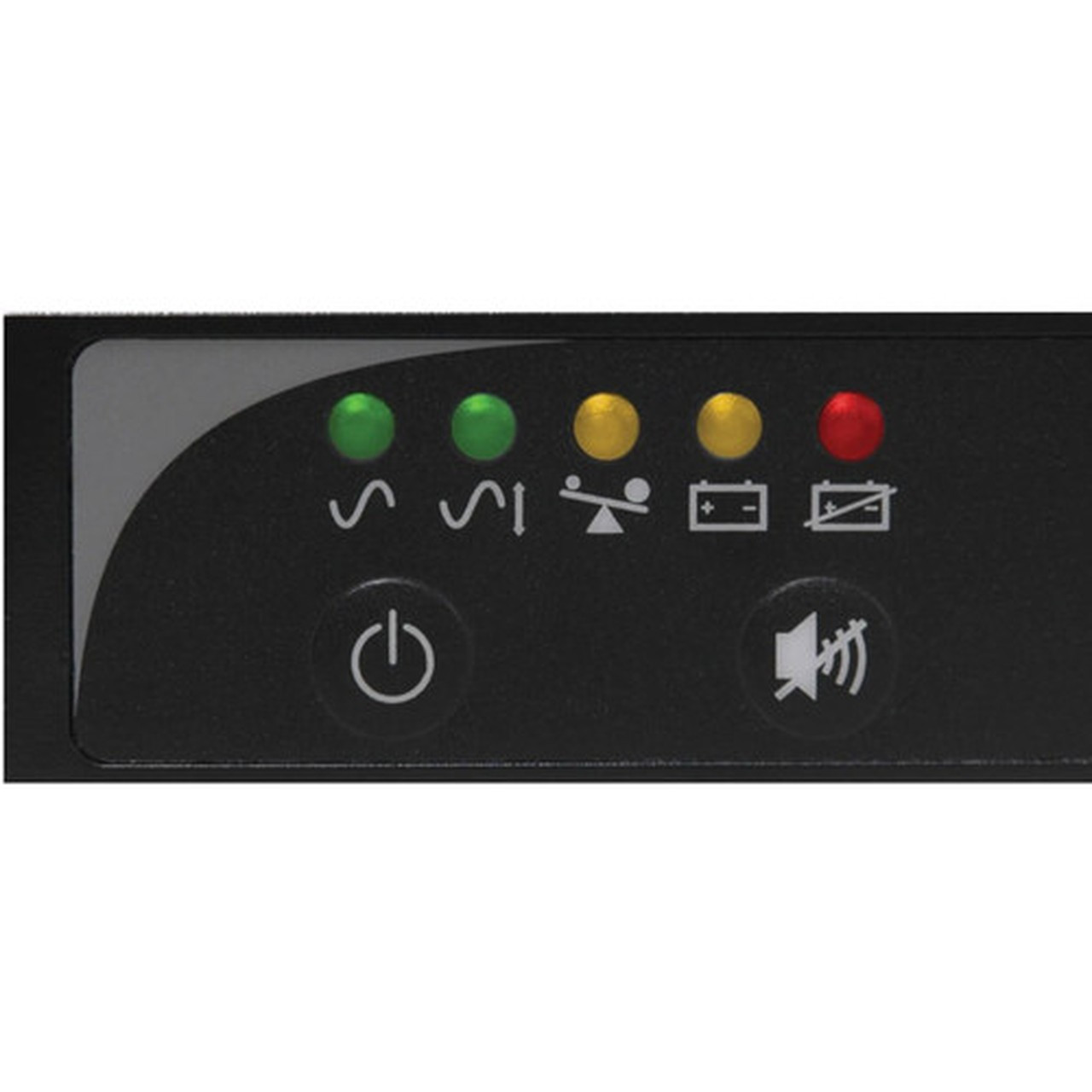

Status Indicators: 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
USB: Yes
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4.90 Minute
Backup/Run Time (Half Load): 13.20 Minute
Battery Life: 6 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour
Maximum Operating Temperature: 104°F (40°C)
Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Depth: 16.75" (425.45 mm)
Rack Height: 1U
Weight (Approximate): 13.61 kg
Package Contents:
Country of Origin: China
TAA Compliant: Yes
Limited Warranty: 3 Year
- .75kVA / 750VA / 600W line interactive 1U rackmount UPS, Sine wave output
- 120V output, Corrects brownouts and overvoltages from 83V to 147V
- 0.8 Power Factor, Front panel status LEDs
- Mounting brackets support 2 and 4 post installation
- 98% line-mode efficiency, 2 switched load banks
- USB, RS232, EPO and slot for SNMPWEBCARD option

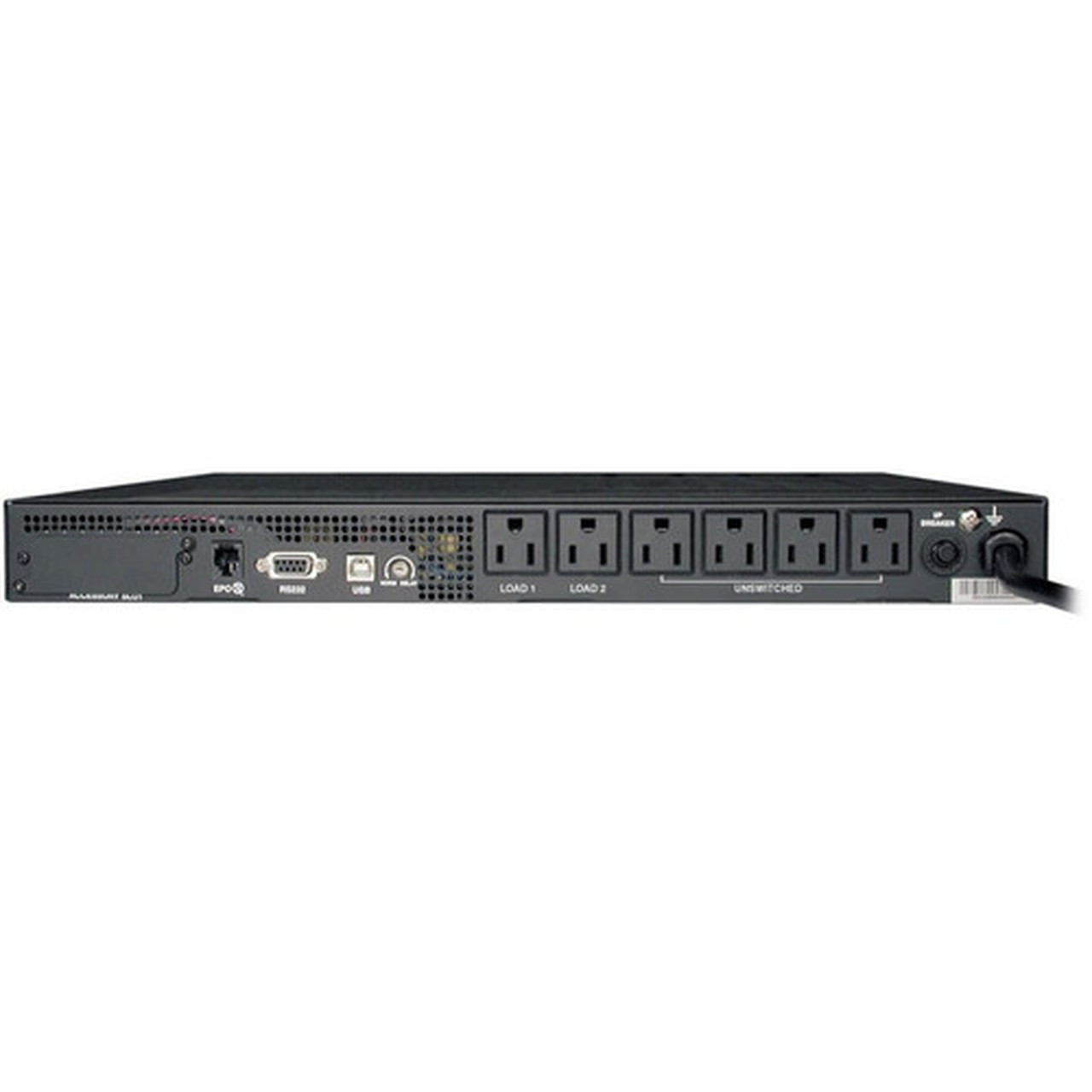

- 120V NEMA 5-15P input, 6 NEMA 5-15R outlets
[custom-specifications]
| Specifications | |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMART750RM1U |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartPro |
| Product Name | SmartPro 750RM1U UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Cord Length | 10 ft |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | On Battery,Overload,Low Battery |
| Controls/Indicators | |
| Status Indicators | 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED. |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Backup/Run Time (Half Load) | 13.20 Minute |
| Battery Life | 6 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 16.75" (425.45 mm) |
| Rack Height | 1U |
| Weight (Approximate) | 13.61 kg |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite by Eaton Web Management Accessory Card for SmartPro or SmartOnline UPS Systems - SmartSlot - 2 x Network (RJ-45) Port(s) |
| SKU | TLNETCARD |
| Sale Price | $537.72 |
| Product | Tripp Lite by Eaton Warranty/Support - Extended Warranty - 3 Year - Warranty - Maintenance - Labor - Physical |
| SKU | WEXT3G |
| Sale Price | $314.98 |
| Product | Tripp Lite by Eaton Warranty/Support - Extended Warranty - 1 Year - Warranty - Maintenance - Labor - Physical |
| SKU | WEXT1C |
| Sale Price | $35.54 |
| Product | Tripp Lite by Eaton Warranty/Support - Extended Warranty - 2 Year - Warranty - Maintenance - Labor - Physical |
| SKU | WEXT2E |
| Sale Price | $140.83 |
| Product | Tripp Lite PDU1215 PDU Basic 120V 15A 13 Outlet - 13 x NEMA 5-15R - 15 - 1U 19" Rack-mountable |
| SKU | PDU1215 |
| Sale Price | $131.81 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
Additional-pdf3
[/custom-user-manual]
Warranty Infomartion
3 Year
