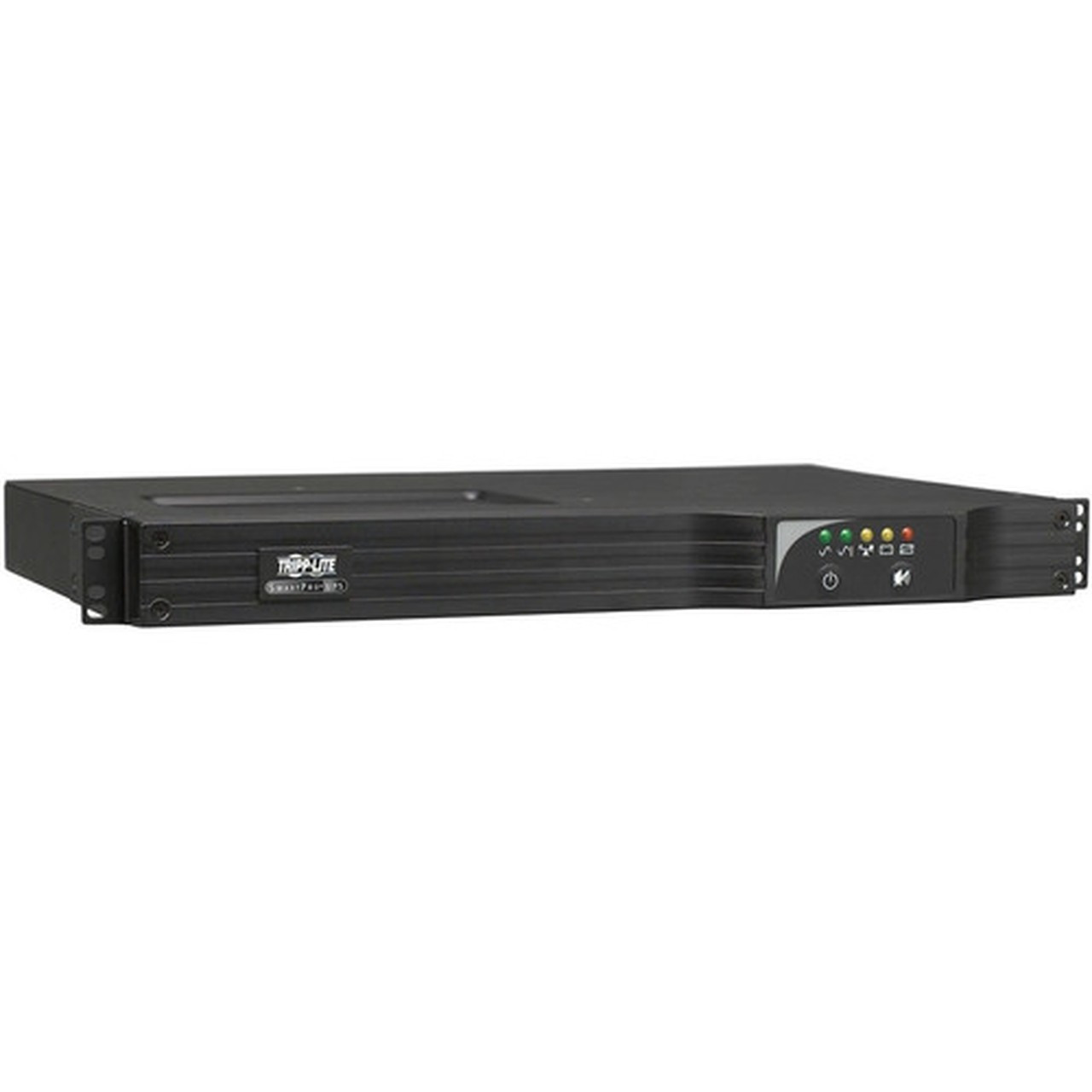

Tripp Lite SmartPro SMART500RT1UN 500VA Rack/Tower UPS - 1U Rack/Tower - AVR - 14.40 Hour Recharge - 3 Minute Stand-by - 120 V AC - V (SMART500RT1UN)

• Rack-mount UPS offers complete power protection for small network applications, including telecom, security and digital signage.
• Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
• Keeps AC power running during blackouts to allow time for file saves and safe shutdown
• Maintains continuous 120V nominal output during brownouts and overvoltages
• Included WEBCARDLX network interface allows you 24/7 remote access from anywhere
• 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
• 250,000 Ultimate Lifetime Insurance

Marketing Information:

500VA/300W/120V Battery Backup for PC Networks, Security Systems or Digital Signage

The SmartPro® line-interactive SMART500RT1UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The seven-outlet 120V battery backup is ideal protection for rack-mount equipment in your server room or network closet.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep a half load (150W) powered as long as 14 minutes and a full load (300W) up to three minutes.

Included WEBCARDLX Network Interface Offers 24/7 Access

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimal communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

6 NEMA Outlets Protect Your Connected Components

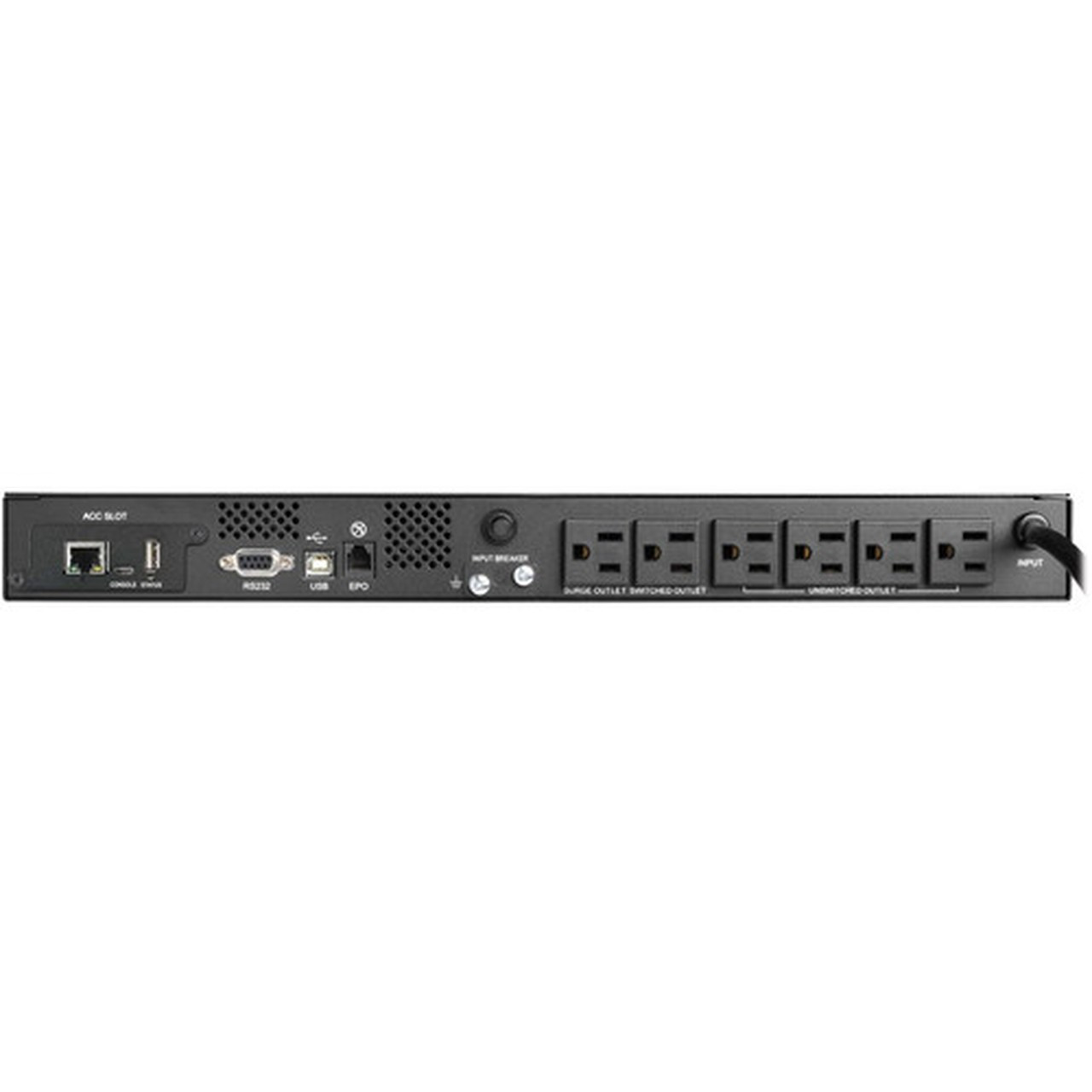

Six 5-15R outlets provide battery backup, 567 joules of surge protection and voltage regulation for your crucial components. Five are UPS-supported, and one is surge-only to connect peripherals not requiring battery backup. One UPS-supported outlet is switchable, allowing you to power its connected device on and off remotely to reset or reboot it or to shed a less significant load to extend battery runtime for more critical equipment.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART500RT1UN maintains regulated 120V nominal output during brownouts as low as 90V, while keeping the battery fully charged and ready to take over in case of power failure. The internal batteries are field-replaceable and hot-swappable.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Designed for High Efficiency to Help You Save Money and Protect the Environment

A 96% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.

LED Indicators and Audible Alarms Keep You Informed

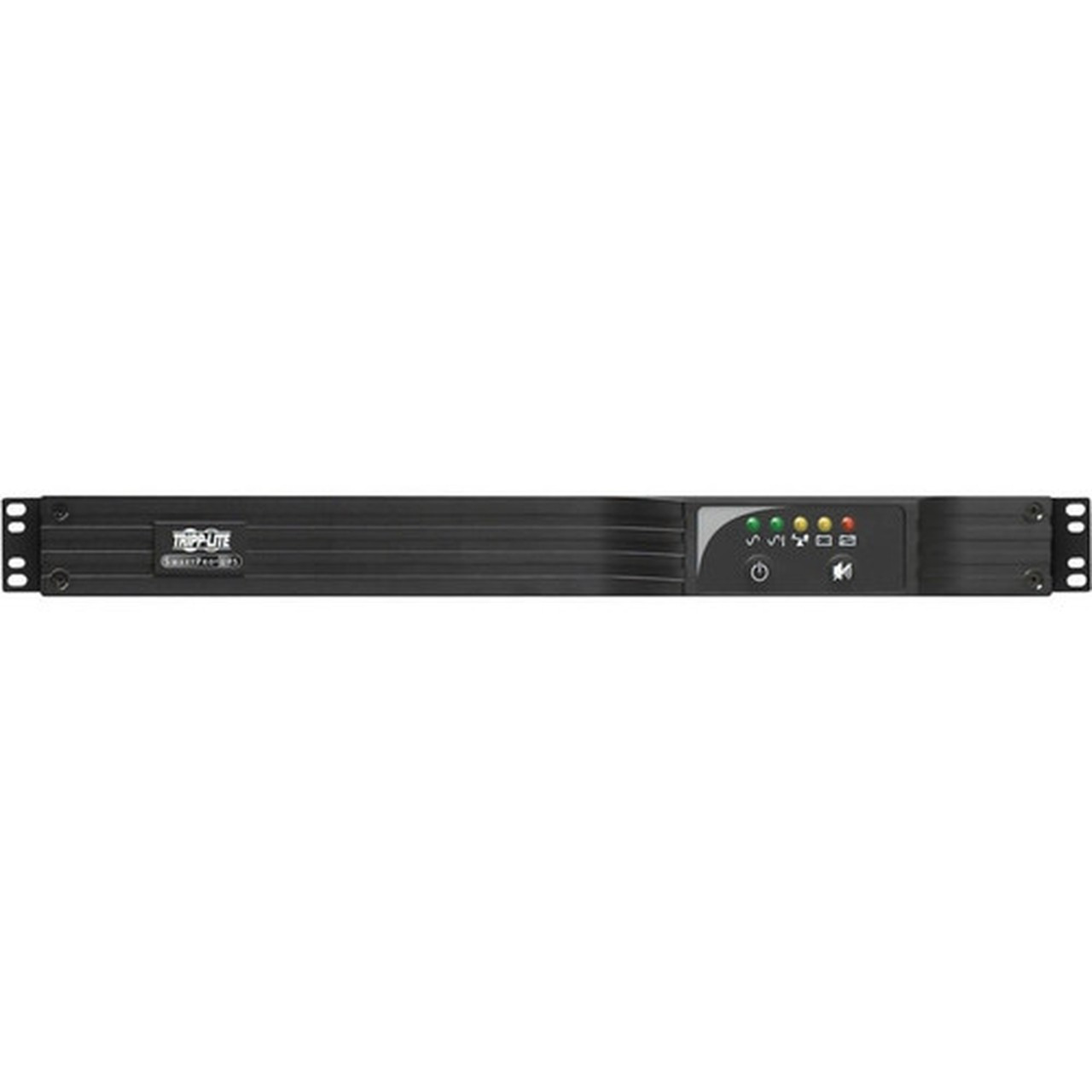

Five front-panel LEDs keep you apprised of line power, battery power, overload, voltage regulation and battery low/replace status at a glance. A multi-function alarm sounds to warn you of power failure, overload and low-battery conditions.


AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Number of Surge-only Outlets: 1
Overload Protection: Yes
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage:
• Telecommunication
• Security System
• Digital Signage
• Network Closet
• Server Room
• Electronic
• Mission Critical Equipment
• Business
• POS Terminal
• VoIP
• Desktop Computer

Load Capacity: 500 VA/300 W
Input Voltage: 120 V AC
Output Voltage:
• 120 V AC
• 110 V AC
• 115 V AC

Waveform Type: Sine Wave
Surge Energy Rating: 567 J
Network Management: SNMP/Telnet/SSH
Alarm:
• Power Failure
• Overload
• Low Battery

Status Indicators:

LED Indicators:

• 5 LEDs Indicate Line Power
• Battery Power
• Overload
• Voltage Regulation
• Battery Low/Replace Status

Serial Port: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
DC System Voltage: 12 V DC
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 14 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 14.40 Hour
Replaceable Battery: Yes
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 44 BTU/h
Height: 1.73" (44 mm)
Width: 17.32" (440 mm)
Depth: 11.26" (286 mm)
Rack Height: 1U
Form Factor: Rack/Tower
Weight (Approximate): 7.98 kg
Package Contents:
• SmartPro SMART500RT1UN 500VA Rack/Tower UPS
• WEBCARDLX Network Management Card
• Micro USB to USB-A
• USB Cable
• DB9 Cable
• EPO Cable
• Rack-Mounting Hardware
• Owner's Manual

Environmentally Friendly: Yes
Country of Origin: China
Limited Warranty: 2 Year
