Tripp Lite SmartRack 12U Wall-Mount Rack Enclosure Cabinet - 12U Rack Height x 19" (482.60 mm) Rack Width - Wall Mountable - Black - (SRW12U)

(No reviews) Write a Review
$451.24
$707.80
$421.65
(You save $29.59 )
SKU: SRW12U
UPC: 037332174451
Availability: Toronto
Weight: 60.00 LBS
Adding to cart… The item has been added
  • Maximum load capacity of 200 lb.
  • Locking steel cabinet vented at sides, front, top and bottom
  • Flow-through ventilation keeps equipment cool
  • Secures 12U of 19 in. rack equipment up to 16.5 in. deep
  • Mounts to wall or rolls on floor (with optional SRCASTER)
    Marketing Information:

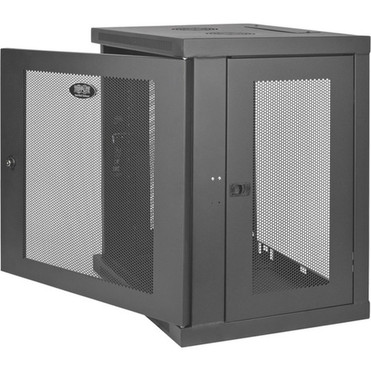

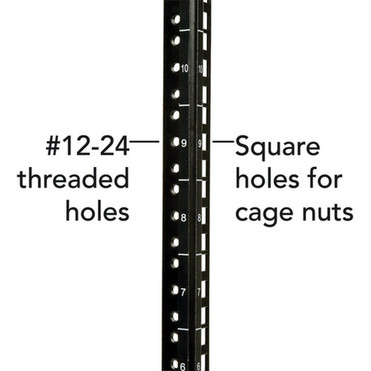

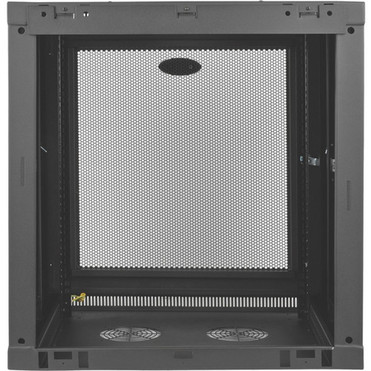

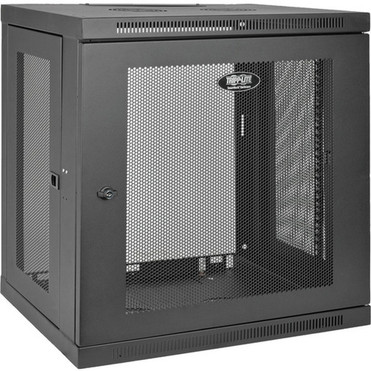

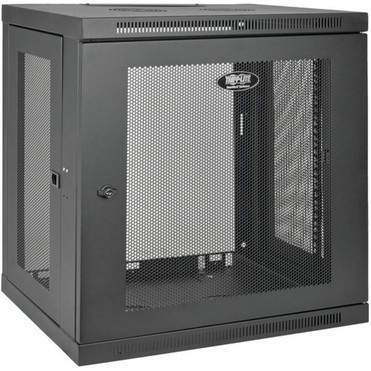

    The SRW12U SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12U comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.


    Form Factor: Wall Mountable
    Product Color: Black
    Maximum Weight Capacity: 90.72 kg
    Height: 25.08" (637.03 mm)
    Width: 23.63" (600.20 mm)
    Depth: 17.69" (449.33 mm)
    Rack Height: 12U
    Rack Width: 19" (482.60 mm)
    Weight (Approximate): 22 kg

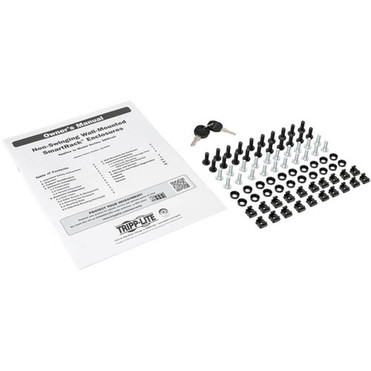

    Package Contents:
    • SmartRack 12U Wall-Mount Rack Enclosure Cabinet
    • 20 x M6 Screws
    • 20 x M6 Cage Nuts
    • 20 x M6 Washers
    • 2 x Keys
    • Owner's Manual

    Environmentally Friendly: Yes
    Environmental Certification: RoHS
    Country of Origin: China
    Limited Warranty: 5 Year

[custom-specifications]

Specifications
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: SRW12U
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite
Product Line: SmartRack
Product Model: SRW12U
Product Name: SmartRack 12U Wall-Mount Rack Enclosure Cabinet
Product Type: Rack Cabinet
Physical Characteristics
Form Factor: Wall Mountable
Product Color: Black
Maximum Weight Capacity: 90.72 kg
Height: 25.08" (637.03 mm)
Width: 23.63" (600.20 mm)
Depth: 17.69" (449.33 mm)
Rack Height: 12U
Rack Width: 19" (482.60 mm)
Weight (Approximate): 22 kg
Miscellaneous
Package Contents:
  • SmartRack 12U Wall-Mount Rack Enclosure Cabinet
  • 20 x M6 Screws
  • 20 x M6 Cage Nuts
  • 20 x M6 Washers
  • 2 x Keys
  • Owner's Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
Warranty
Limited Warranty: 5 Year
