Tripp Lite SRW12UG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet - For Server - 12U Rack Height x 19" mm) x (SRW12UG)

(No reviews) Write a Review
$458.07
$742.20
$442.16
(You save $15.91 )
SKU: SRW12UG
UPC: 037332187307
Availability: Toronto
Weight: 55.00 LBS
Adding to cart… The item has been added
  • Maximum load capacity of 200 lb.

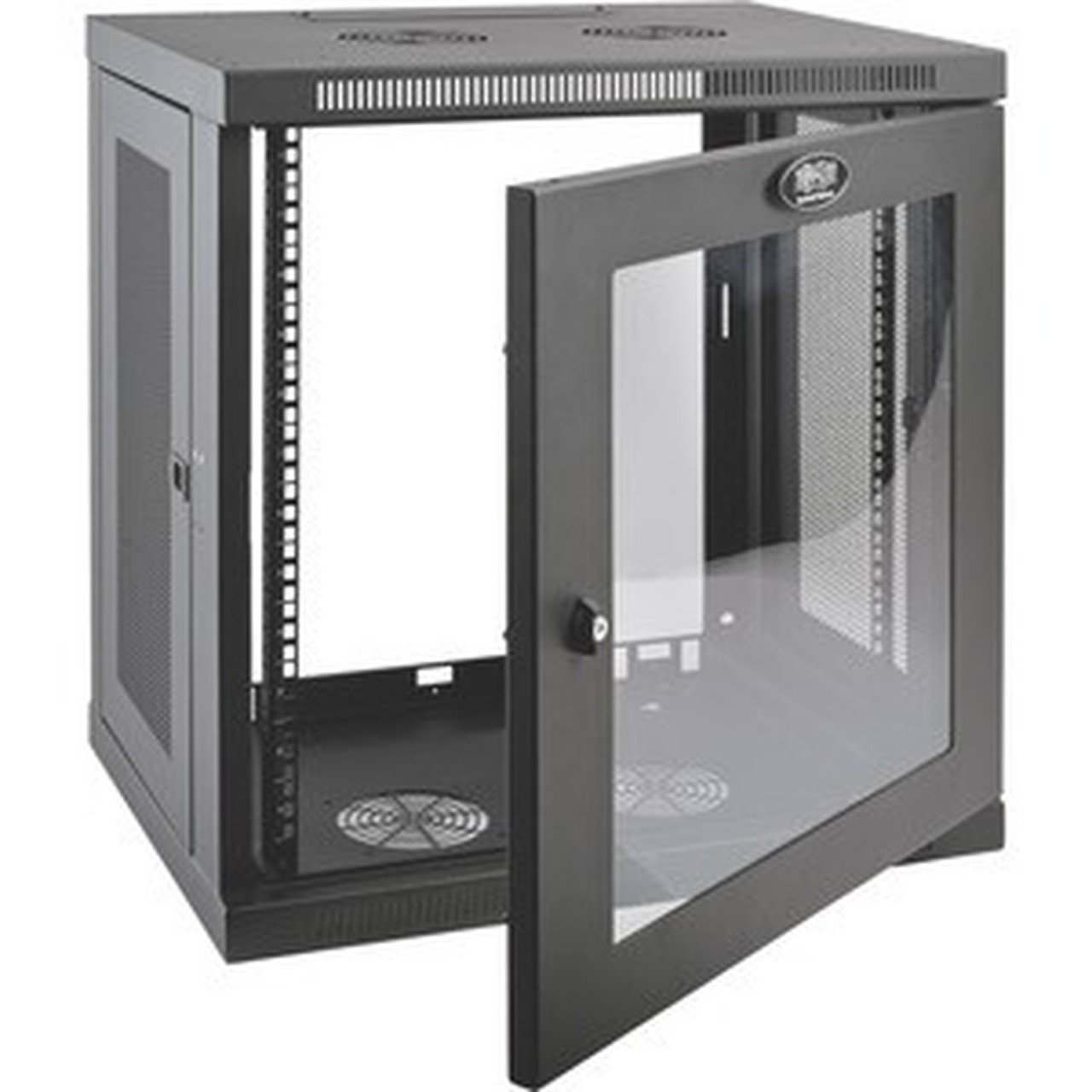

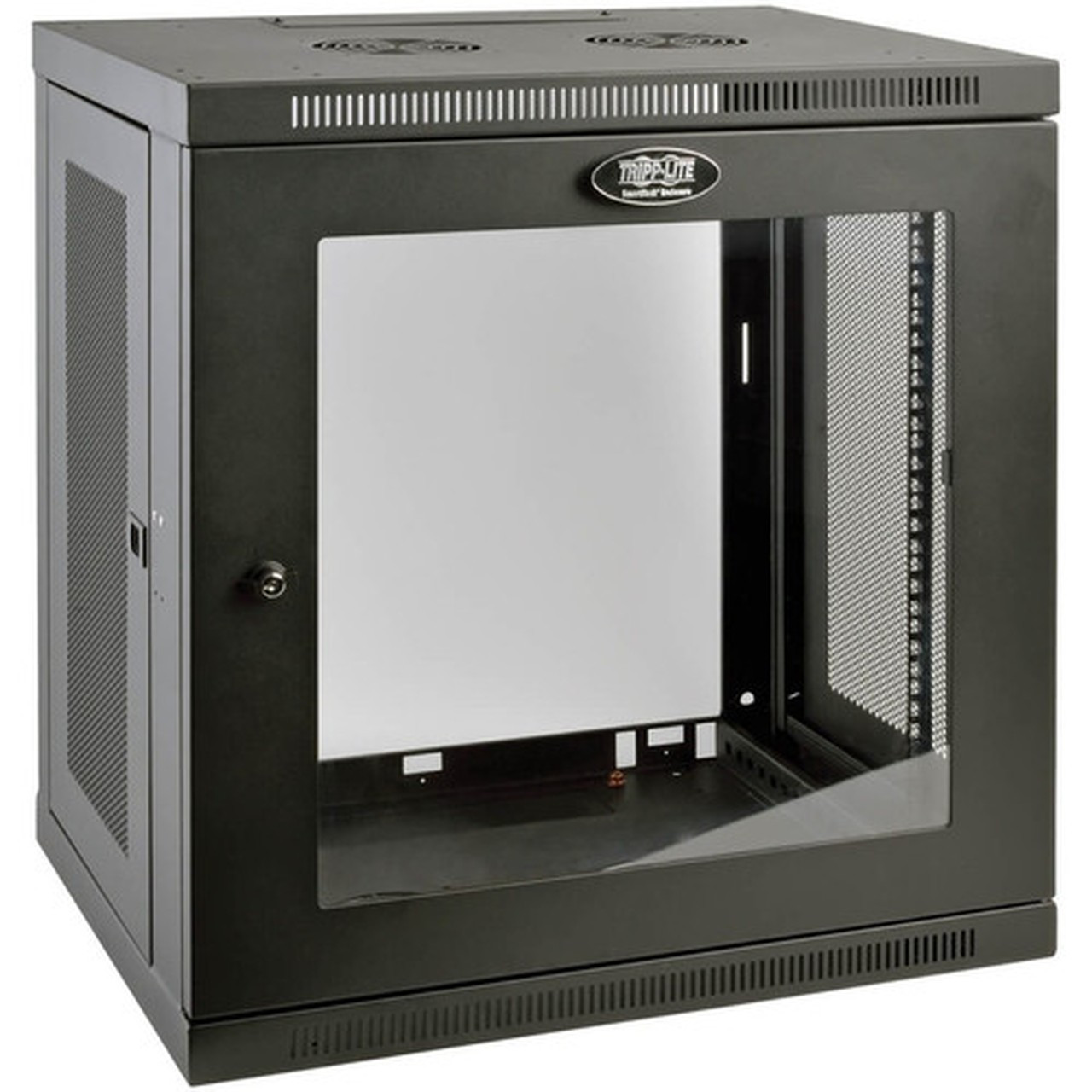

  • Front door includes shatter-resistant clear acrylic window
  • Locking steel cabinet vented at sides, top and bottom
  • Secures 12U of 19 in. rack equipment up to 16.5 in. deep
  • Mounts to wall or rolls on floor (with optional SRCASTER)
    Marketing Information: The SRW12UG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

    The side panels and front door lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

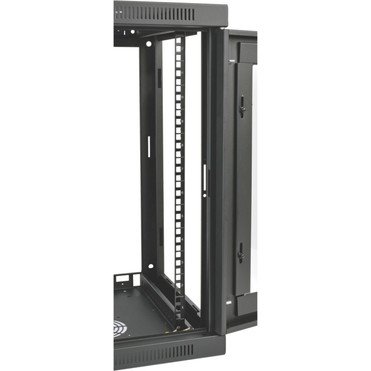

    The SRW12UG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.


    Application/Usage: Server
    Form Factor: Wall Mountable
    Product Color: Black Powder Coat
    Product Material: Steel
    Maximum Weight Capacity: 90.72 kg
    Static/Stationary Weight Capacity: 90.72 kg
    Height: 25.08" (637.03 mm)
    Width: 23.63" (600.20 mm)
    Depth: 17.69" (449.33 mm)
    Rack Height: 12U
    Rack Width: 19" (482.60 mm)
    Rack Depth: 16.50" (419.10 mm)
    Weight (Approximate): 22 kg
    Package Contents:
    • SRW12UG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
    • 18 x M6 Screws
    • 18 x M6 Cage Nuts
    • 18 x M6 Cup Washers
    • 18 x 12-24 Screws
    • Removable Mounting Plate
    • 3 x Mounting Plate Screws
    • 2 x Keys
    • Owner's Manual

    Assembly Required: No
    Environmentally Friendly: Yes
    Country of Origin: China
    Limited Warranty: 5 Year

[custom-specifications]

Specifications
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: SRW12UG
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite
Product Line: SmartRack
Product Model: SRW12UG
Product Name: SRW12UG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
Product Type: Rack Cabinet
Technical Information
Application/Usage: Server
Physical Characteristics
Form Factor: Wall Mountable
Product Color: Black Powder Coat
Product Material: Steel
Maximum Weight Capacity: 90.72 kg
Static/Stationary Weight Capacity: 90.72 kg
Height: 25.08" (637.03 mm)
Width: 23.63" (600.20 mm)
Depth: 17.69" (449.33 mm)
Rack Height: 12U
Rack Width: 19" (482.60 mm)
Rack Depth: 16.50" (419.10 mm)
Weight (Approximate): 22 kg
Miscellaneous
Package Contents:
  • SRW12UG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
  • 18 x M6 Screws
  • 18 x M6 Cage Nuts
  • 18 x M6 Cup Washers
  • 18 x 12-24 Screws
  • Removable Mounting Plate
  • 3 x Mounting Plate Screws
  • 2 x Keys
  • Owner's Manual

Assembly Required: No
Environmentally Friendly: Yes
Country of Origin: China
Warranty
Limited Warranty: 5 Year
