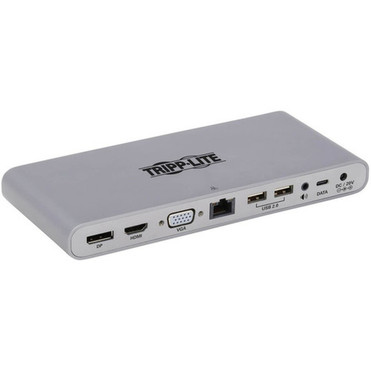

Tripp Lite Thunderbolt 3 Docking Station - for Notebook - 120 W - USB Type C - 2 x USB 2.0 - 3 x USB 3.0 - USB Type-C - Network - HDMI (MTB3-DOCK-02)
- Marketing Information:
- Thunderbolt 3 Docking Station
- Thunderbolt 3 Cable (M/M), 1.6 ft.
- External Power Supply (Input: 100-240V, 50/60 Hz, 3.0A; Output: 20V 6A)
- Owner's Manual
- Apple MacBook
- Lenovo ThinkPad

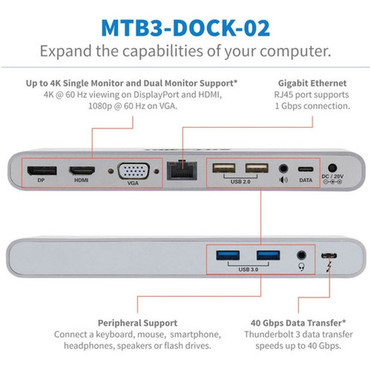

Thunderbolt 3 Docking Station Turns Your MacBook or Other Notebook into a Workstation
This Thunderbolt 3 dock expands the potential of your MacBook or ThinkPad's Thunderbolt 3 port. It's ideal for transmitting digital 4K video to two large displays simultaneously, adding as many as five USB peripherals, recording a podcast, listening to music and connecting to a Gigabit Ethernet network-all at the same time.
Supports DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the included Thunderbolt 3 cable to a source device that supports DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
Thunderbolt 3 Supports Blisteringly Fast 40 Gbps Data Transfer Speeds
The included Thunderbolt 3 cable supports bidirectional speeds up to 40 Gbps, which is eight times faster than USB 3.0, four times faster than Thunderbolt 1 and twice as fast as Thunderbolt 2. With dual 20 Gbps channels moving data both directions at the same time, the MTB3-DOCK-02 is perfectly suited for 4K video streaming and editing on two monitors, as well as transferring large RAW video or CAD files.
DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays
By connecting the included Thunderbolt 3 cable to a source that supports DisplayPort MST Mode, you may connect two displays simultaneously, so long as one of them is connected to the DisplayPort (DP) video port. Connect a DP monitor and an HDMI monitor or a DP monitor and a VGA monitor at the same time. This allows you to display the same image on both monitors, extend your host desktop across both with different windows open on each, or combine both into one large display as a video wall.
Transmits Crystal-Clear 4K Video and Digital Audio
The HDMI and DP outputs support true 4K resolutions up to 4096 x 2160 at 60 Hz. The VGA output supports HD resolutions up to 1920 x 1080 (1080p) at 60 Hz. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications.
USB Ports Connects Keyboards, Thumb Drives and Other USB Peripherals
Four USB-A hub ports and one USB-C port accept USB peripherals, such as flash drives, mice, keyboards, external hard drives and printers. The USB-C and two USB-A ports support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps (10 times faster than USB 2.0) and are backward compatible with USB 2.0 and USB 1.1 devices. The other two USB-A ports support USB 2.0 speeds of 480 Mbps.
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Connects Stereo Audio Equipment for Recording and Playback
This Thunderbolt 3 docking station offers two 3.5 mm mini stereo jacks, convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music and record the latest episode of your podcast.
Included Thunderbolt 3 Cable Attaches in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible Thunderbolt 3 male connector plugs into its port in either direction for an instant connection every time.
Connectivity Technology: WiredDevice Supported: NotebookHost Interface: USB Type CAudio Line Out: YesNumber of USB 2.0 Ports: 2Number of USB 3.0 Ports: 3USB Type-C: YesUSB Type-C Detail: (1) USB-C - USB 3.2 Gen 1 (5 Gbps), (1) USB C (FEMALE)Network (RJ-45): YesVGA: YesDisplayPort: YesMicrophone: YesHDMI: YesThunderbolt: YesMaximum Power Supply Wattage: 120 WHeight: 0.87" (22.10 mm)Width: 3.46" (87.88 mm)Depth: 7.68" (195.07 mm)Weight (Approximate): 430 gPackage Contents:[custom-specifications]
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: MTB3-DOCK-02
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite
Product Name: Thunderbolt 3 Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook
Interfaces/Ports
Host Interface: USB Type C
Audio Line Out: Yes
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 3
USB Type-C: Yes
USB Type-C Detail: (1) USB-C - USB 3.2 Gen 1 (5 Gbps), (1) USB C (FEMALE)
Network (RJ-45): Yes
VGA: Yes
DisplayPort: Yes
Microphone: Yes
HDMI: Yes
Thunderbolt: Yes
Power Description
Maximum Power Supply Wattage: 120 W

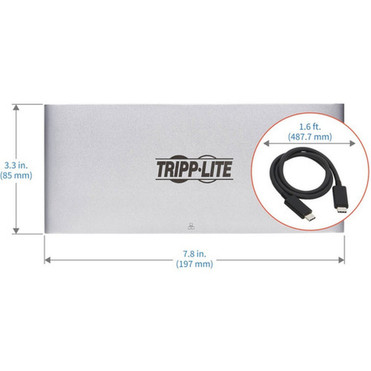

Physical Characteristics
Height: 0.87" (22.10 mm)
Width: 3.46" (87.88 mm)
Depth: 7.68" (195.07 mm)
Weight (Approximate): 430 g
Miscellaneous
Package Contents:
- Thunderbolt 3 Docking Station
- Thunderbolt 3 Cable (M/M), 1.6 ft.
- External Power Supply (Input: 100-240V, 50/60 Hz, 3.0A; Output: 20V 6A)
- Owner's Manual
Compatibility: Notebooks
- Apple MacBook
- Lenovo ThinkPad
Environmentally Friendly: Yes
Country of Origin: China
Warranty
Limited Warranty: 3 Year
